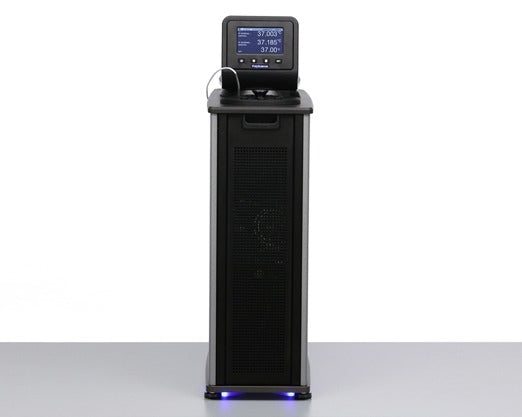

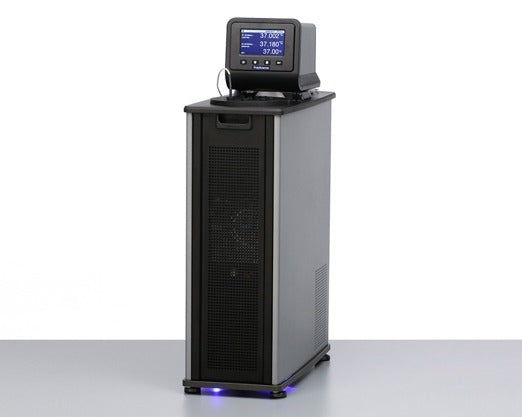

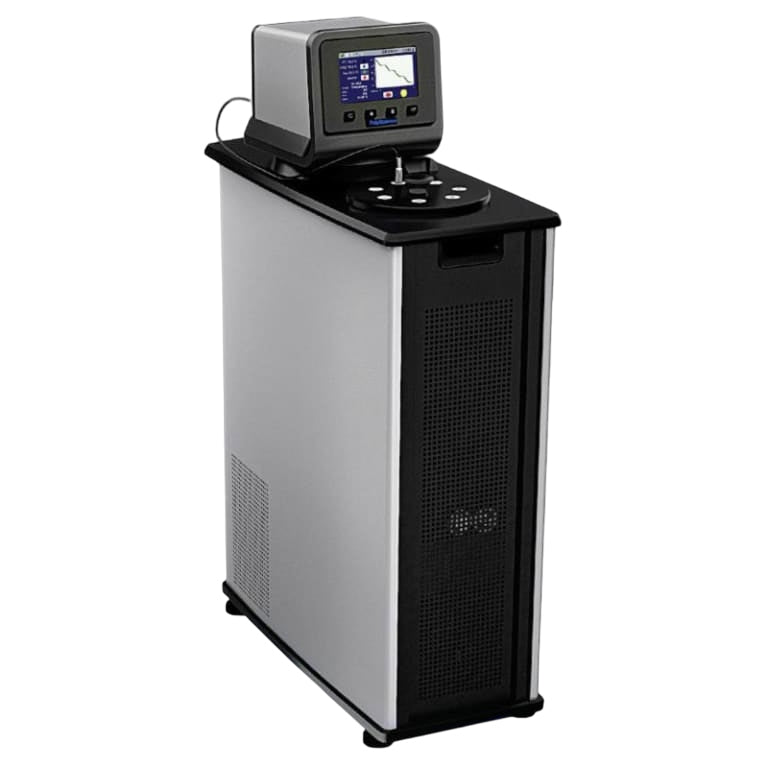

PolyScience AP15RCAL-A11B 15L Refrigerated Calibration Bath, Advanced Programmable
The PolyScience AP15RCAL-A11B 15L Refrigerated Calibration Bath delivers superior precision for calibration, metrology, and quality control applications. With a broad working temperature range from -30°C to 200°C, this advanced programmable bath supports up to six temperature probes and includes industry-leading features such as a 4.3” SmartTouch™ interface, multilingual control, and integrated communication ports for external connectivity.
Key Features:
- Accommodates up to 6 temperature devices (2 to 8 mm diameter)
- Working temperature range: -30°C to 200°C (-22°F to 392°F)

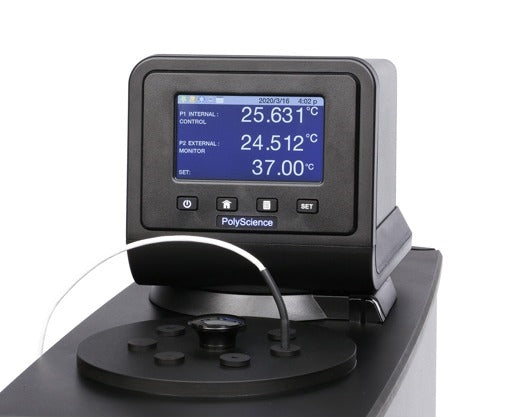

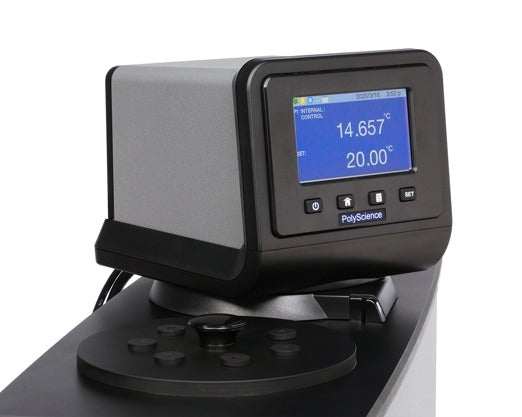

- Intuitive 4.3" SmartTouch™ display with 180° Swivel 180™ controller
- Multilingual interface with 11 language options
- Event scheduling, real-time clock, and 10-day temperature trend display
- 10-point calibration capability
- DIN 12876-1 Class III (FL) safety compliance for flammable fluids
- Cool Command™ modulated refrigeration + WhisperCool® system
- On-board connectivity: USB-A/B, Ethernet, RS232/485, remote on/off, external probe
- Reservoir drain and washable air filter
- Includes Enhanced Performance Hardware & Software package
Included with the Unit
- Power Cord
- Operator’s Guide
- Manufacturer’s Documentation
- 2-Year Manufacturer’s Warranty
Specifications
| Parameter | Value |
|---|---|
| Working Temperature Range (°C) | -30 to 200°C |
| Working Temperature Range (°F) | -22 to 392°F |
| Nominal Cooling Capacity @ +20°C | 505 W |
| Reservoir Capacity (Liters) | 15 |
| Reservoir Capacity (Gallons) | 3.96 |
| Working Access (Diameter x Length) | 4.6 x 11 in (11.7 x 28 cm) |
| Temperature Stability | ±0.005°C |
| Display | 4.3" SmartTouch Touchscreen |
| Display Resolution (Set) | 0.01 |
| Display Resolution (Read) | 0.001 |
| Pump Type | Pressure/Suction |
| Pump Speed | Variable |
| Reservoir/Tank Material | Stainless Steel |
| Reservoir Cover | Included |
| DuraTop™ | Yes |
| Flammability Class | DIN 12876-1 Class III (FL) |
| Refrigerant | R452A |
| Environmental Compliance | RoHS, WEEE |
| Maximum Ambient Temperature (°C/°F) | 35°C / 95°F |
| Included Software | PolyTemp Viewer, TDMS Viewer, LabVIEW VIs, Time/Temp Program Generator, PolyTemp Remote (iPhone) |
| Shipping Weight | 100 lbs / 45.3 kg |
