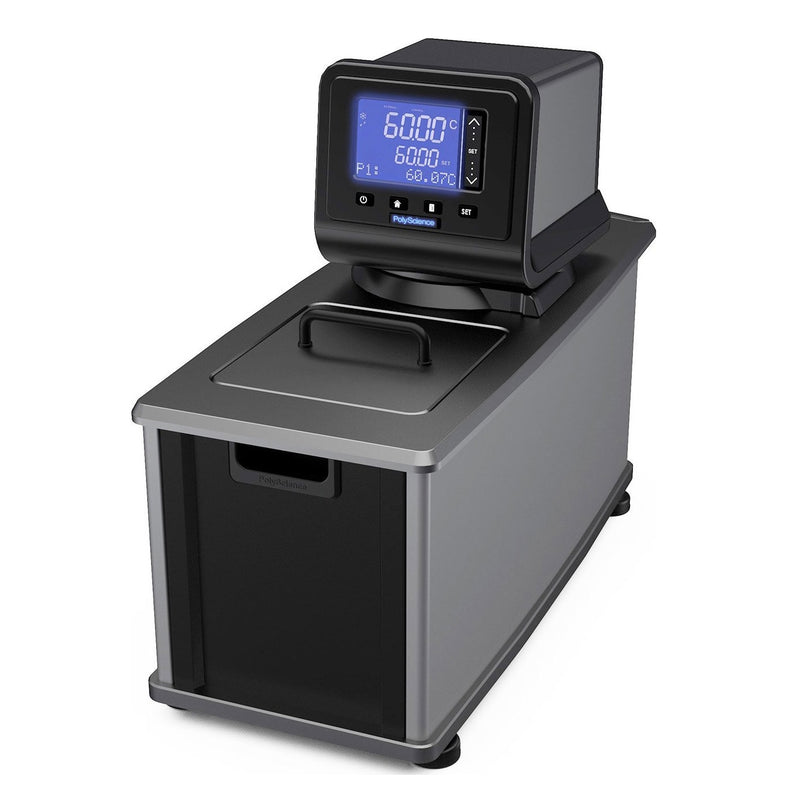

PolyScience Heated Circulators – Precision Temperature Control for Laboratory and Industrial Applications
PolyScience Heated Circulators are engineered for the precise temperature control of compatible fluids across a broad range of applications, from life science and analytical chemistry to industrial quality control. Available in reservoir capacities of 7L, 15L, 20L, and 28L, and offering temperature ranges from Ambient +10°C up to 200°C, these units provide reliable, accurate thermal regulation with intuitive user interfaces and durable stainless steel construction.
Key Features:
- Temperature Stability: From ±0.07°C to as precise as ±0.005°C depending on the model
- Working Temperature Range: Ambient +10°C to 135°C, 170°C, or 200°C
- Pump Type: Pressure or pressure/suction with variable or fixed speeds
- Display Options: Basic LCD, Advanced 3.75” Touch-Pad, or 4.3” SmartTouch Touchscreen with multi-language support (up to 11 languages)
- Reservoir Construction: Stainless steel with included reservoir cover and DuraTop™ (on select models)
- Working Access (L x W x D): Varies by model – from compact 6.18 x 5.59 x 5 in to spacious 12.35 x 14.13 x 5.5 in
- Connectivity: USB-A/B, Ethernet, RS-232/485, and external temperature probe (varies by controller type)
- Control Capabilities: Standard Digital, Advanced Digital, and Advanced Programmable with event scheduling, trend logging, and multi-point calibration
- Environmental Compliance: ROHS & WEEE
Included with All Units
- Power cord
- Operator’s guide
- Manufacturer’s documentation
- 2-Year Warranty
- Note: Advanced Programmable models include USB-A to RS232 harness due to inactive USB-B port.
Specifications
| Model | Capacity (L) | Controller Type | Max Temp (°C) | Stability (°C) | Display | Set Res. | Read Res. | Pump Type | Pump Speed | Flame Class | Ship Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AD07H200-A11B | 7 | Advanced Digital | 200 | ±0.01 | 3.75" Touch-Pad LCD | 0.01 | 0.01 | Pressure/Suction | Variable | III (FL) | 42.00 |

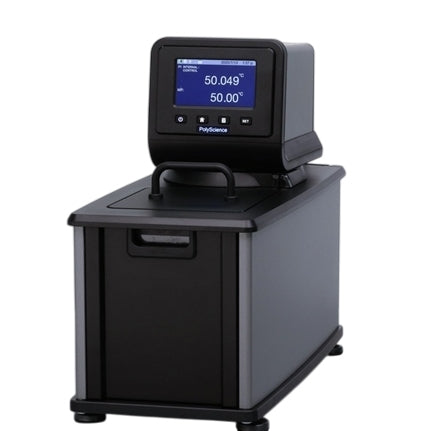

| AP07H200-A11B | 7 | Advanced Programmable | 200 | ±0.01 | 4.3" SmartTouch | 0.01 | 0.001 | Pressure/Suction | Variable | III (FL) | 42.00 |
| MX07H135-A11B | 7 | MX | 135 | ±0.07 | 3.25" LCD | 0.1 | 0.1 | Pressure | One | I (NFL) | 36.00 |

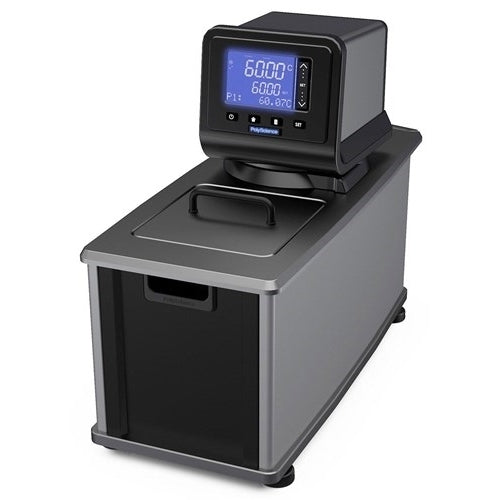

| SD07H170-A11B | 7 | Standard Digital | 170 | ±0.04 | 3.75" Touch-Pad LCD | 0.1 | 0.1 | Pressure | Two | I (NFL) | 42.00 |

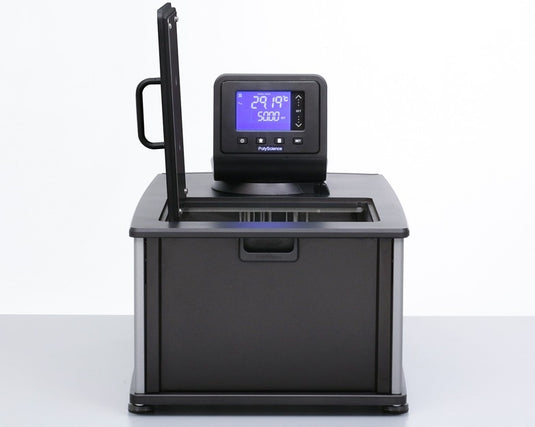

| AD15H200-A11B | 15 | Advanced Digital | 200 | ±0.01 | 3.75" Touch-Pad LCD | 0.01 | 0.01 | Pressure/Suction | Variable | III (FL) | 62.00 |

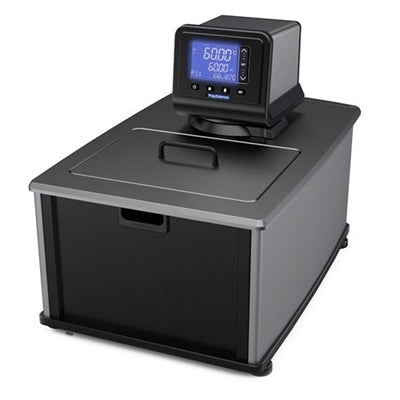

| AP15H200-A11B | 15 | Advanced Programmable | 200 | ±0.005 | 4.3" SmartTouch | 0.01 | 0.001 | Pressure/Suction | Variable | III (FL) | 62.00 |
| MX15H135-A11B | 15 | MX | 135 | ±0.07 | 3.25" LCD | 0.1 | 0.1 | Pressure | One | I (NFL) | 56.00 |
| SD15H170-A11B | 15 | Standard Digital | 170 | ±0.04 | 3.75" Touch-Pad LCD | 0.1 | 0.1 | Pressure | Two | I (NFL) | 62.00 |

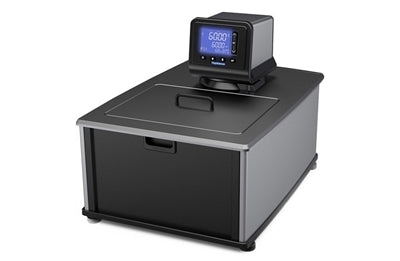

| AD20H200-A11B | 20 | Advanced Digital | 200 | ±0.01 | 3.75" Touch-Pad LCD | 0.01 | 0.01 | Pressure/Suction | Variable | III (FL) | 70.00 |

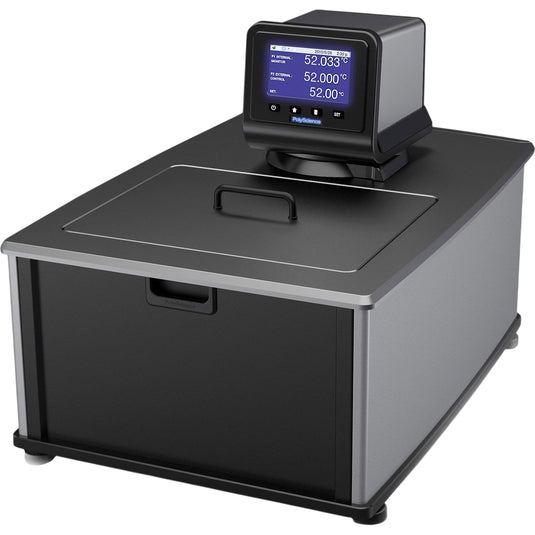

| AP20H200-A11B | 20 | Advanced Programmable | 200 | ±0.005 | 4.3" SmartTouch | 0.01 | 0.001 | Pressure/Suction | Variable | III (FL) | 70.00 |
| MX20H135-A11B | 20 | MX | 135 | ±0.07 | 3.25" LCD | 0.1 | 0.1 | Pressure | One | I (NFL) | 64.00 |

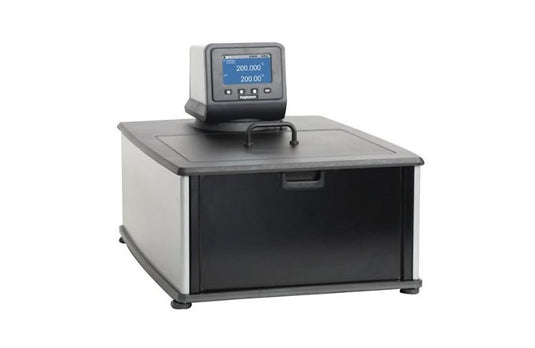

| SD20H170-A11B | 20 | Standard Digital | 170 | ±0.04 | 3.75" Touch-Pad LCD | 0.1 | 0.1 | Pressure | Two | I (NFL) | 70.00 |
| AD28H200-A11B | 28 | Advanced Digital | 200 | ±0.01 | 3.75" Touch-Pad LCD | 0.01 | 0.01 | Pressure/Suction | Variable | III (FL) | 82.00 |

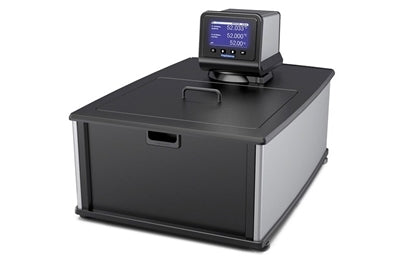

| AP28H200-A11B | 28 | Advanced Programmable | 200 | ±0.005 | 4.3" SmartTouch | 0.01 | 0.001 | Pressure/Suction | Variable | III (FL) | 82.00 |
| SD28H170-A11B | 28 | Standard Digital | 170 | ±0.04 | 3.75" Touch-Pad LCD | 0.1 | 0.1 | Pressure | Two | I (NFL) | 82.00 |
