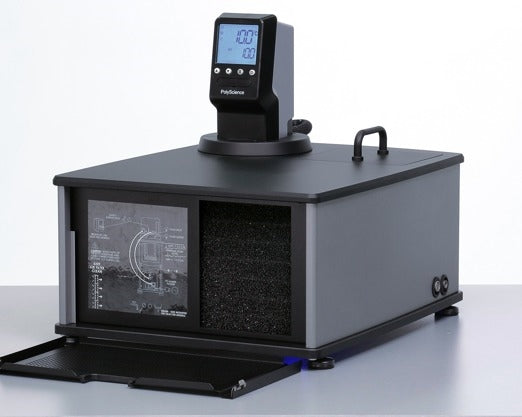

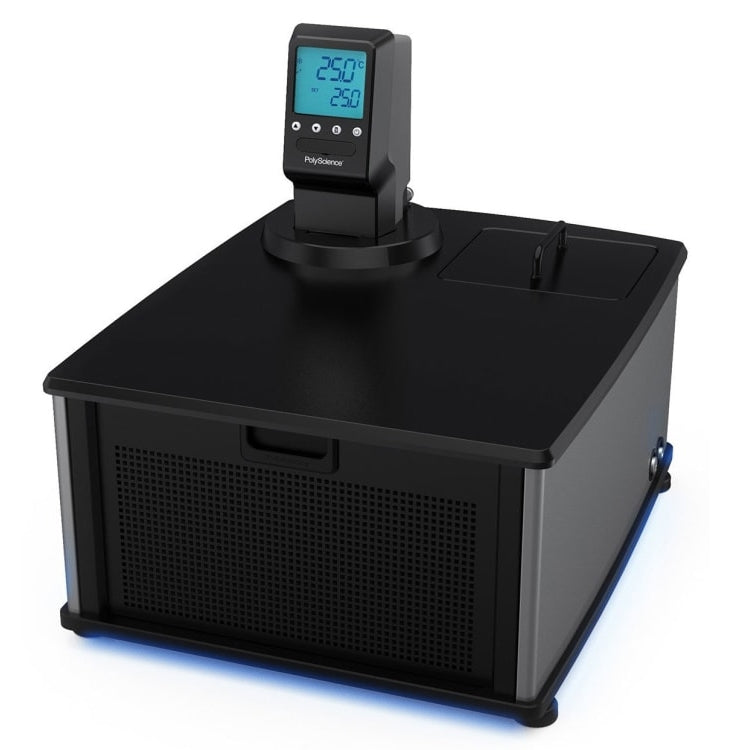

Polyscience MX7LR-20-A11B 7L Low-Profile Refrigerated Circulator offers precise and reliable temperature control from -20°C to +135°C, combining compact design with intuitive MX controller functionality. With a cooling capacity of 200 W at +20°C and a powerful integrated pump, this circulator supports both internal and external circulation applications in laboratory and industrial settings.
This model features a stainless steel reservoir, single-speed pressure pump, and a user-friendly interface with simultaneous display of actual and set point temperatures. The 3.25-inch LCD screen includes large, universal icons and English prompts for straightforward operation. Additional features like single-point calibration, a DuraTop insulated cover, and enclosed pump housing ensure safety, usability, and ease of maintenance.
The compact, low-profile design is perfect for benchtop use, and the environmentally conscious construction meets RoHS and WEEE standards. Whether you're regulating temperature-sensitive experiments or industrial processes, the MX7LR-20-A11B delivers accuracy, control, and convenience.
Included
- Polyscience MX7LR-20-A11B Refrigerated Circulator
- Power Cord
- Operator's Guide
- Manufacturer's Documentation
- 2 Year Manufacturer's Warranty
Specifications
| Controller Type | MX |
| Working Temperature Range | -20°C to 135°C |
| Temperature Stability | ±0.07°C |
| Cooling Capacity at +20°C | 200 W |
| Reservoir Capacity | 7 L / 1.85 gal |
| Reservoir Material | Stainless Steel |
| Working Access (L x W x D) | 6.18 x 5.59 x 5 in |
| Display | 3.25" LCD |
| Display Resolution (Set/Read) | 0.1°C / 0.1°C |
| Pump Type | Pressure |
| Pump Speed | One |
| Maximum Ambient Temperature | 35°C / 95°F |
| Refrigerant | R134a |
| Environmental Compliance | RoHS, WEEE |
| Overall Dimensions (L x W x H) | 21.3 x 8.7 x 25.4 in |
| Shipping Weight | 84 lb / 38.1 kg |
| Electrical | 120V, 60Hz |
