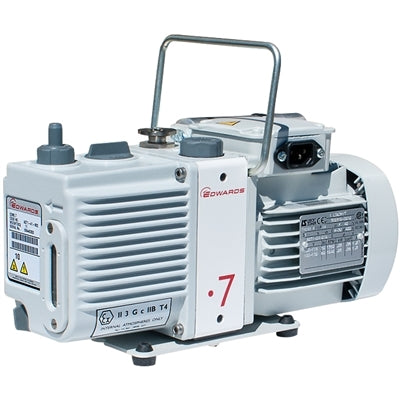

Edwards E2M0.7 Vacuum Pump is a robust, high-performance rotary vane vacuum pump designed to meet the demanding needs of laboratories and light industrial environments. Renowned for its high ultimate vacuum, rapid pumping speed, and quiet operation, this pump has become the industry standard for precision applications.
Key Features:
- Ultimate Vacuum: 3.0 x 10-3 mbar (2.3 x 10-3 Torr)
- Inlet Connection: NW10 flange for easy integration
- Displacement: up to 1.1 m3/h (0.6 ft3/min) at 60 Hz
- Quiet operation, only 43 dB(A) or as low as 36 dB(A) with optional acoustic enclosure
- Efficient handling of water vapor with a pumping rate of 8 g/h
- Flexible freestanding design driven by a single or three-phase motor
- Durable construction with a maximum operating temperature of 40°C
- Compact and lightweight at just 10 kg (22 lbs) without oil
- Includes removable 11 mm nozzle outlet for adaptable system connections
Included Items
- Edwards Ultragrade Performance 15 Oil
- Power Cord
- Operator’s Manual
- Manufacturer’s Documentation
- 1-Year Manufacturer’s Warranty
Technical Specifications
| Displacement 50 Hz | 0.9 m3/h (0.5 ft3/min) |
| Displacement 60 Hz | 1.1 m3/h (0.6 ft3/min) |
| Pumping Speed (50 Hz) | 0.75 m3/h (0.4 ft3/min) |
| Pumping Speed (60 Hz) | 0.95 m3/h (0.5 ft3/min) |
| Ultimate Vacuum (No Gas Ballast) | 3.0 x 10-3 mbar |
| Ultimate Vacuum (With Gas Ballast) | 2.0 x 10-1 mbar |
| Inlet Connection | NW10 flange |
| Outlet Connection | 11 mm nozzle (removable from 3/8" BSP tapped hole) |
| Max Outlet Pressure | 0.5 bar gauge (7 psig) |
| Max Water Vapor Inlet Pressure | 15 mbar (11 Torr) |
| Water Vapor Pumping Rate | 8 g/h |
| Motor Power | 0.09 kW |
| Rotation Speed | 1400 / 1700 rpm (50/60 Hz) |
| Noise Level | 43 dB(A) (36 dB(A) with acoustic enclosure) |
| Oil Capacity | 0.2 to 0.28 liters |
| Recommended Oil | Ultragrade 15 |
| Operating Temp Range | 12 - 40 °C |
| Weight (without oil) | 10 kg (22 lbs) |
| Electrical Requirements | 100-120V, 50/60 Hz, 1Ph (230V available upon request) |
