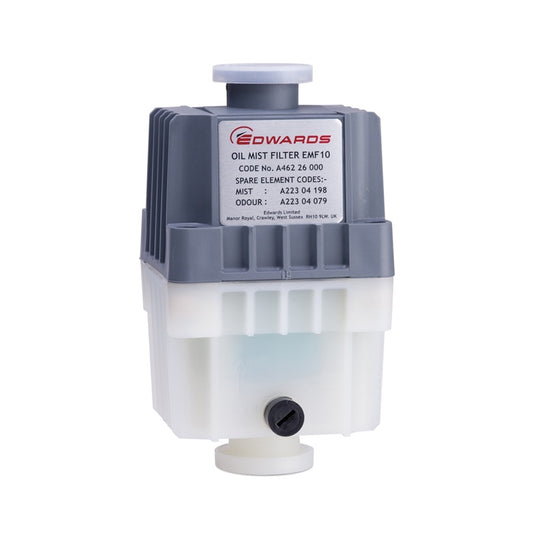

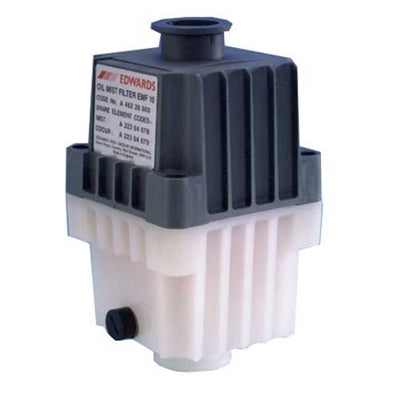

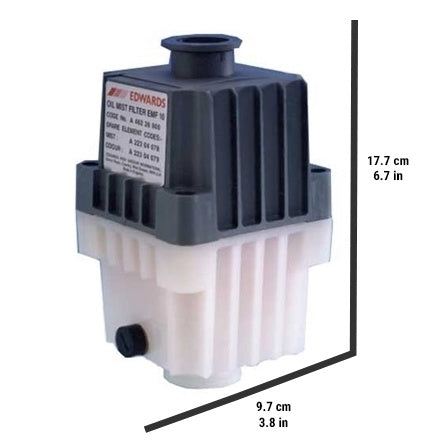

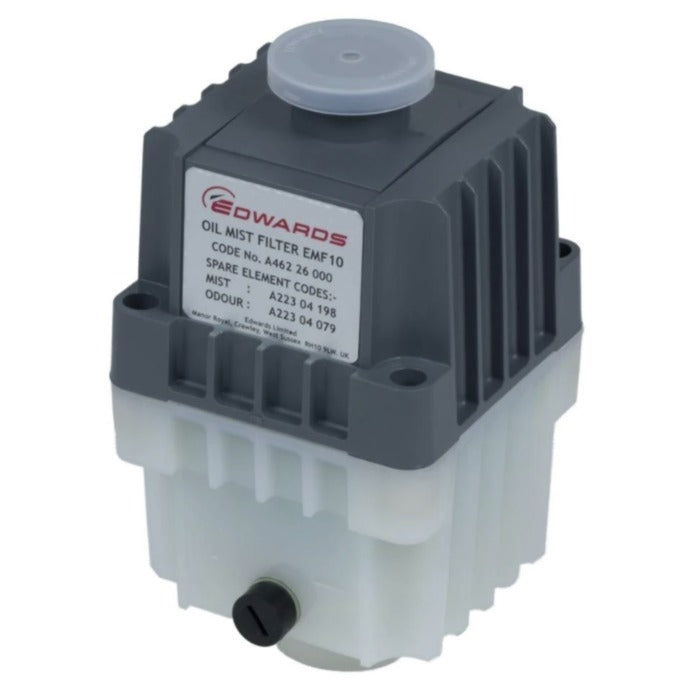

Edwards EMF10 Oil Mist Filter NW25 is specifically engineered for use with Edwards RV3, RV5, and RV8 rotary vacuum pumps. This filter provides exceptional oil mist and vapor trapping performance, ensuring a cleaner laboratory or industrial environment while extending the life of your vacuum system.
Key Features:
- Efficiently separates and traps oil mist and odors from oil-sealed rotary vacuum pumps
- 99.999% DOP tested efficiency and azide proof
- Oil droplets captured drain into an internal reservoir for easy disposal
- Semi-transparent lower body allows simple monitoring of oil levels
- Lightweight at only 0.5 kg, making it easy to handle and install
- Constructed from robust crystalline nylon for excellent durability
- Designed with NW25 flange size, compatible with Edwards RV3, RV5, and RV8 pumps
Included Items
- Edwards EMF10 Oil Mist Filter NW25
- NW25 Clamp
- Centering Ring
- O-Ring
- NW25 to 3/4 inch BSP Adapter
- Manufacturer's Documentation
- 1-Year Manufacturer’s Warranty
Specifications
| Rated Flow | 12 m³/h |
| Maximum Back Pressure | 12 psig (1.8 bar abs, 1.8 x 105 Pa) |
| Relief Pressure | 20 psig (2.37 bar abs, 2.37 x 105 Pa) |
| Mass | 0.5 kg |
| Filter Body Material | Crystalline Nylon |
| Flange Size | NW25 |
