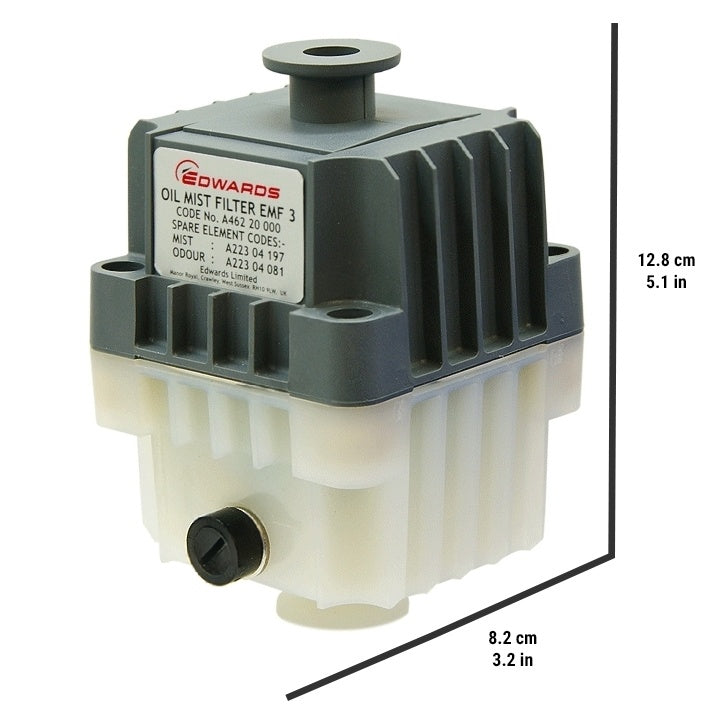

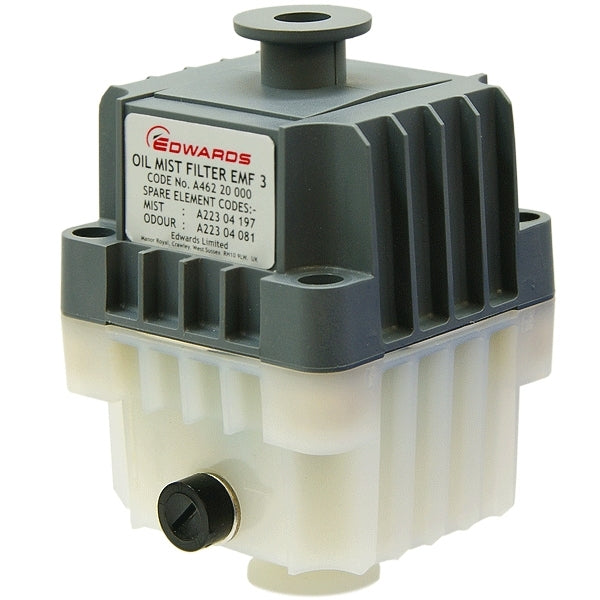

Edwards EMF3 Oil Mist Filter NW10 is designed to maintain a cleaner, safer work environment by efficiently capturing oil mist and neutralizing odors from oil-sealed rotary vacuum pumps. Lightweight yet robust, this filter protects both your laboratory and equipment from contamination.
Key Features:
- Rated Flow: 3 m³/h
- Maximum Back Pressure: 12 psig (1.8 bar absolute)
- Effective separation and trapping of oil mist and odors
- Two-part injection molded body houses a fiber composite oil mist filter and an activated carbon odor filter
- Oil droplets drain into a reservoir for cleaner operation and easier maintenance
- Constructed from durable crystalline nylon for long-lasting use
- Lightweight with a mass of only 0.315 kg for easy handling
- Designed with NW10 flange for compatibility with standard systems
Included Items
- NW10 Clamp
- Centering Ring
- O-Ring
- NW10 to 3/8 inch BSP Adaptor
- Manufacturer’s Documentation
- 1-Year Manufacturer’s Warranty
Specifications
| Rated Flow | 3 m³/h |
| Maximum Back Pressure | 12 psig (1.8 bar absolute, 1.8 × 105 Pa) |
| Relief Pressure | 20 psig (2.37 bar absolute, 2.37 × 105 Pa) |
| Mass | 0.315 kg |
| Filter Body Material | Crystalline Nylon |
| Flange Size | NW10 |
