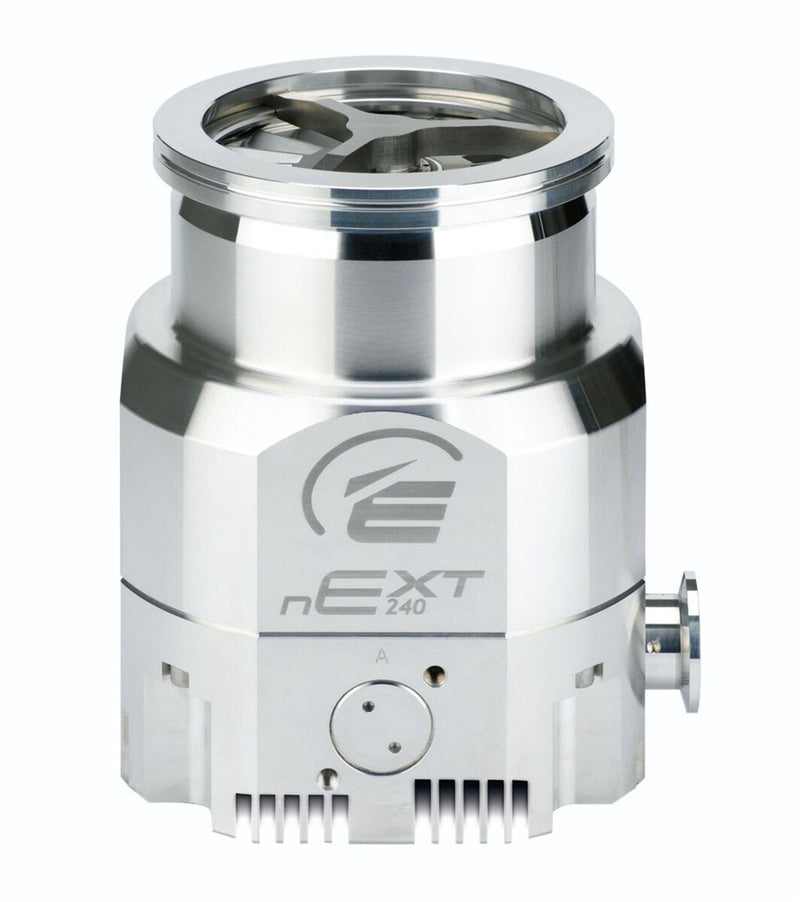

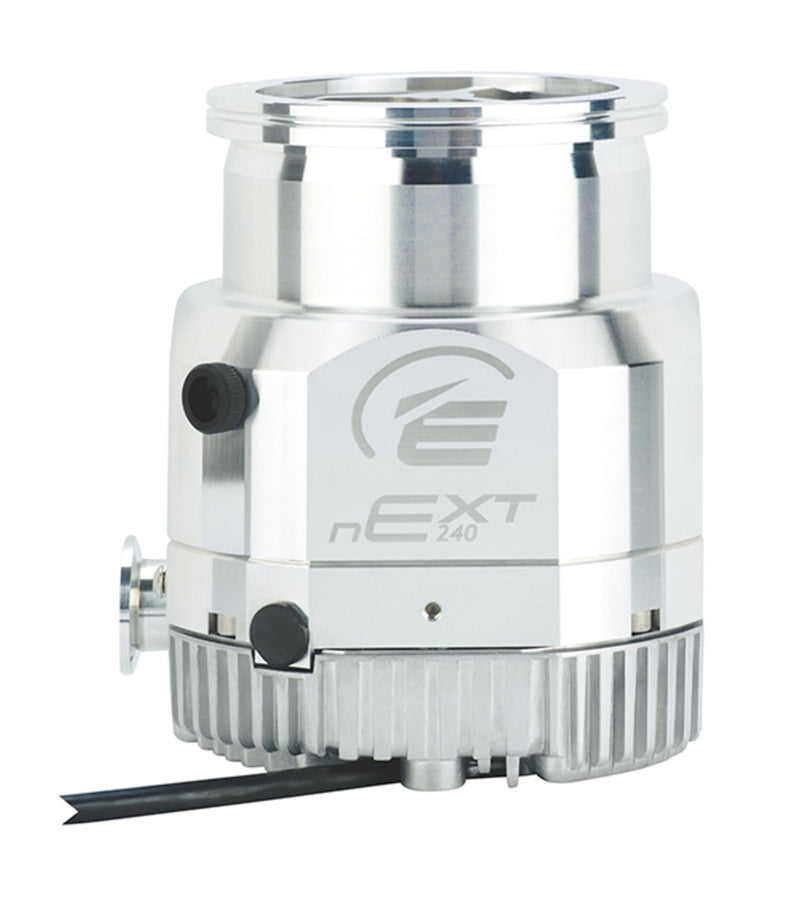

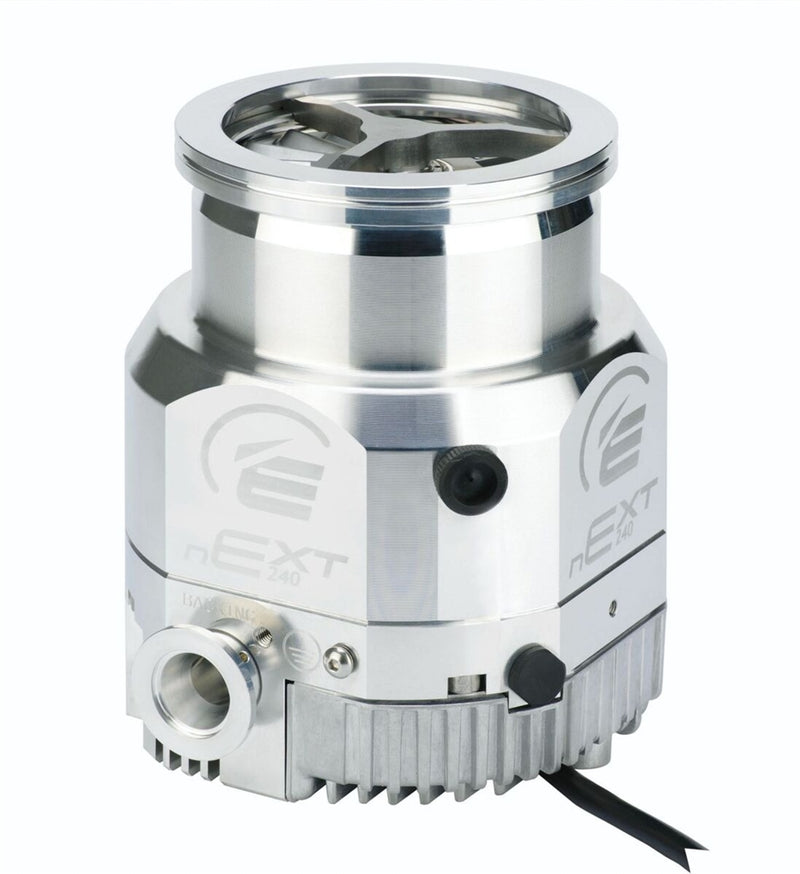

Edwards nEXT240T HC - ISO100 160W Turbomolecular Pump is an advanced hybrid bearing turbomolecular pump engineered for demanding vacuum applications requiring high performance and flexibility. Combining oil-lubricated ceramic and dry magnetic bearings, the nEXT240T offers superior pumping speed, compression, and serviceability.
Key Features:
- Ultimate Vacuum: <6 × 10-8 mbar
- Pumping Speed: 0.240 m³/s for nitrogen
- DN100CF Inlet Connection for versatile system integration
- Hybrid bearing design (oil-lubricated ceramic lower bearing + dry permanent magnetic upper bearing)
- Multiple drag stages for improved compression and higher backing pressure tolerance
- Field-serviceable oil cartridge and bearings require minimal tools
- Direct I/O or serial control with compatibility for TAG and TIC controllers
- Patented bearing suspension system minimizes vibration and noise transfer to your vacuum system
- Purge port enables safe operation with specialized process gases
- Permanent magnet upper bearing ensures a hydrocarbon-free environment
- Ideal for high-energy physics, electron microscopy, thin film research, and demanding industrial processes
Included Items
- Edwards nEXT240T HC - ISO100 160W Turbomolecular Pump
- Manufacturer’s Documentation
- 1-Year Manufacturer’s Warranty
Specifications
| Total Rated Power | 160 W |
| Pumping Speed (N₂) | 0.240 m³/s |
| Pumping Speed (He) | 0.230 m³/s |
| Pumping Speed (H₂) | 0.165 m³/s |
| Ultimate Vacuum | <6 × 10-8 mbar |
| Max Backing Pressure | 20 mbar |
| Rotational Speed | 1000 Hz |
| Ramp Up Time | 150 s |
| Compression Ratio (N₂) | 1 × 10¹¹ |
| Compression Ratio (He) | 1 × 10⁶ |
| Compression Ratio (H₂) | 15,000 |
| Gas Ballast Purge Flow | 0.045 Pa·m³/s |
| Inlet Connection | DN100CF |
