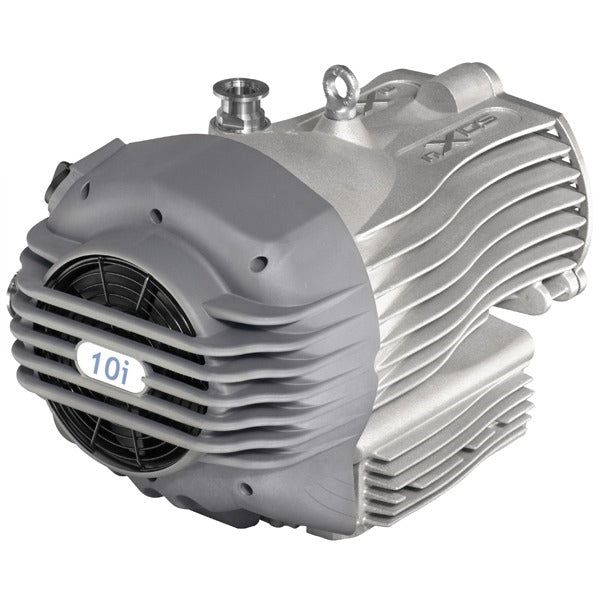

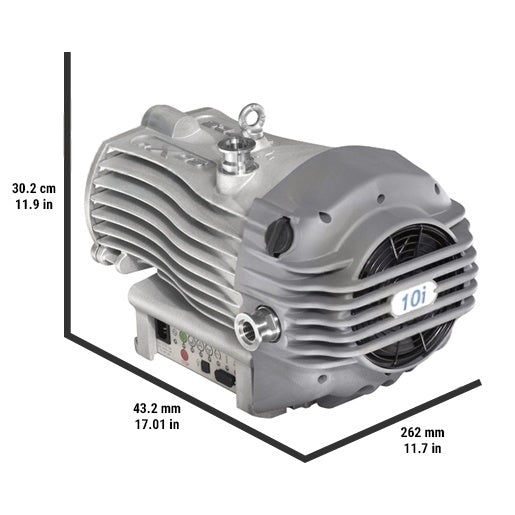

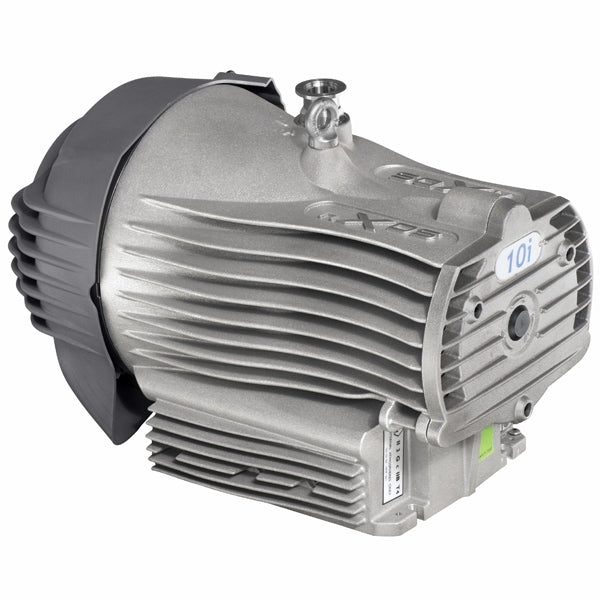

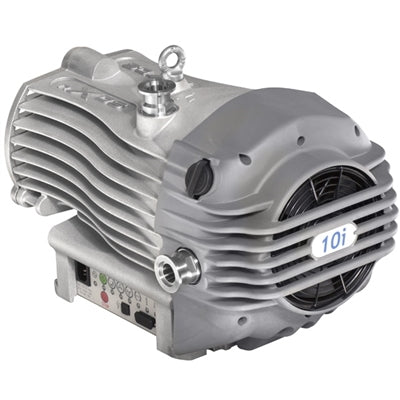

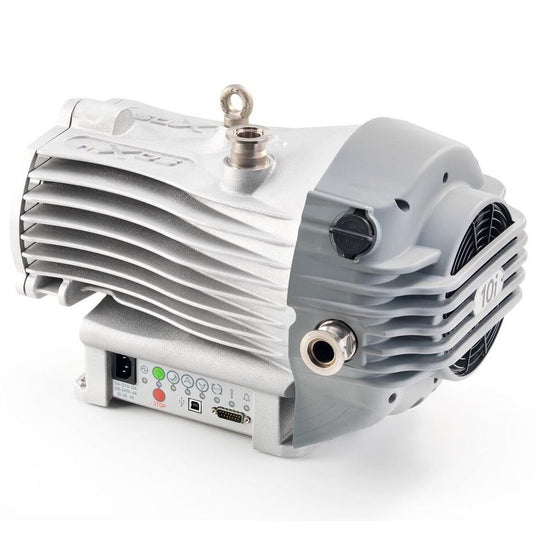

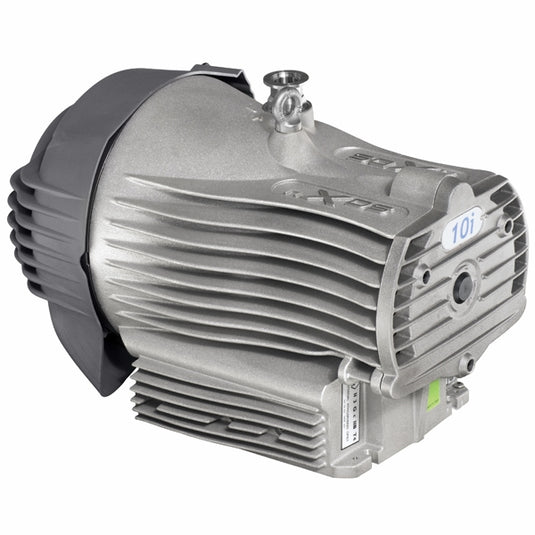

Edwards nXDS10i Dry Scroll Pump offers industry-leading vacuum performance, low power consumption, and quiet operation, making it the ideal companion for turbomolecular pumps and demanding laboratory or industrial applications. Engineered with advanced features, the nXDS10i ensures clean, oil-free vacuum generation with outstanding reliability and easy maintenance.
Key Features:
- Clean, oil-free vacuum with bearing shield ensuring complete separation from process gases and lubrication
- Smart motor drive with automatic voltage sensing, consistent global performance, and remote start/stop capability
- High flow gas ballast allows pumping of vapours (including water) up to 240 g/h
- Simple, single-sided scroll design enables maintenance in minutes, reducing ownership costs and maximizing uptime
- Enhanced efficiency models offer up to 20% lower peak power draw during initial pump down
- Integrated inverter drive optimizes performance worldwide
- Low noise operation—up to 20 times quieter than comparable pumps
- Ideal for use with turbomolecular pumps, analytical instruments, and general vacuum processes
Included Items
- Edwards nXDS10i Dry Scroll Pump
- Power Cord
- Operator's Manual
- Manufacturer's Documentation
- 1-Year Manufacturer’s Warranty
Specifications
| Nominal Rotational Speed | 1800 rpm |
| Displacement | 12.7 m³/h (7.5 ft³/min) |
| Peak Pumping Speed | 11.4 m³/h (6.7 ft³/min) |
| Ultimate Vacuum (Total Pressure) | 0.007 mbar (0.005 Torr) |
| Minimum Standby Speed | 1200 rpm |
| Speed Control Resolution | 1% |
| Pumping Speed at Minimum Speed | 7.5 m³/h |
| Max Continuous Inlet Pressure | 200 mbar |
| Motor Power | 280 W (1-ph) |
| Power Connector | IEC EN60320 C13 |
| Recommended Fuse | 10A, 250Vac rms |
| Electrical Supply | 100-127/200-240V, 50/60Hz, 1Ph |
| Inlet Flange | NW25 |
| Exhaust Flange | NW25 |
| Noise Level | 52 dB(A) |
| Leak Tightness (Static) | < 1 x 10⁻⁶ mbar l/s |
| Vibration at Inlet | < 4.5 mm/s (rms) |
| Operating Temperature | 10 to 40 °C (50 to 104 °F) |
| Weight | 25.8 kg (57 lbs) |
