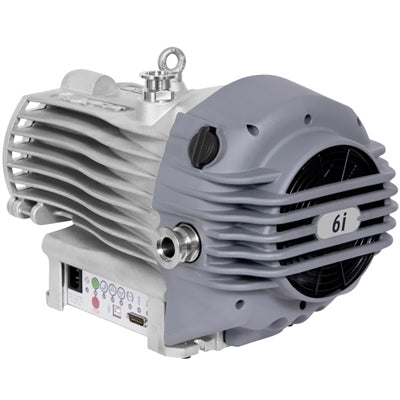

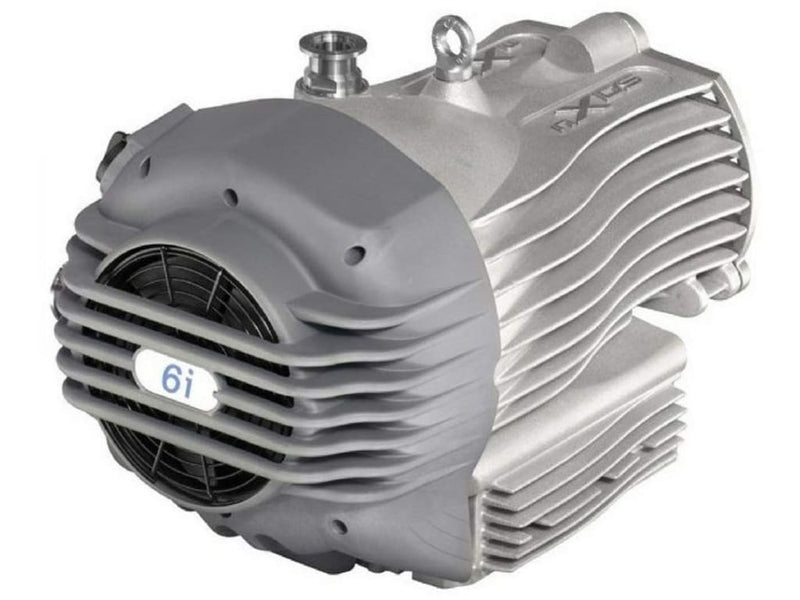

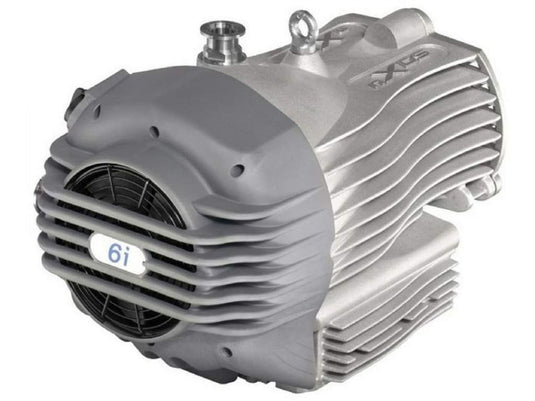

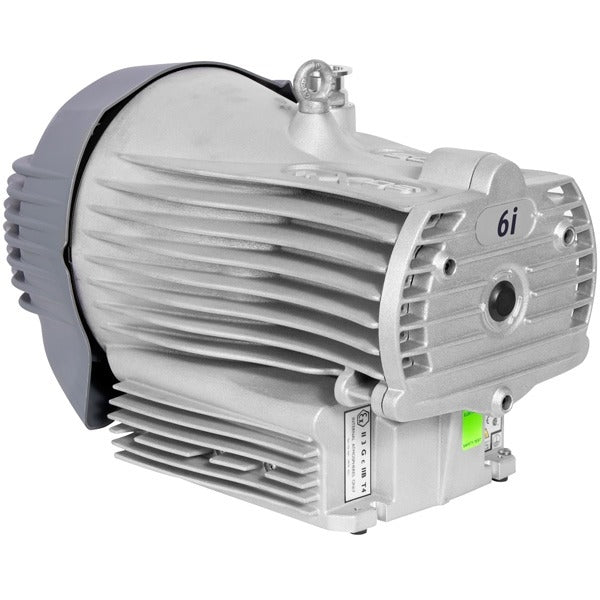

Edwards nXDS6iC Dry Scroll Pump

Edwards nXDS6iC Dry Scroll Pump is a high-performance, chemically resistant vacuum solution designed to deliver exceptional pumping capability, superior ultimate vacuum performance, and state-of-the-art features. As the next generation in dry scroll technology, the nXDS series improves upon legacy XDS models by offering increased pumping speeds, lower ultimate pressures, reduced power consumption, and noise levels up to 20 times quieter than comparable pumps.

Key Features:

• Chemraz internal valves and stainless steel fittings for enhanced chemical resistance, ideal for more aggressive applications.
• Bearing shield design prevents contamination by separating process gases from bearing lubrication, ensuring a clean vacuum.
• Integrated smart motor drive provides consistent global performance, pump overload protection, and remote start/stop capability.
• High flow gas ballast allows pumping of condensable vapors, including water, solvents, dilute acids, and bases, at rates up to 240 g/h.
• Simple single-sided scroll design enables maintenance in minutes, reducing ownership costs and maximizing uptime.
• Enhanced energy efficiency with up to 20% lower peak power requirements during initial pump down.
• Quiet operation at only 52 dB(A), improving lab comfort.

Additional Benefits

• Latest tip seal technology offers significantly extended intervals between seal changes.
• Integrated inverter drive with auto-sensing voltage input ensures optimized global performance.
• Manual, user-friendly gas ballast port included as standard.
• Excellent pairing for turbomolecular pumps in advanced vacuum systems.

Included with Your Pump

• Power Cord
• Operator’s Manual
• Manufacturer’s Documentation
• 1-Year Manufacturer’s Warranty

Technical Specifications
