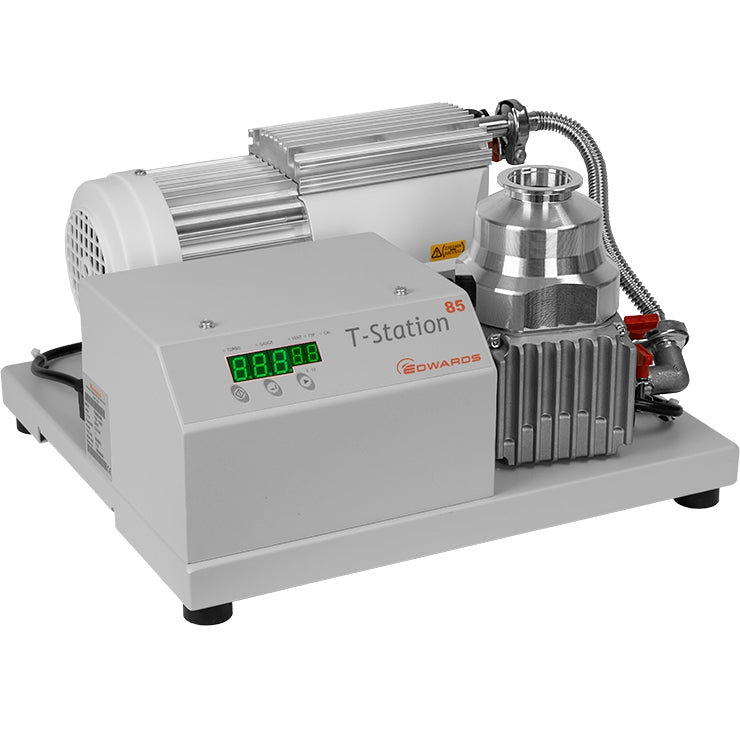

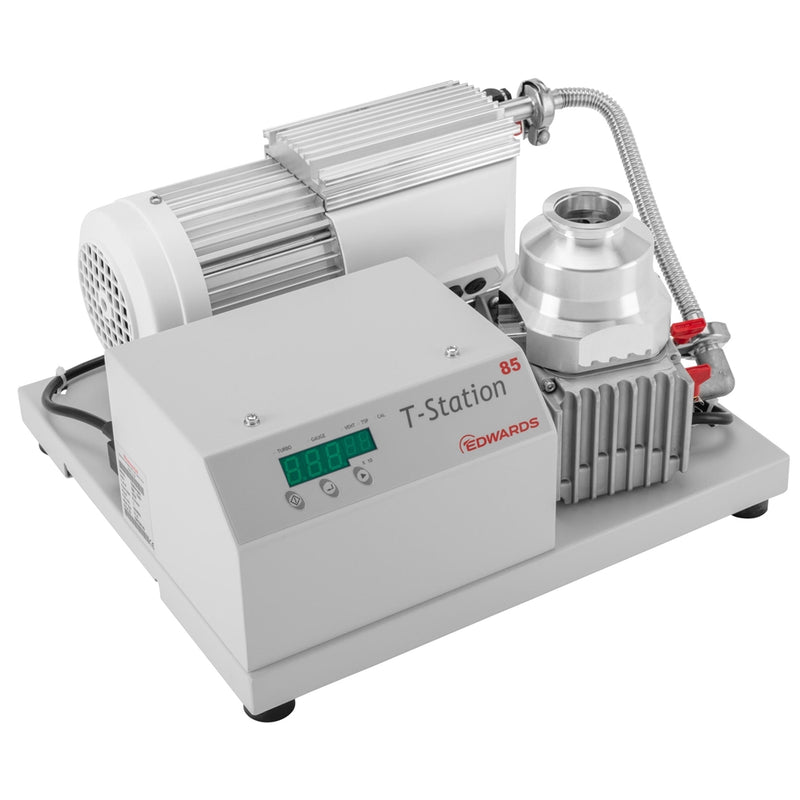

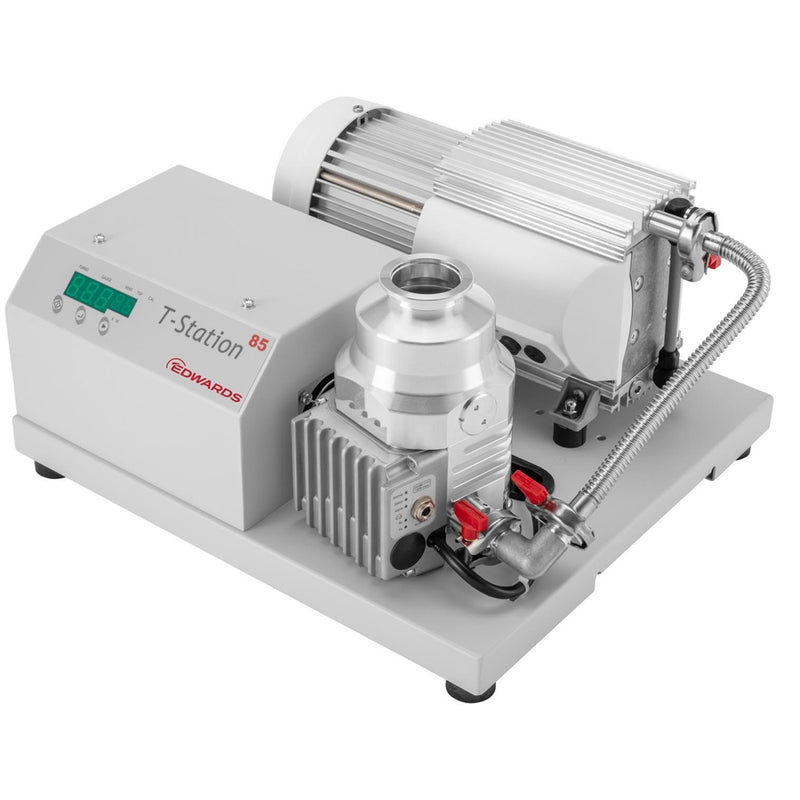

Edwards T-Station 85H Dry Turbo Station NW40 is a compact, fully integrated turbomolecular pumping station designed to deliver exceptional vacuum performance for general laboratory and industrial applications. Combining a high-performance nEXT85H turbomolecular pump with an XDD1 dry diaphragm backing pump, this turnkey solution provides reliable pumping with minimal maintenance.
Key Features:
- Ultimate Pressure: <5 x 10-8 mbar
- Inlet Connection: NW40
- Leak Tightness: <1 x 10-6 mbar l/s
- Single-button operation for easy start/stop of the system
- Integrated Turbo and Active Gauge controller for streamlined operation
- Vent valve control and delayed turbo start by time or pressure
- Quiet operation with integrated air cooler (avoids multiple fans)
- Rugged all-metal frame design with rubber feet and manual handling cut-outs
- Serviceable turbomolecular and backing pumps for lower cost of ownership
- Choice of inlet flange options to suit your setup (NW40 included)
Included Items
- T-Station Pumping Station Base
- XDD1 Diaphragm Pump
- nEXT85H Turbomolecular Pump with NW40 Inlet
- All necessary tubing and cables for turnkey operation
- Operator’s Manual
- 1-Year Manufacturer’s Warranty
- Manufacturer’s Documentation
Specifications
| Ultimate Pressure | <5 x 10-8 mbar |
| Pumping Speed | 47 l/s |
| Compression Ratio for N2 | >1 x 1011 |
| Backing Pump Speed (50 Hz) | 1.2 m3/h |
| Exhaust Flange | Fitted silencer or 1/8” BSP |
| Noise Level | <56 ± 3 dB(A) |
| Leak Tightness | <1 x 10-6 mbar l/s |
| Operating Temperature Range | 12 to 40°C |
| Electrical Requirements | 100-120V, 50/60 Hz, 1 Phase |
