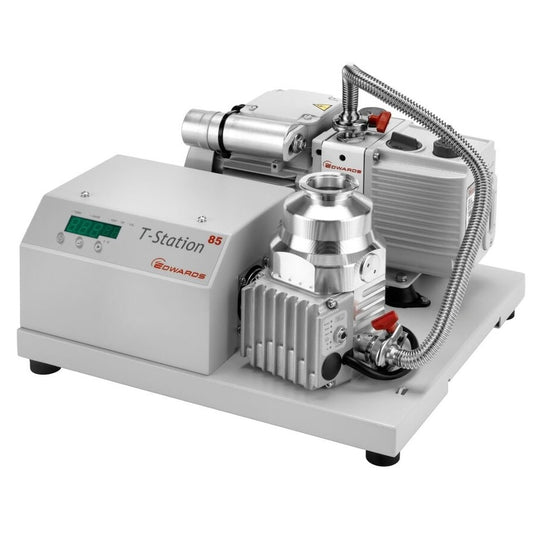

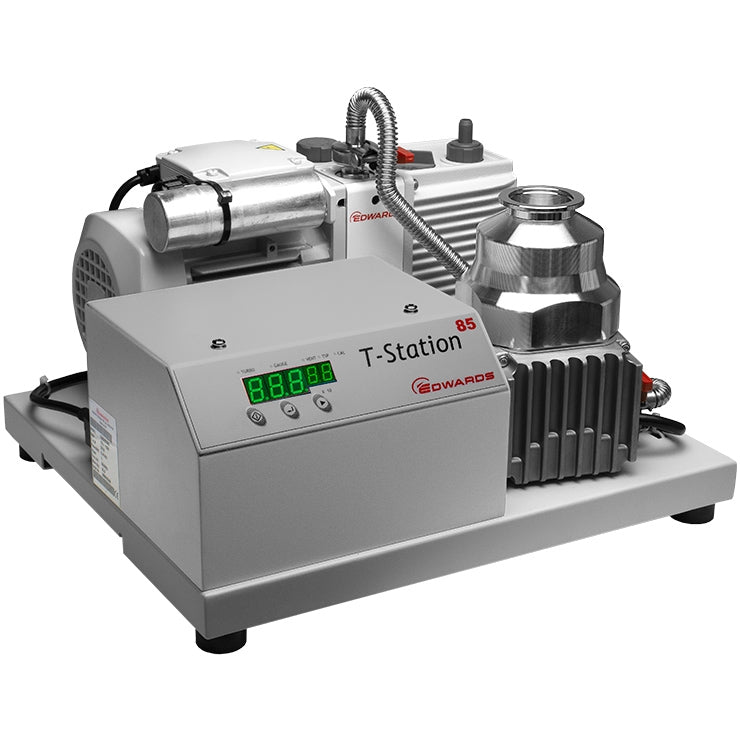

Edwards T-Station 85H Wet Turbo Station NW40 is a compact, robust turbomolecular pumping system that integrates the powerful nEXT85H turbomolecular pump with an oil-sealed rotary vane backing pump. Designed for demanding laboratory and light industrial applications, this turnkey solution delivers outstanding performance with intuitive controls and minimal footprint.
Key Features:
- Ultimate Vacuum: <5 x 10-8 mbar
- Pumping Speed (N2): 47 l/s
- Backing Pump Speed: 1.6 m3/h at 50 Hz
- Base plate with rubber feet and manual handling cut-outs ensures compact, stable design that resists tipping
- Durable all-metal frame construction stands up to rigorous use
- Choice of E2M1.5 oil-sealed pump for high capacity or dry XDD1 diaphragm pump (this unit: E2M1.5 oil-sealed)
- Integrated air cooler reduces noise by eliminating multiple external fans
- Single-button start/stop, easy-to-read display, and selectable venting when equipped with a TAV5 valve
- Available with NW40, ISO63, or CF63 inlets (this unit: NW40 inlet)
- User-serviceable nEXT85H turbomolecular pump for simplified maintenance
Included Items
- T-Station Pumping Station Base
- E2M1.5 Rotary Vane Backing Pump
- nEXT85H Turbomolecular Pump with NW40 Inlet
- All Necessary Tubing and Cables for Turnkey Operation
- Operator’s Manual
- 1-Year Manufacturer’s Warranty
- Manufacturer’s Documentation
Specifications
| Ultimate Vacuum | <5 x 10-8 mbar |
| Pumping Speed (N2) | 47 l/s |
| Compression Ratio (N2) | >1 x 1011 |
| Backing Pump Speed (50Hz) | 1.6 m3/h |
| Inlet Flange | DN 63 CF |
| Exhaust Flange | Fitted silencer or 1/8” BSP |
| Noise Level | <56 ± 3 dB(A) |
| Leak Tightness | <1 x 10-6 mbar l/s |
| Operating Temperature Range | 12 to 40°C |
| Dimensions (L x W x H) | 15.55 x 13.78 x 10.63 in (39.5 x 35.0 x 27 cm) |
| Electrical Requirements | 100-120V, 50/60Hz, 1Ph |
