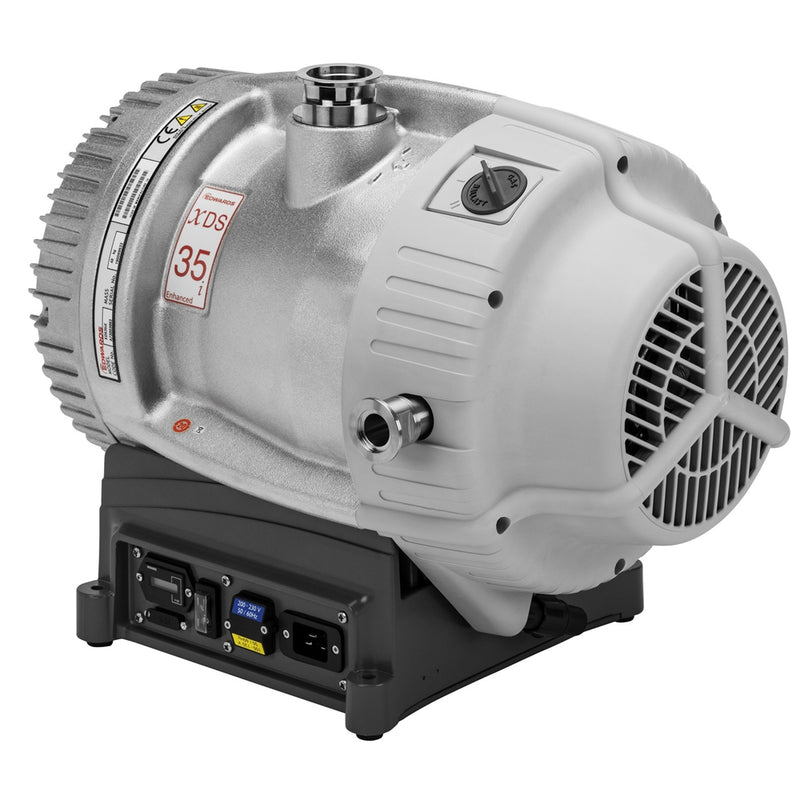

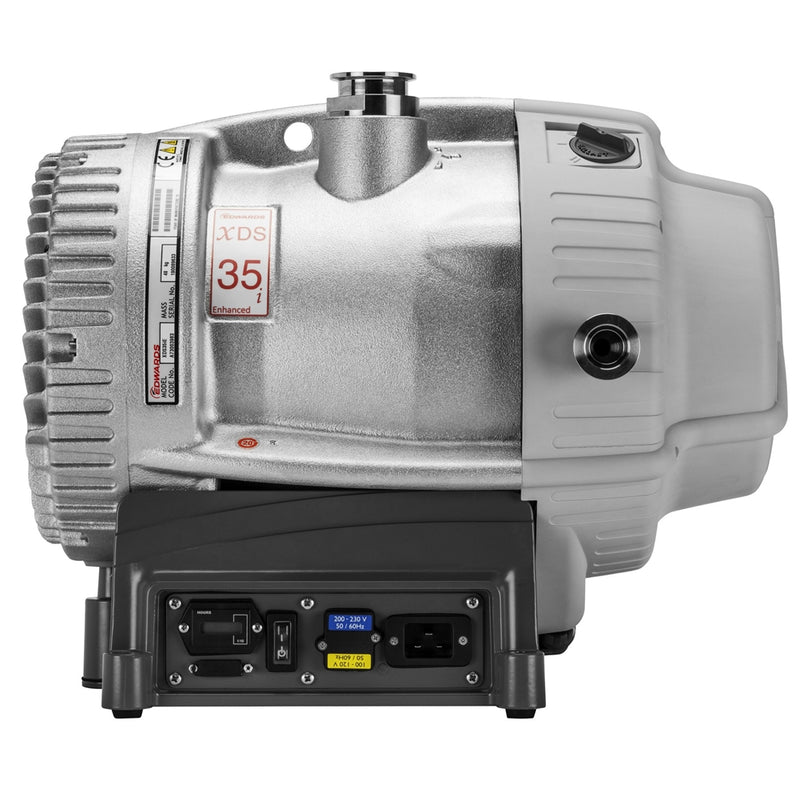

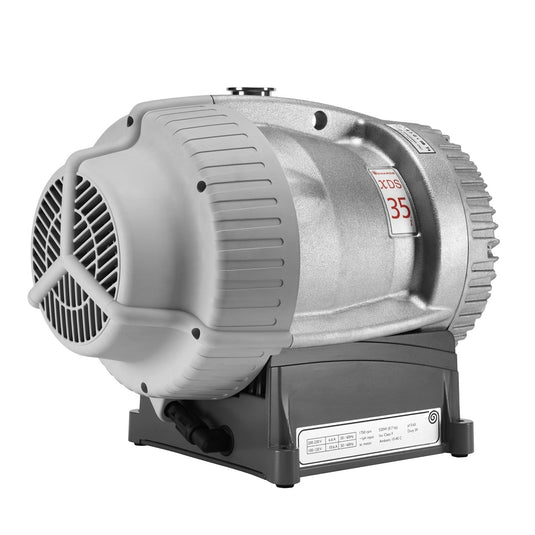

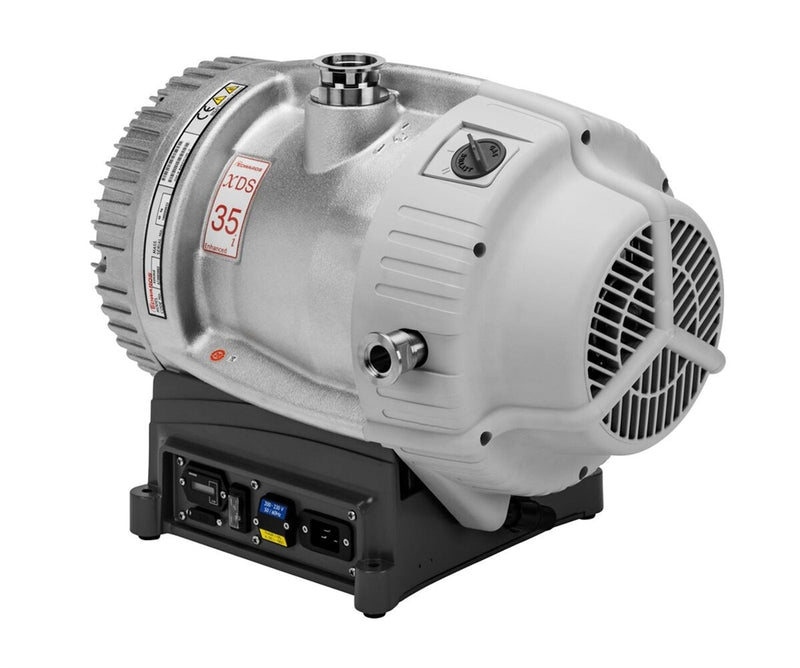

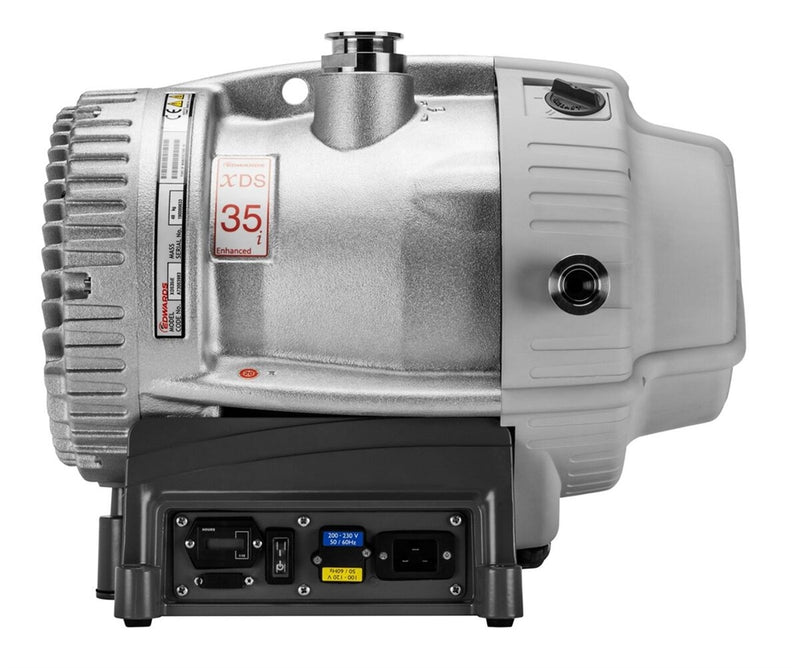

Edwards XDS35iE Enhanced Dry Scroll Pump delivers advanced dry, clean vacuum technology, engineered to handle rigorous applications across laboratories and industrial settings. Enhanced with innovative double start scroll form technology and by-pass valves, it builds on the trusted XDS35i platform to offer superior roughing performance and faster large volume evacuations.
Key Features:
- Ultimate Vacuum: 0.03 mbar (0.02 Torr)
- Peak Pumping Speed: 35 CFM (21 m³/h)
- Inlet Connection: DN 40 ISO-KF (NW40)
- Dry, oil-free operation ensures clean vacuum generation for contamination-sensitive processes
- Smart drive technology for consistent global operation with built-in overload protection and remote start/stop capability
- High flow gas ballast efficiently handles vapours, including water vapour up to 240 gh-1
- Single-sided scroll design allows quick, low-cost maintenance
- Enhanced by-pass valves deliver up to 25% increased pumping speed at roughing pressures—ideal for frequent cycling
- Reduced power consumption by up to 20% during initial pump down for improved energy efficiency
- CE compliant for international safety and quality standards
Included Items
- Edwards XDS35iE Enhanced Dry Scroll Pump
- Power Cord
- Operator’s Manual
- Manufacturer’s Documentation
- 1-Year Manufacturer’s Warranty
Specifications
| Ultimate Vacuum | 0.03 mbar (0.02 Torr) |
| Ultimate Vacuum (Gas Ballast 1) | 0.04 mbar (0.03 Torr) |
| Ultimate Vacuum (Gas Ballast 2) | < 10 mbar (7.5 Torr) |
| Peak Pumping Speed | 35 CFM (21 m³/h) |
| Max Inlet Pressure for Water Vapour | 35 mbar (23 Torr) |
| Max Continuous Inlet Pressure | 1000 mbar a (760 Torr a) |
| Inlet Connection | DN 40 ISO-KF (NW40) |
| Outlet Connection | DN 25 ISO-KF (NW25) |

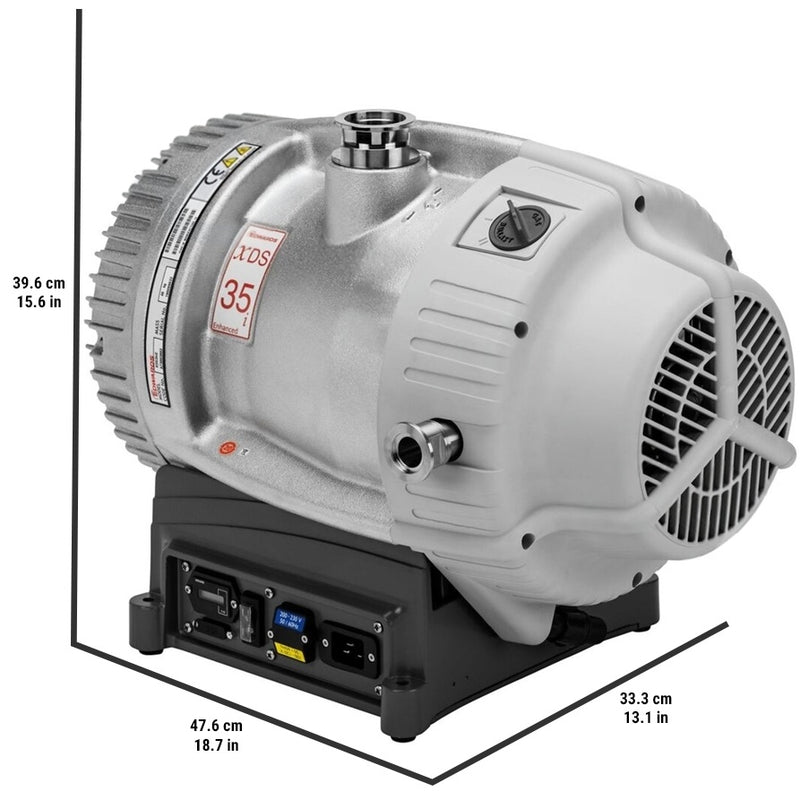

| Weight | 105 lb (48 kg) |
| Electrical Requirements | 100-120/200-230V, 50/60Hz, 1Ph |
