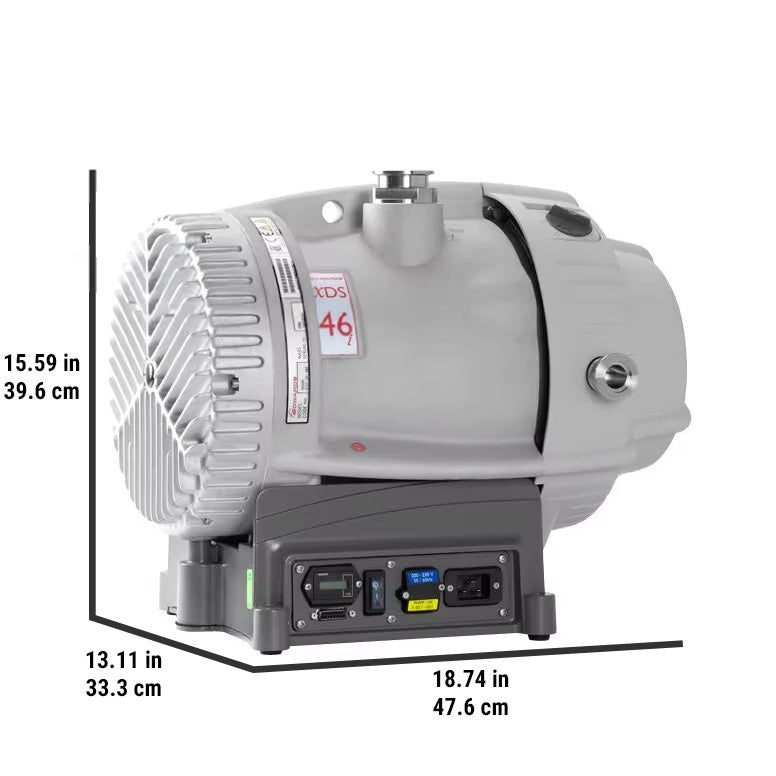

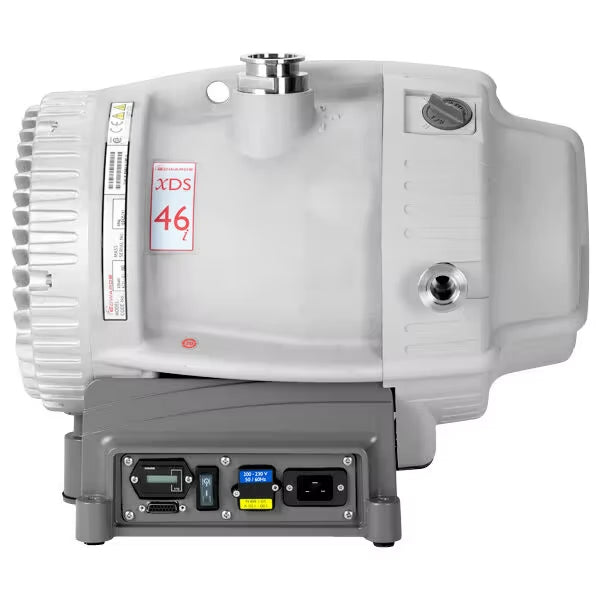

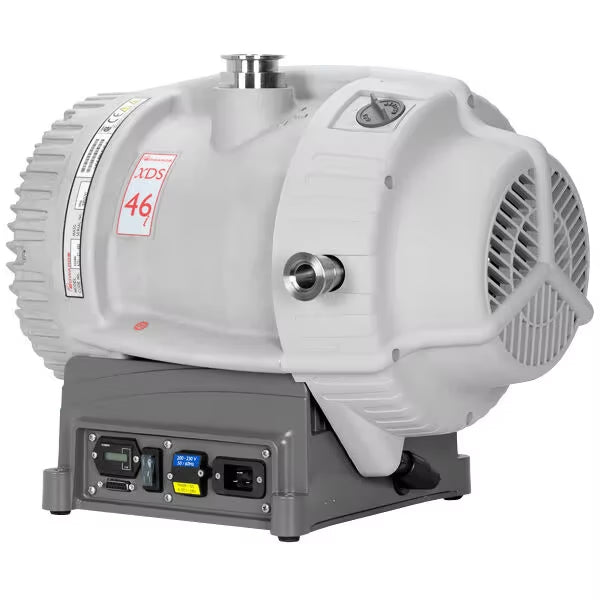

Edwards XDS46iC Dry Scroll Pump delivers exceptional performance and reliability for clean, oil-free vacuum applications. Engineered with advanced features, it is ideally suited for applications such as LCMS, ICPMS, and processes involving vapors or mild corrosive gases. The XDS46iC is fitted with Chemraz® internal valve pads and a stainless steel exhaust port for enhanced corrosion resistance.
Key Features:
- Peak Pumping Speed: 23.5 CFM (40 m³/h)
- Ultimate Vacuum: 0.05 mbar (0.04 Torr)
- Innovative bearing shield ensures total separation of process gases from lubrication, extending bearing life and preventing contamination
- Axial air gap motor reduces size and delivers low power consumption and reduced noise
- Smart motor drive provides consistent global performance, pump overload protection, and remote start/stop
- High flow gas ballast allows efficient pumping of vapors up to 240 g/h, including water vapor
- Simple single-sided scroll design allows quick maintenance, reducing downtime and ownership costs
- Fitted with Chemraz® valve pads and stainless steel exhaust for increased durability in vapor and mild corrosive environments
Included Items
- Edwards XDS46iC Dry Scroll Pump
- Power Cord
- Operator's Manual
- Manufacturer's Documentation
- 1-Year Manufacturer’s Warranty
Specifications
| Displacement (50/60Hz) | 60 m³/h (35 ft³/min) |
| Peak Pumping Speed (50/60Hz) | 40 m³/h (23.5 ft³/min) |
| Ultimate Vacuum (Total Pressure) | 5 x 10⁻² mbar (4 x 10⁻² Torr) |
| Max Continuous Inlet Pressure | 40 mbar (30 Torr) |
| Max Continuous Outlet Pressure | 0.2 bar gauge (2.9 psig) |
| Max Allowed Inlet & GB Pressure | 0.5 bar gauge (7 psig) |
| Motor Power | 0.52 kW |
| Power Connection | IEC EN60320 C19 |
| Nominal Speed | 1750 rpm |
| Weight | 48 kg (105 lb) |
| Inlet Flange | NW40 |
| Exhaust Flange | NW25 |
| Noise Level | 55.4 dB(A) |
| Vibration | <4.5 mm/s (rms) |
| Leak Tightness (Static) | <1 x 10⁻⁶ mbar l/s |
| Operating Temperature Range | 10 to 40 °C (50 to 104 °F) |
| Electrical Requirements | 100-120/200-230V, 50/60Hz, 1Ph |
