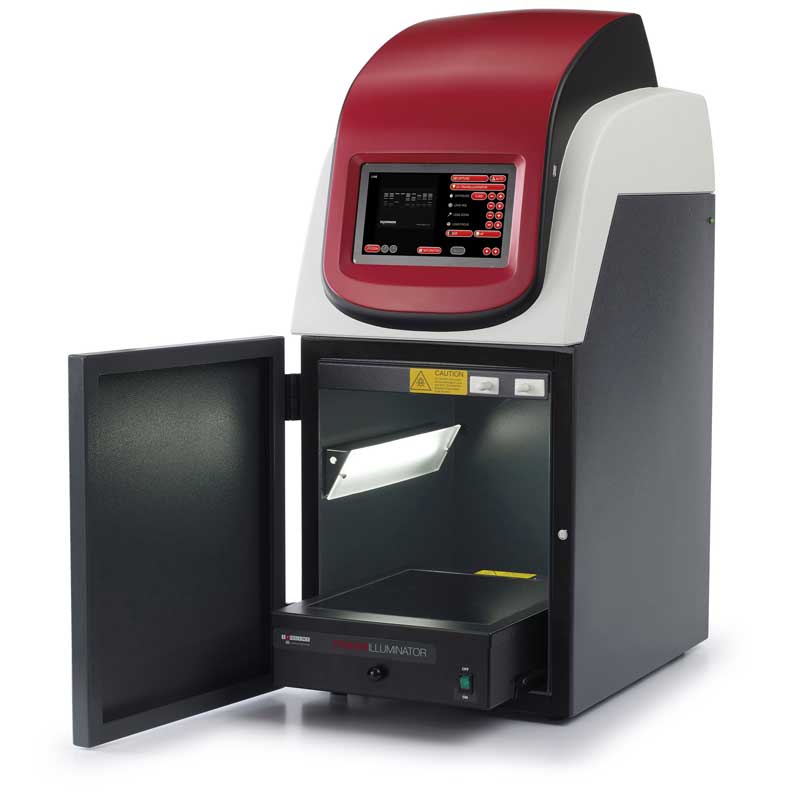

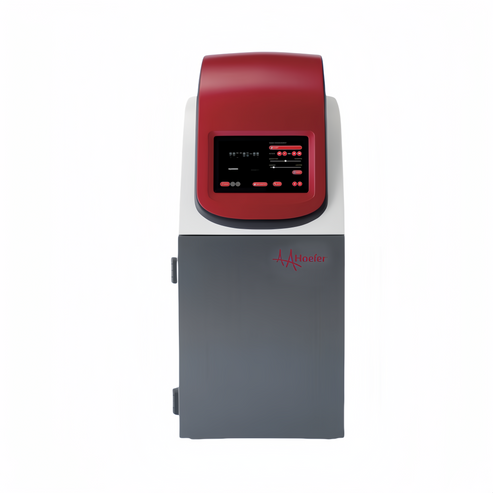

Hoefer FPGD2 Imaging System is a compact, all-in-one gel documentation system offering high-resolution imaging, flexible lighting, and intuitive control. Designed for DNA gels, autorads, and stain-free analysis, FPGD2 delivers powerful performance in a benchtop-friendly footprint.
Key Features:
- High Sensitivity: 5MP camera with exceptional pixel clarity for gels and blots
- Flexible Applications: Ideal for DNA imaging, stain-free workflows, and autorads
- Compact & Integrated: Built-in PC, 7” touchscreen, and internal lighting in a single unit
- Safe Gel Excision: Optional safety shield enables UV work with door open
- Efficient Workflow: Images saved directly to USB or network storage
- Free Analysis Software: Includes unlimited copies of GelTools for quantification
Included with System:
- FPGD2 mainframe unit with integrated PC and touchscreen
- UV Transilluminator (20 × 20 cm, 302nm)
- Visible light converter (Silver Stain, Coomassie Blue)
- UV to Blue Light converter (for safe dyes like SYBRGreen, SYPRO Ruby, GFP)
Note: If purchasing the FPGD2 imaging unit only, lighting modules and converters are sold separately.
Specifications
| Image Resolution | 5 MP |
| Bit Depth | 12/16 Bit |
| Dynamic Range | 3.6 / 4.8 OD |
| Lens | 8–48mm, f/1.2 (motor-driven zoom) |
| Sample Area | 20 × 24 cm |
| Sensor | 1/2.5 Inch |
| Touchscreen | 7” full-color interface |
| Operating System | Windows 10 Enterprise LTSC |
| Storage | 80 GB internal memory |
| Connectivity | USB, Network (Ethernet) |
| Power Input | 100–240V |
| Dimensions (HxWxD) | 750 × 310 × 450 mm |
| Weight | 20 kg |
Why Choose FPGD2?
- High-performance imaging with an exceptionally small footprint
- Integrated PC and touchscreen removes the need for external control hardware
- Designed for stain-free, DNA gel, and autoradiography workflows
- Safe, simple, and fast to use—even for routine tasks
- Backed by Hoefer’s commitment to precision and reliability
