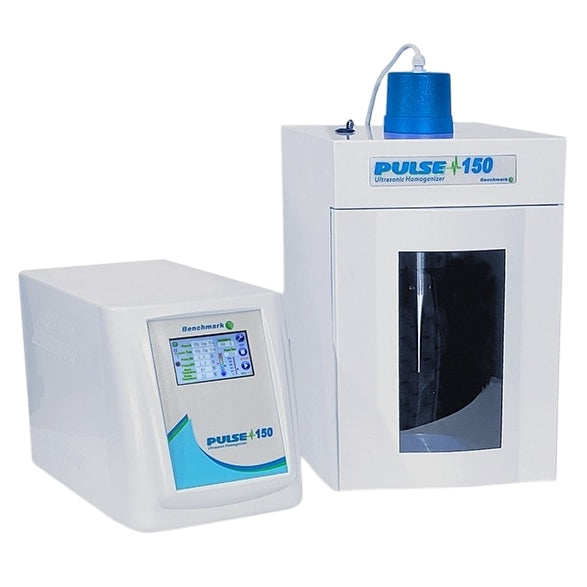

Benchmark Pulse 150 Ultrasonic Homogenizer offers precision ultrasonic processing for small volumes, ideal for tasks such as cell lysis, DNA shearing, and ChIP assay prep. With a compact soundproof enclosure and intuitive touchscreen control, this homogenizer delivers lab-grade performance with minimal noise disruption.
Capable of up to 150 watts of power, the Pulse 150 supports sample volumes from 0.1 to 150ml (depending on horn selection). This model comes standard with a 6mm titanium horn—ideal for 10 to 100ml—along with a temperature probe, all required tools, and a soundproof chamber for quieter operation.
Features:
- Ultrasonic cavitation for effective cell disruption and DNA shearing
- 150W power, adjustable in real-time from 1.5 to 150W
- Processes 0.1 to 150ml (6mm horn suitable for 10–100ml)
- 4.3-inch full color touchscreen for intuitive control
- Program memory for up to 20 custom protocols
- Pulsed operation with fully adjustable on/off cycles
- Built-in alarms: over-temperature, no load, overload, and end of run

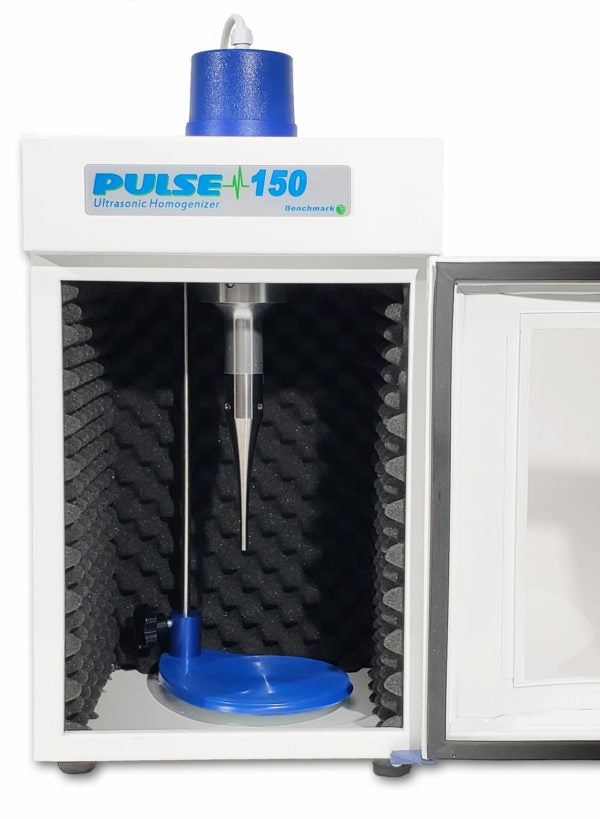

- Soundproof enclosure reduces noise and includes internal sample platform
Applications:
- Cell disruption (bacteria, yeast, mammalian cells)
- DNA and RNA shearing
- Chromatin Immunoprecipitation (ChIP) assays
- Sample homogenization for molecular biology workflows
Specifications
| Parameter | Specification |
|---|---|
| Power | 1.5 – 150W (continuously adjustable) |
| Frequency | 20 – 25 kHz |
| Cycle Time | 0.1 – 99.9 sec (pulse on/off) |
| Timer | 1 sec – 99:59:59 (hh:mm:ss) |
| Duty Cycle | 0.1 – 99.9% |
| Volume Range | 0.1 – 150 ml |
| Horn | 6mm titanium (2mm, 4mm, 8mm optional) |
| Display | 4.3" Full Color Touchscreen |
| Program Memory | 20 Programs |
| Alarms | No Load / Overload / End of Run / Over Temp |
| Controller Dimensions | 12 x 18.5 x 16.9 in (30.5 x 47 x 43 cm) |
| Controller Weight | 35.3 lbs / 16 kg |
| Soundproof Box Dimensions | 13.8 x 13.8 x 21.7 in (35 x 35 x 55 cm) |
| Soundproof Box Weight | 22 lbs / 10 kg |
| Electrical | 120V or 230V, 50-60Hz |
What's Included
- Controller
- Transducer
- 6mm Titanium Horn
- Soundproof Enclosure
- Temperature Probe
- Power Cord
- Operator’s Guide
- Manufacturer’s Documentation
- 2-Year Manufacturer’s Warranty
Why Choose the Pulse 150?
- Complete homogenization system ready out-of-the-box
- Small footprint and noise-reducing enclosure
- Touchscreen control and customizable protocol memory
- Trusted for precise sonication in molecular workflows
- Reliable performance backed by a 2-year warranty
