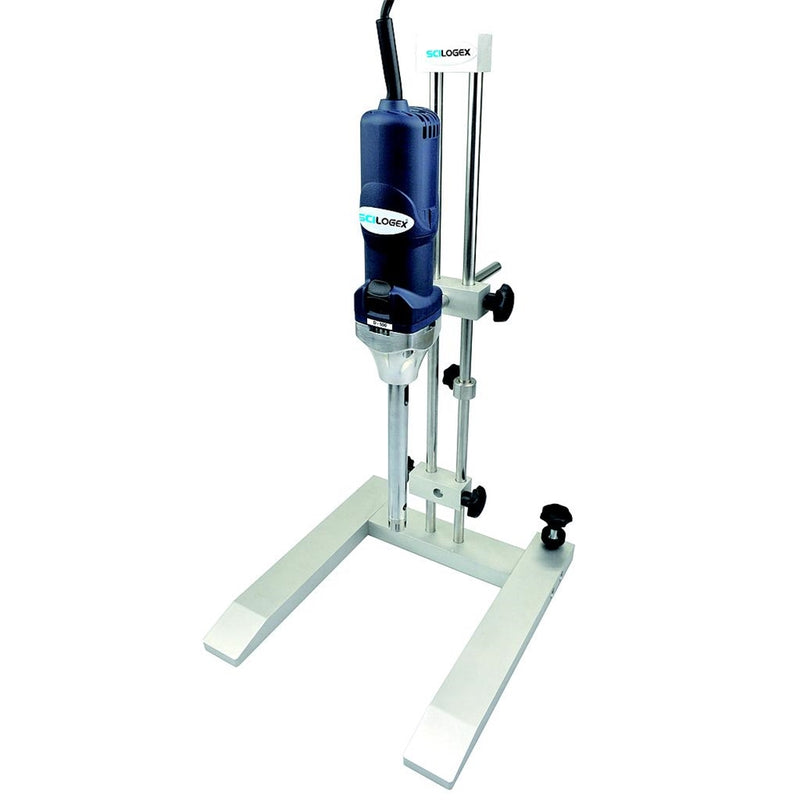

Scilogex D500 Homogenizer Packages are high-performance laboratory homogenizing systems designed for rapid and efficient processing of liquid and solid samples from 10 mL up to 5,000 mL. With a powerful 500W universal motor and interchangeable generator probes, these units provide highly precise results in applications requiring emulsification, suspension, or disintegration of complex materials.
Features:
- Universal 500W motor with 10,000–29,000 RPM speed range
- High-efficiency homogenization for sample volumes between 10–5,000 mL
- Fineness: Suspensions 10–15µm, Emulsions 1–10µm
- Overload protection increases motor lifespan
- Smooth acceleration prevents sample spills
- Tool-free rotor assembly and disassembly
- Generator shafts made from durable, autoclavable 316L stainless steel
- Quiet operation at 72 dB(A)
Included
- Scilogex D500 Drive Motor
- Generator Shaft (20 mm Ø, 215 mm length)
- H-600 Stand
- Power Cord
- Operator’s Guide & Manufacturer Documentation
- 1-Year Manufacturer’s Warranty
Available Packages
D500 Homogenizer Package – DS-500/1
- Generator: 20 mm Ø, S20C/SR20 Flat Head – Coarse
- Application: Solid/liquid media
- Includes holding clamp
- Weight: 20 lbs (with stand), 1.8 lbs (drive only)
- Voltage: 110V, 60Hz
D500 Homogenizer Package – DS-500/2
- Generator: 20 mm Ø, S20F/ER20 Flat Head – Fine
- Application: Water-in-oil or oil-in-water emulsions
- Weight: 20 lbs (with stand), 1.8 lbs (drive only)
- Voltage: 110V, 60Hz
Specifications
| Model | Speed Range (RPM) | Sample Volume | Max. Viscosity | Fineness (Susp. / Emul.) | pH Range | Noise | Motor | Generator Shaft | Drive Dimensions (in) | Weight | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DS-500/1 | 10,000–29,000 | 10–5,000 mL | 10,000 mPas | 10–15µm / 1–10µm | 2–13 | 72 dB(A) | 500W Universal | 20 mm Ø, 215 mm | 2.5 x 2.5 x 9 | 20 lbs (with stand) | 110V, 60Hz |
| DS-500/2 | 10,000–29,000 | 10–5,000 mL | Not specified | 10–15µm / 1–10µm | 2–13 | 72 dB(A) | 500W Universal | 20 mm Ø, 215 mm | 2.5 x 2.5 x 9 | 20 lbs (with stand) | 110V, 60Hz |
