Yamato FO Series Programmable Muffle Furnaces offer reliable, consistent high-temperature performance with excellent thermal uniformity and compact, space-saving designs. These furnaces are built with long-life components and versatile programmable controls to support a range of lab heat treatment needs, from small-scale applications to larger capacity processing.
Features
- High-temperature accuracy at ±2.0°C
- PID microprocessor-controlled temperature system
- Energy-saving ceramic fiber insulation and iron-chrome wire heaters
- R-thermocouple sensors for improved durability and measurement precision

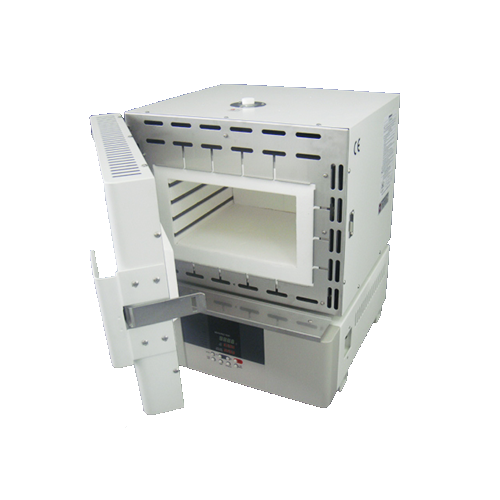

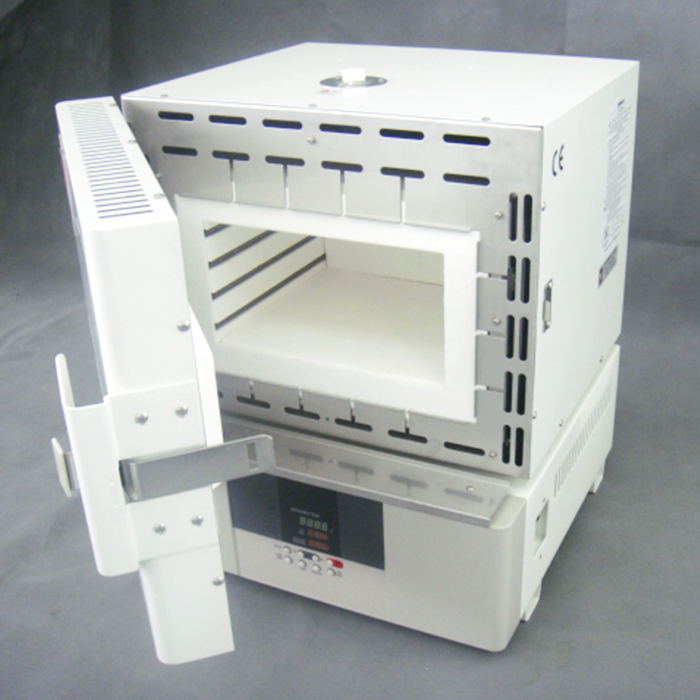

- Excellent heat retention with tightly sealed chamber doors
- Program operation: max 6 patterns — 30 steps x 1, 15 steps x 2, or 10 steps x 3

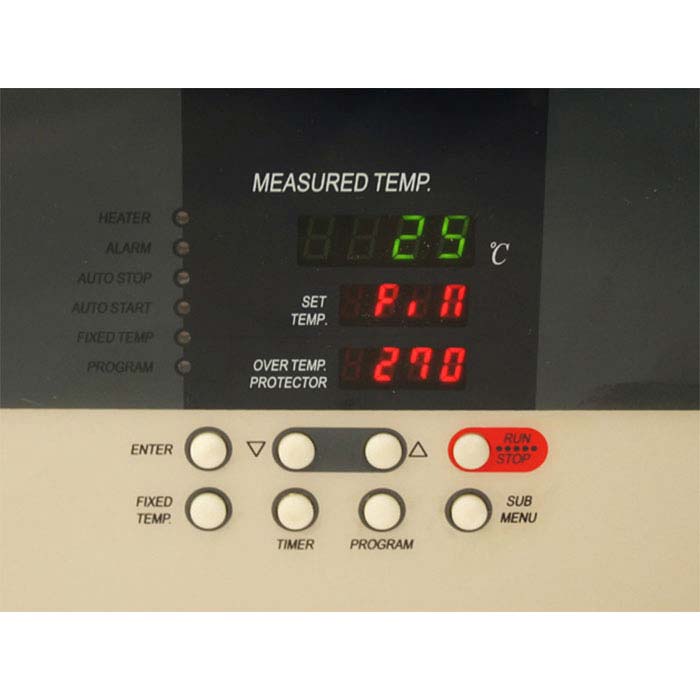

- Digital display and ▲/▼ key input for easy operation
- Compact footprints with varying internal capacities
Safety Features
- Self-diagnostic functions: memory error, heater disconnection, sensor error, SSR short circuit
- Overheat prevention device
- Earth leakage breaker
- Key lock and power failure recovery options
FO Series 1.5 to 9L Models

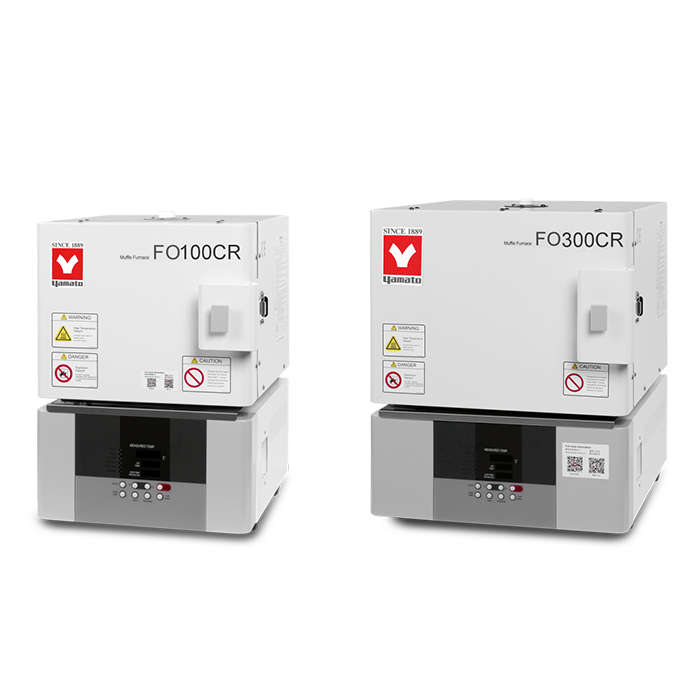

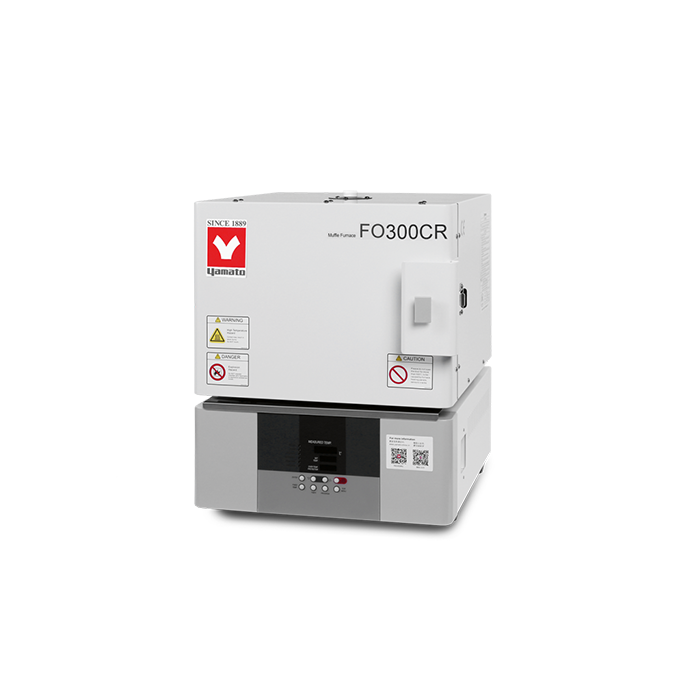

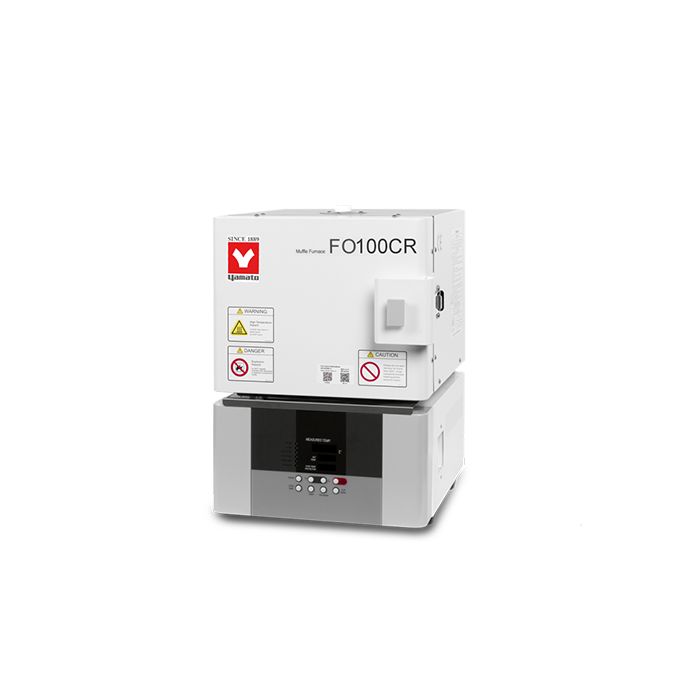

- Models: FO100CR, FO110CR, FO200CR, FO210CR, FO300CR, FO310CR, FO410CR
- Operating Temp. Range: 100°C to 1150°C
- Temp. Accuracy: ±2°C
- Internal Capacity: 1.5L to 9L
- Heaters: 1kW to 2.2kW
- Timer: 1 min to 999 hrs
- Internal Dimensions (W×D×H): 100×150×100 mm to 200×300×150 mm

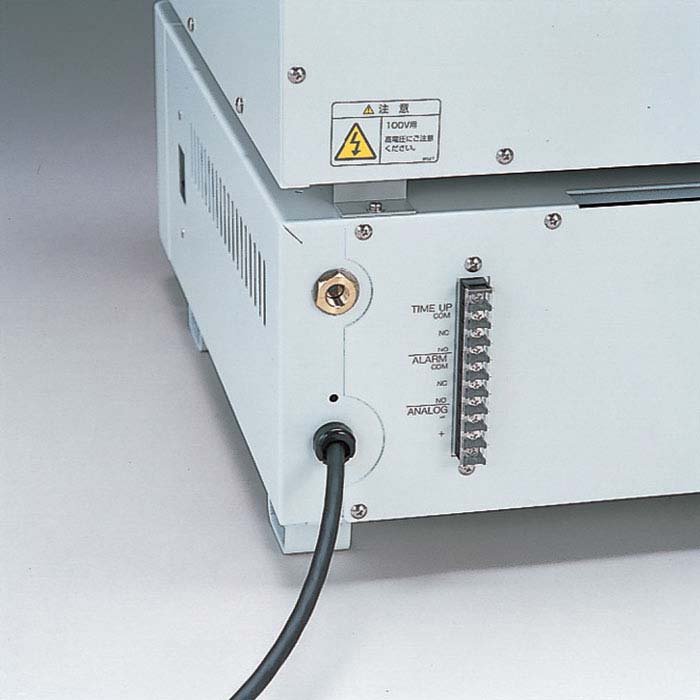

- Power Supply: AC115V or AC220V (no plug, round terminal)
- Weight: ~24kg to ~38kg

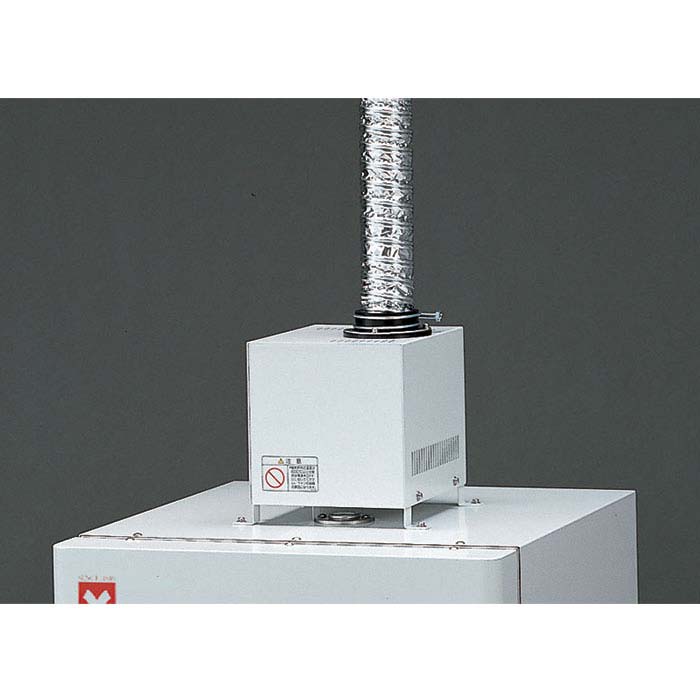

- Included Accessory: Exhaust port cap
FO Series 11.3 to 30L Models

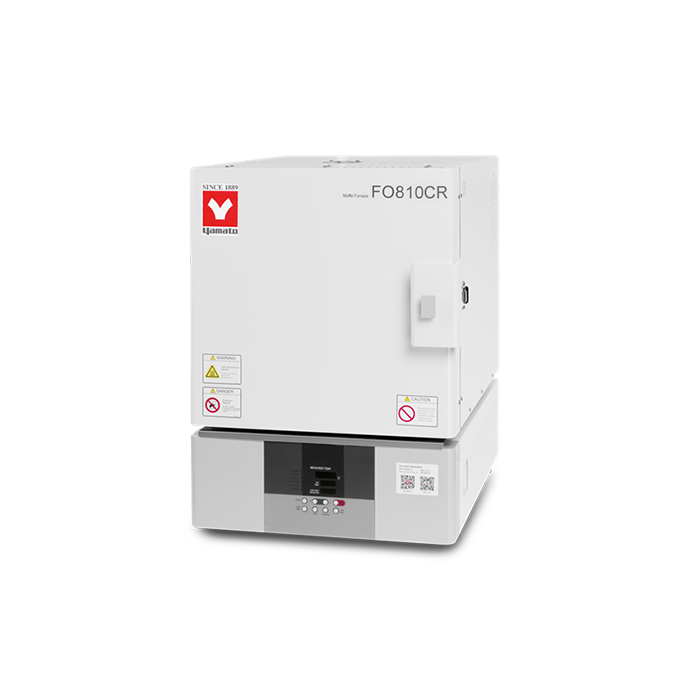

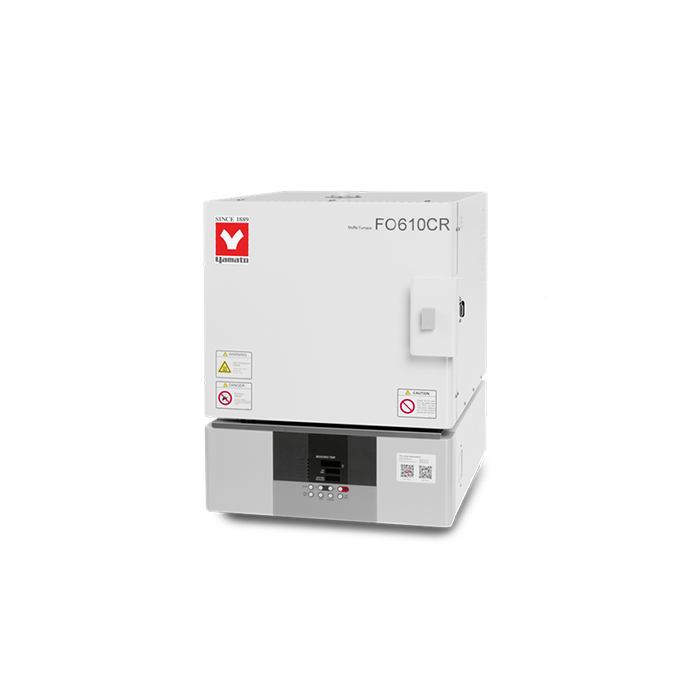

- Models: FO510CR, FO610CR, FO710CR, FO810CR
- Operating Temp. Range: 100°C to 1150°C
- Temp. Accuracy: ±2°C
- Internal Capacity: 11.3L to 30L
- Heaters: 2.5kW to 4.0kW
- Timer: 1 min to 999 hrs
- Internal Dimensions (W×D×H): 250×300×150 mm to 300×400×250 mm
- Power Supply: AC220V single phase (no plug, round terminal)
- Weight: ~44kg to ~62kg
- Included Accessory: Exhaust port cap
