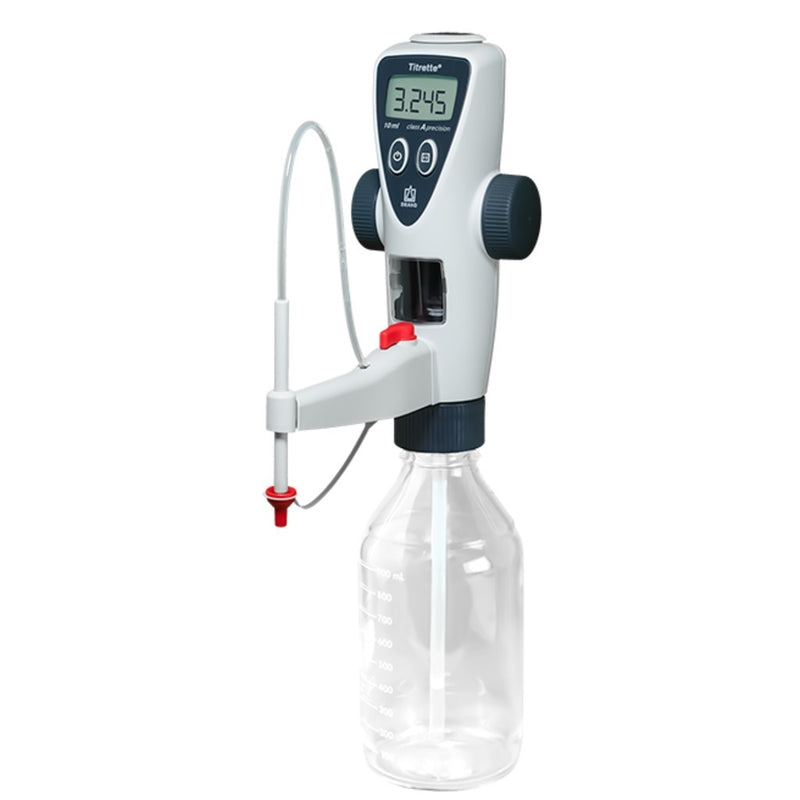

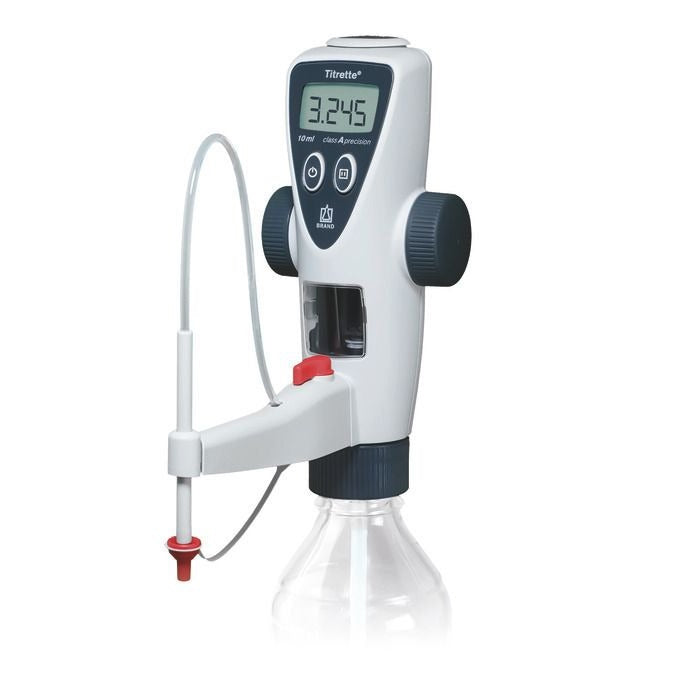

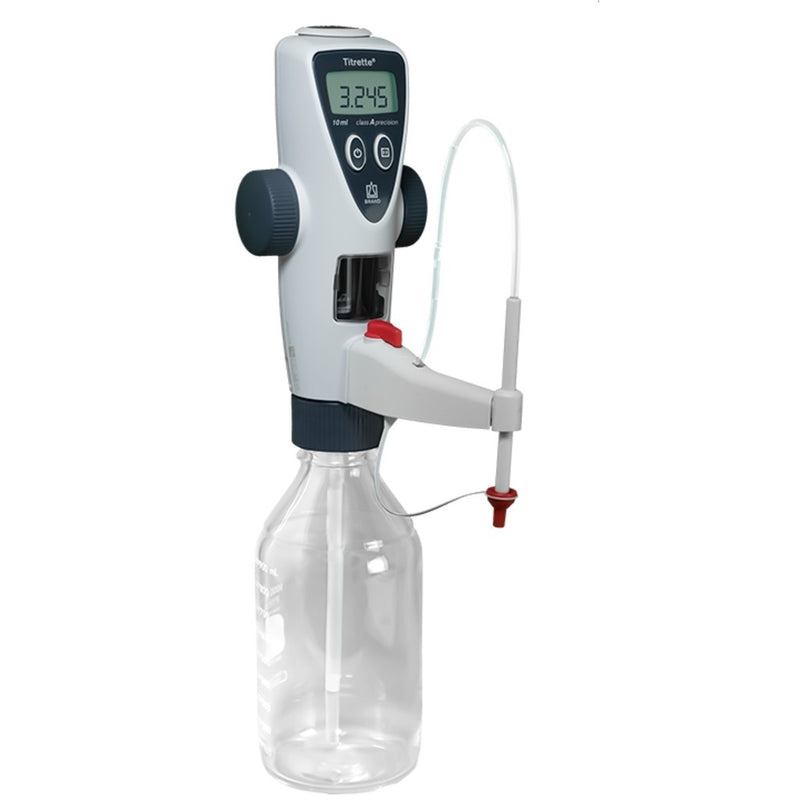

BrandTech Scientific Titrette Bottletop Burettes with RS232 Interface are advanced, precision instruments designed for direct, digital titration from a reagent bottle. Available in 10 mL, 25 mL, and 50 mL nominal volumes, they meet or exceed Class A error limits for glass burettes (DIN EN ISO 385, ASTM 287) while offering unmatched convenience, safety, and accuracy.
Key Features:
- Operates within Class A tolerances for glass burettes, ensuring rigorous accuracy for critical titrations.
- Digital volume display eliminates meniscus reading errors and enhances GLP/GMP compliance.
- Microliter precision enables drop-by-drop titration with drop sizes as small as 20 μL (model dependent).
- Automatic recognition of filling vs. titration modes eliminates manual switching, reducing handling errors.
- Large, ergonomically designed hand wheels and optimized gear ratio ensure rapid filling and ultra-sensitive dispensing.
- Easy Calibration technology allows tool-free, user calibration for quick adjustments.
- Optional RS232 interface provides direct data transfer to PC systems for secure, GLP-compliant documentation.
- Lightweight, compact design ensures stability on bottles and ease of transport without external power requirements.
- Amber inspection windows protect light-sensitive reagents.
- Disassembles easily for thorough cleaning, maintenance, and battery replacement.
Specifications
- Operating Temperature: +15°C to +40°C (59°F to 104°F)
- Viscosity Limit: Up to 550 mm²/s
- Relative Humidity: 20% to 90%
- Interface: RS232 for direct PC connectivity
- Power: 2 × AAA (1.5 V, non-rechargeable)
Performance by Nominal Volume:
| Model | Nominal Volume | Accuracy (A) | CV |
|---|---|---|---|
| 10 mL | 10, 5, 1 mL | ±0.10% / 10 μL at 10 mL | ≤0.05% / 5 μL at 10 mL |
| 25 mL | 25, 12.5, 2.5 mL | ±0.07% / 18 μL at 25 mL | ≤0.025% / 6 μL at 25 mL |
| 50 mL | 50, 25, 5 mL | ±0.06% / 30 μL at 50 mL | ≤0.02% / 10 μL at 50 mL |
Included with Each Burette
- Titrette Bottletop Burette (GL 45 threaded bottle fit)
- Telescoping filling tube (170 - 330 mm)
- Recirculation tube
- 2 × AAA batteries
- 3 PP bottle adapters (GL32, S40, NS29/32)
- 2 amber inspection windows
- 2 m RS232 interface cable
- CD with driver software & open communication protocol
- Operator’s manual & manufacturer’s documentation
- 1-year manufacturer’s warranty
