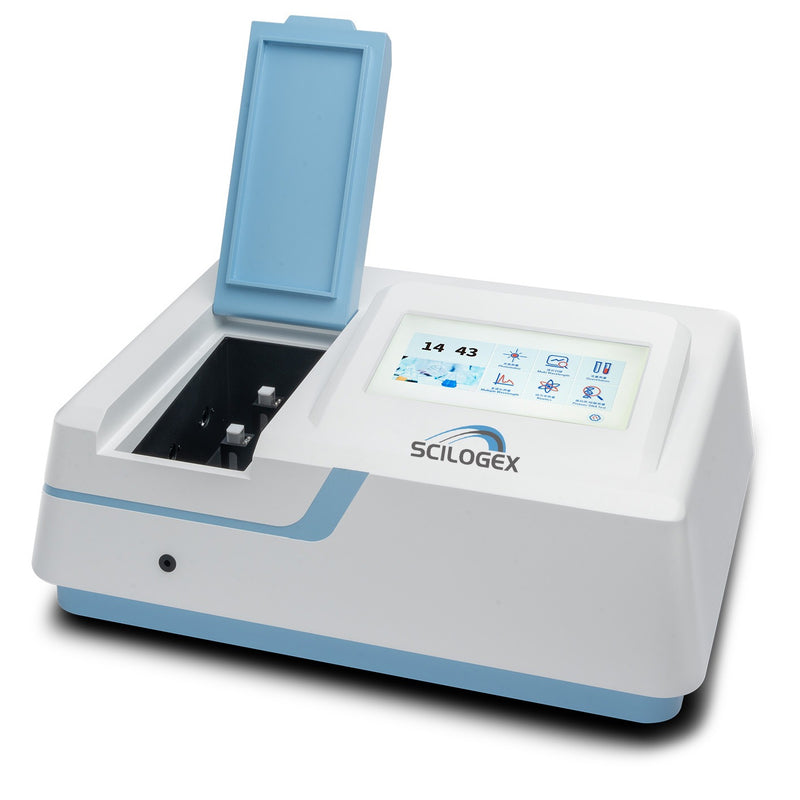

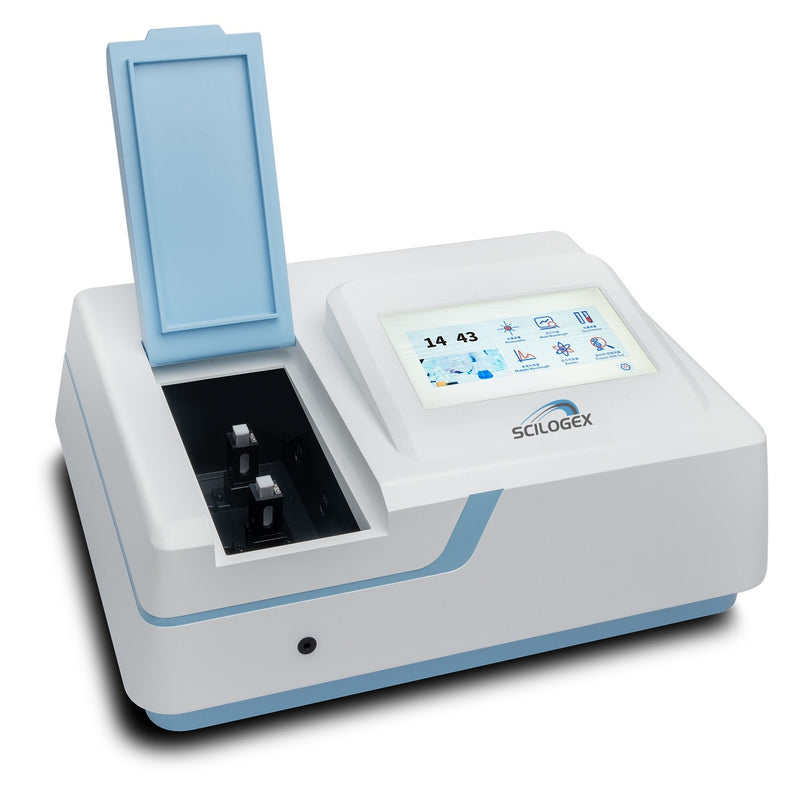

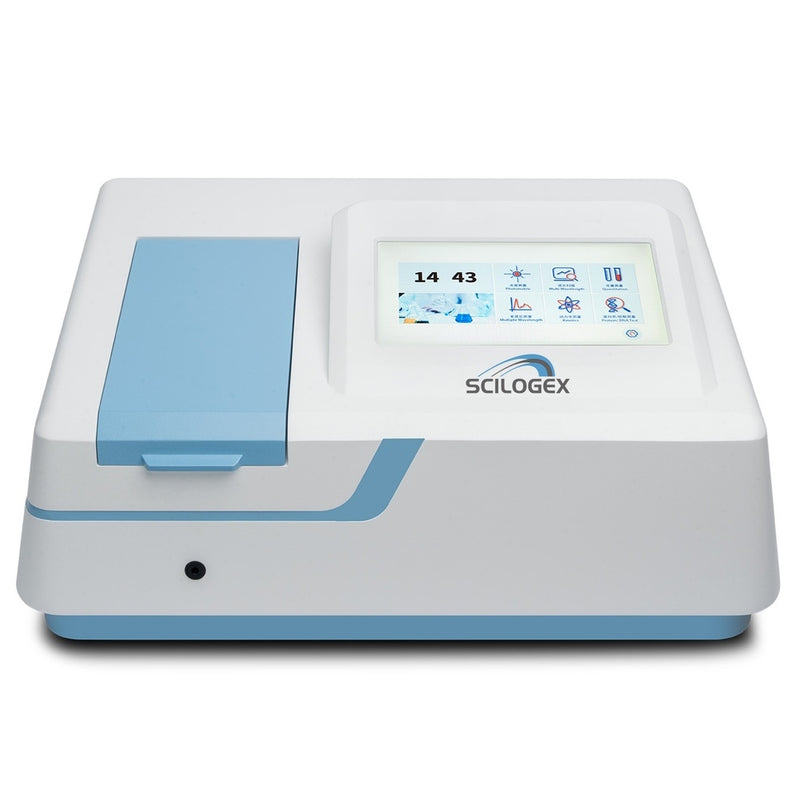

SCILOGEX Double-Beam UV-Vis Spectrophotometers – SCI-5101XUV & SCI-5102XUV
The SCILOGEX SCI-5101XUV and SCI-5102XUV Double-Beam Spectrophotometers are designed for high-precision UV-Vis spectroscopy across a wavelength range of 190 to 1100 nm. Equipped with advanced double-beam optical systems and grating of 1200 lines/mm, these instruments ensure excellent wavelength accuracy and reproducibility for demanding photometric, quantitative, kinetic, and scanning applications.
Key Features:
- Wavelength Range: 190 – 1100 nm
- Double Beam optical system with 1200 lines/mm diffraction grating
- 10.1" High-resolution TFT capacitive touch screen with intuitive Windows-like interface
- Multiple modes: Photometric, Quantitative, Kinetics, Spectrum Scan, Multi-Wavelength, DNA/Protein Testing
- Xenon lamp light source with long service life and minimal maintenance
- Built-in 1024MB memory for storing data and working curves
- USB, USB Host, and RS232 ports for data transfer/export to Excel
- GLP/GMP compliance with user/admin management and audit trails
- Manual 4-cell 10mm cuvette holder included
Model Comparison
| Model | Spectral Bandwidth | Photometric Accuracy | Display | Stability | Weight |
|---|---|---|---|---|---|
| SCI-5101XUV | 1 nm | ±0.002A (0–0.5A), ±0.004A (0.5–1A) | 10.1" TFT Capacitive Touch | ±0.0003A/h @ 500 nm | 59.5 lb (27 kg) |
| SCI-5102XUV | 2 nm | ±0.002A (0–0.5A), ±0.004A (0.5–1A) | 10.1" TFT Capacitive Touch | ±0.0003A/h @ 500 nm | 59.5 lb (27 kg) |
Power & Dimensions:
- Power: AC 110V/60Hz or 220V/50Hz
- Shipping Dimensions: 31.9 x 25.98 x 15.4 in (81 x 66 x 39 cm)
Included With Each Model
- 4 × 10mm Glass Cuvettes
- 2 × 10mm Quartz Cuvettes
- Power Cord
- Operator’s Guide
- Manufacturer's Documentation
- 1-Year Manufacturer's Warranty
Whether your lab requires a 1nm resolution for finer spectral detail or a broader 2nm setting, SCILOGEX’s SCI-510XUV series provides reliable performance, user-friendly controls, and advanced capabilities for a wide range of spectrophotometric analyses.
