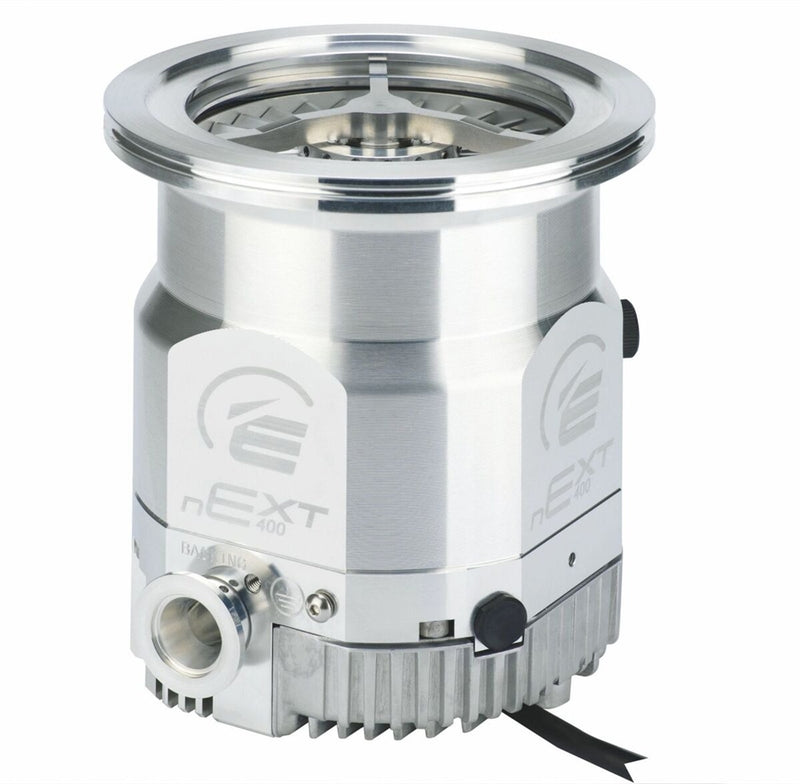

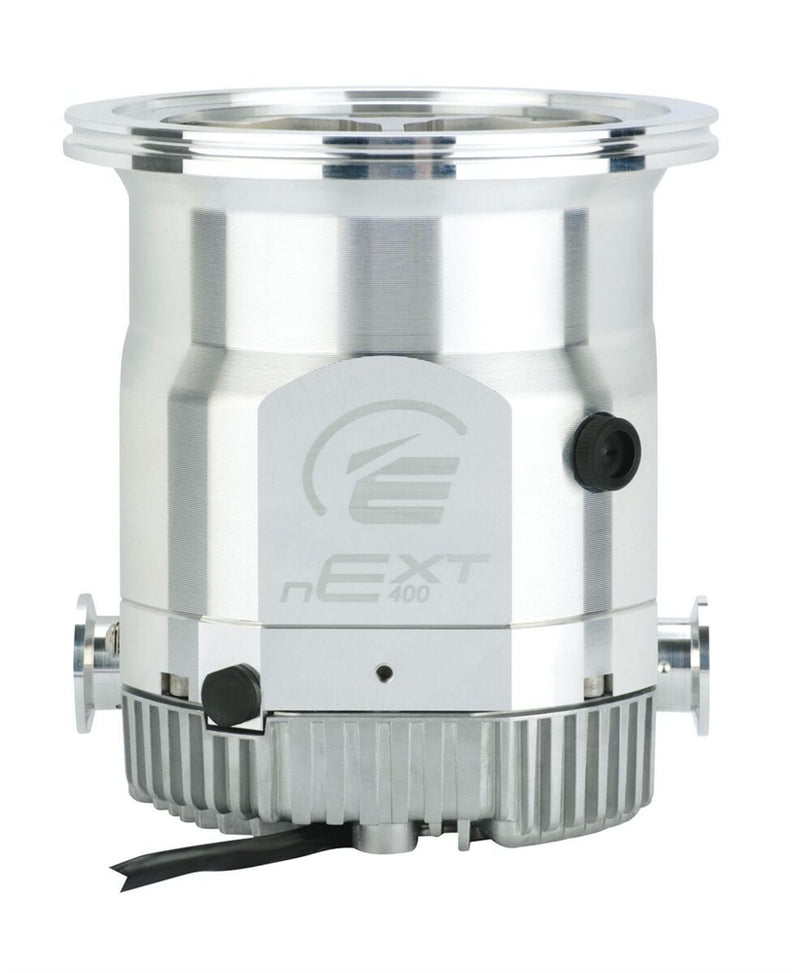

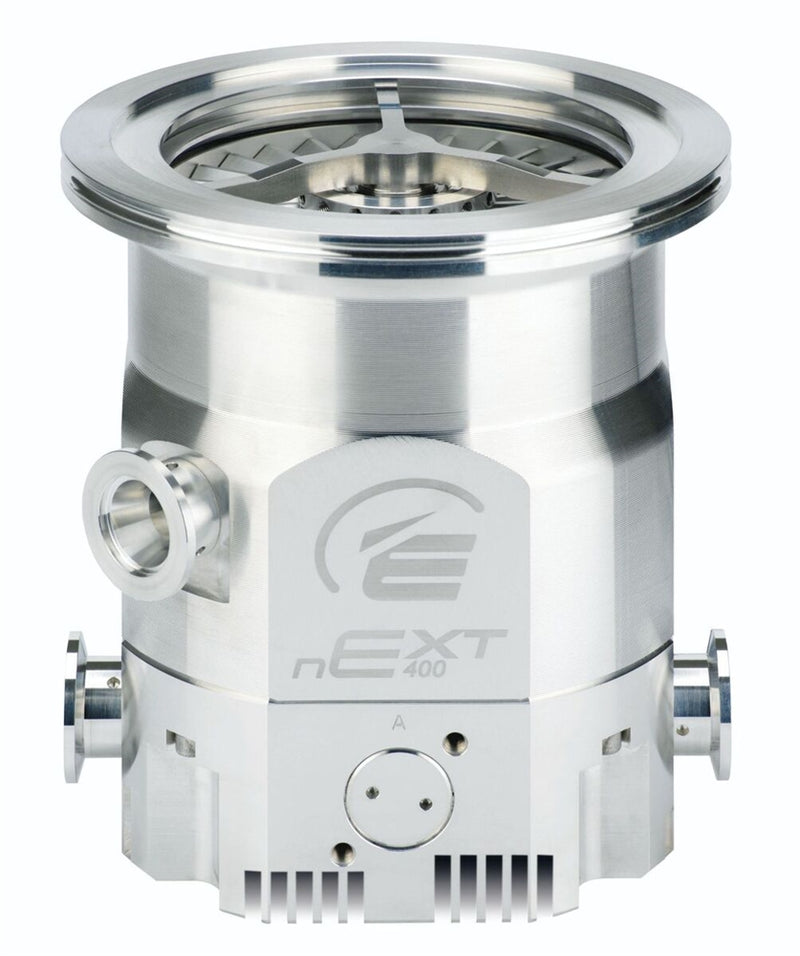

Edwards nEXT400T HC - ISO160 160W Turbomolecular Pump is a high-performance turbopump engineered for demanding vacuum applications across research, high-energy physics, mass spectrometry, and advanced industrial processes. It delivers exceptional pumping speed, low ultimate pressures, and is designed for long-term reliability with minimal maintenance.
Key Features:
- Ultimate Vacuum: 1 x 10-8 mbar
- Pumping Speed: Up to 2400 l/min (N2)
- Hybrid bearing design with oil-lubricated ceramic lower bearing and dry permanent magnetic upper bearing for clean operation
- Patented bearing suspension minimizes noise and vibration
- Integrated electronics for direct compatibility with Edwards TAG and TIC controllers
- User-serviceable oil and bearing cartridge changes with minimal tools
- Advanced rotor and drag stage design derived from simulation for improved performance
- Ideal for applications requiring high pumping speeds and deep vacuums
Included Items
- Edwards nEXT400T HC - ISO160 160W Turbomolecular Pump
- Power Cord
- Manufacturer’s Documentation
- 1-Year Manufacturer’s Warranty
Specifications
| Power Total Rated | 160 W |
| Pumping Speed (N₂) | 2399.99 l/min |
| Ultimate Pressure | 1 x 10-8 mbar |
| Backing Pressure Max | 15 Torr |
| Rotational Speed | 1000 Hz |
| Ramp Up Time | 200 s |
| Compression Ratio (N₂) | 1 × 10¹¹ |
| Compression Ratio (He) | 1 × 10⁸ |
| Compression Ratio (H₂) | 1 × 10⁶ |
| Pumping Speed (He) | 2339.99 l/min |
| Pumping Speed (H₂) | 1949.99 l/min |
| Flow Volume Gas Ballast Purge | 0.045 Pa·m³/s |
| Inlet Connection | DNISO160-K |
