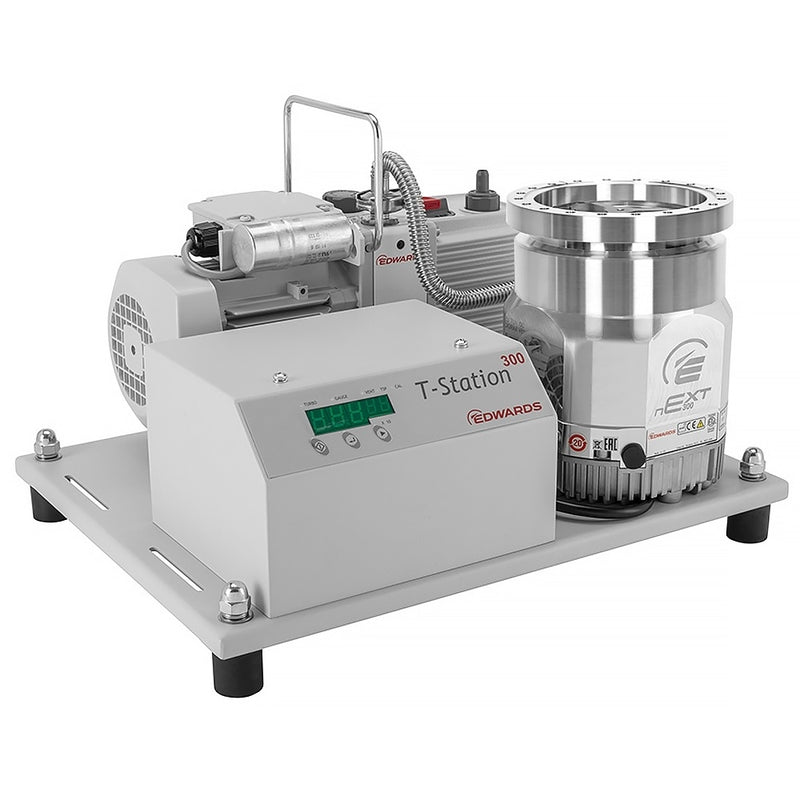

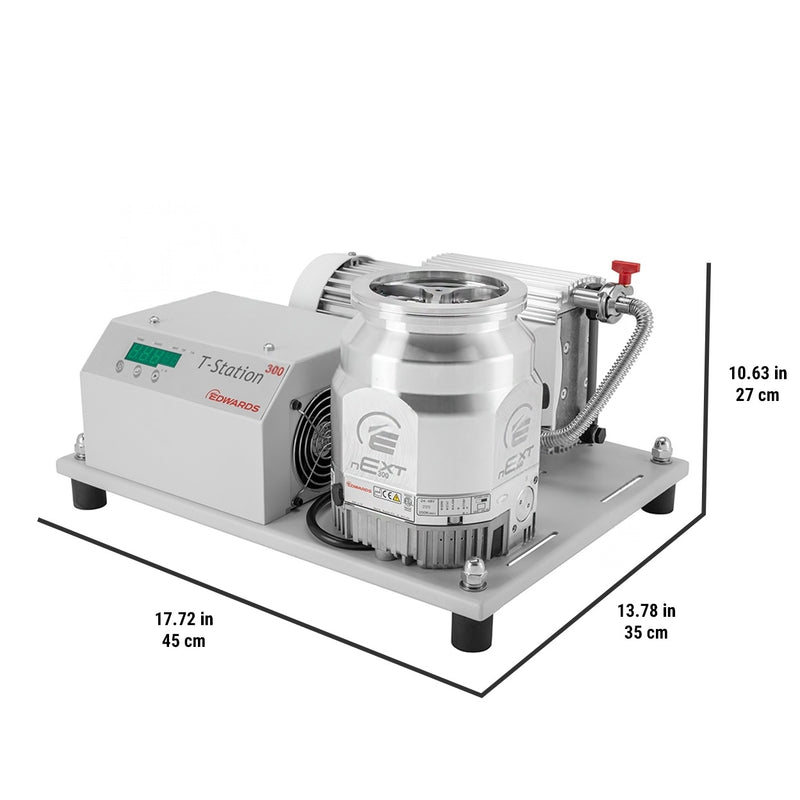

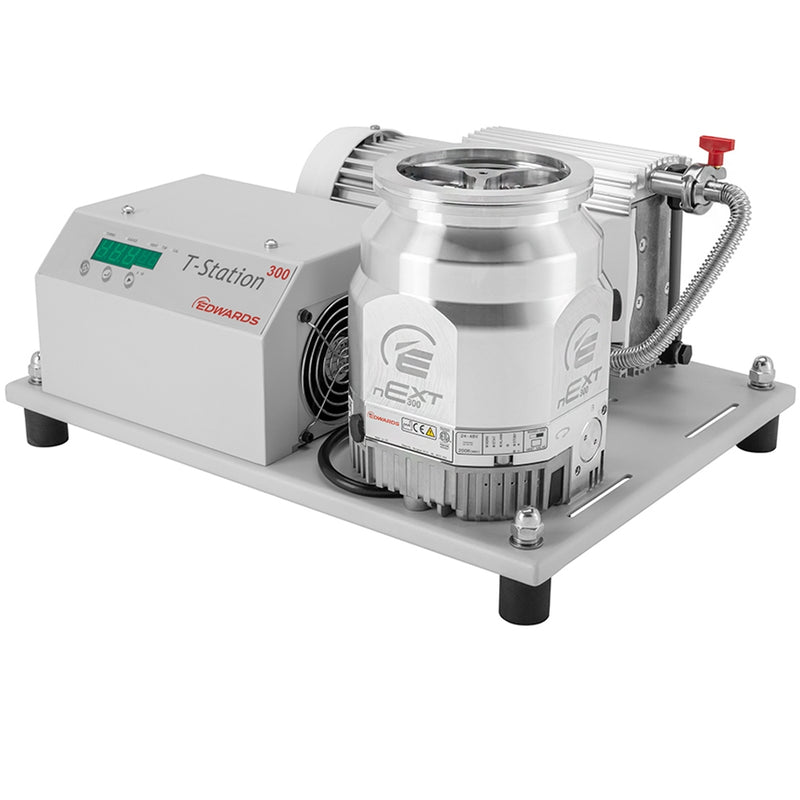

Edwards T-Station 300D Dry Turbo Station ISO100 is a powerful, compact turbomolecular pumping station designed to deliver exceptional vacuum performance in laboratory and industrial applications. Built on the proven T-Station platform and equipped with the nEXT300D turbomolecular pump, this station offers high pumping speeds and ultimate pressures, making it ideal for demanding environments.
Key Features:
- Ultimate Pressure: <6×10⁻⁸ mbar
- Pumping Speed: 300 l/s
- Inlet Connection: DN 100 ISO-K
- Color touchscreen with graphical display and audible leak detection for user-friendly operation
- Wireless models support simultaneous control of up to 10 leak detectors
- Lightweight design with integrated handles for easy benchtop or trolley mounting
- Efficiently pumps down large contaminant flows, compatible with ELD500 and FLEX variants
- Standard sniffer line operates up to 4 m; optional extender supports up to 50 m
- Plug-and-pump simplicity with no additional systemization or air cooling required
- Low noise operation at <56 dB(A) for quieter laboratory environments
Included Items
- Edwards T-Station Pumping Station Base
- XDD1 Diaphragm Backing Pump
- nEXT300D Turbomolecular Pump with ISO100 Inlet
- All required tubing and cables for turn-key operation
- Operator’s Manual
- Manufacturer’s Documentation
- 1-Year Manufacturer’s Warranty
Specifications
| Ultimate Vacuum | <6×10⁻⁸ mbar |
| Pumping Speed | 300 l/s |
| Compression Ratio for N₂ | >1×10¹¹ |
| Backing Pump Speed | 1.2 m³/h (50 Hz) |
| Exhaust Flange | Fitted silencer or ⅛" BSP |
| Leak Tightness | <1×10⁶ mbar l/s |
| Operating Temperature Range | 12 to 40°C |
| Noise Level | <56 ± 3 dB(A) |
| Inlet Connection | DN 100 ISO-K |
| Electrical Requirements | 100-120V, 50/60 Hz, 1Ph |
