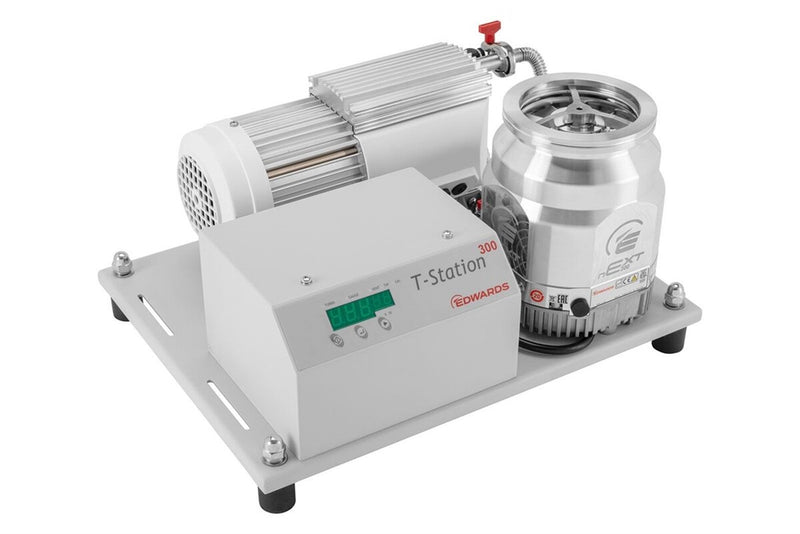

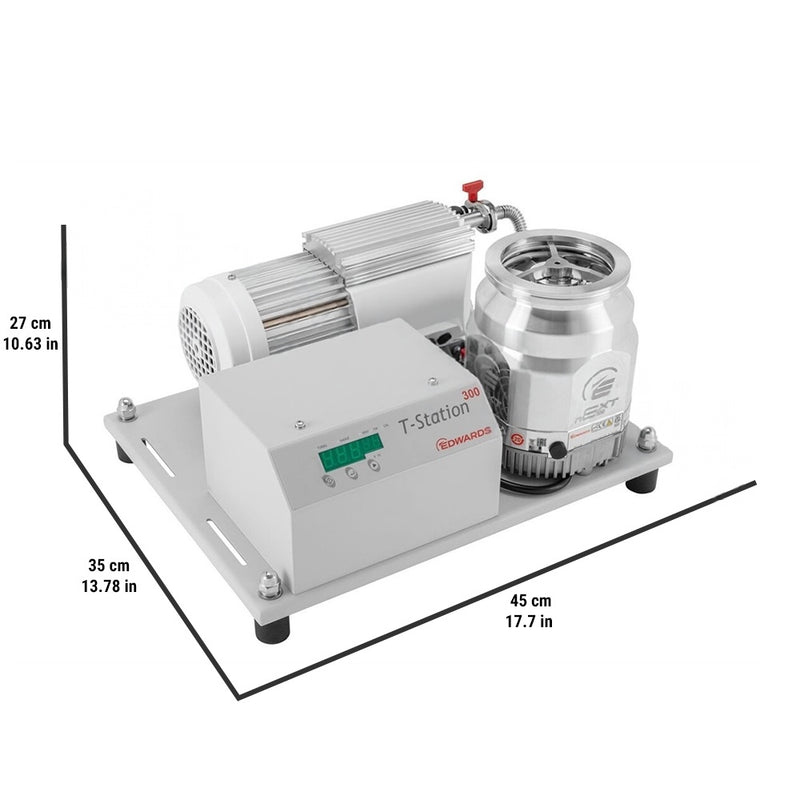

Edwards T-Station 300D Dry Turbo Station ISO100 is a high-performance turbomolecular pumping station designed to deliver exceptional vacuum performance in research, development, and industrial applications. This station combines advanced pumping technology with intuitive controls, ensuring reliable operation even under demanding conditions.
Key Features:
- Ultimate Pressure: < 6×10⁻⁸ mbar
- Pumping Speed: 300 l/s
- Color touchscreen control with local graphical display and audible leak detection
- Wireless models can control up to 10 leak detectors simultaneously
- Lightweight design with integrated carry handles for benchtop or trolley mounting
- Handles large contaminant flows, fully compatible with ELD500 and FLEX variants
- Standard sniffer line allows operation up to 4m from the ELD500, extendable to 50m
- Integrated Turbo and Active Gauge controller for one-button start/stop
- Delayed turbo start by time or pressure, plus vent valve control
- Built-in 180° mass spectrometer ensures class-leading detection capability
About the nEXT T-Station Range
Edwards’ nEXT turbomolecular pumping stations are comprehensive, ready-to-run systems that integrate nEXT turbomolecular pumps with user-serviceable backing pumps. The T-Station 300 builds upon the proven T-Station 85 platform, offering a higher pumping speed via the nEXT300 turbomolecular pump. It is ideal for advanced laboratory and R&D applications requiring higher capacity vacuum solutions.
Included Items
- Edwards T-Station 300D Dry Turbo Station ISO100, 200-240V
- Manufacturer’s Documentation
- One-Year Manufacturer’s Warranty
Specifications
| Ultimate Pressure | <6×10⁻⁸ mbar |
| Pumping Speed | 300 l/s |
| Compression Ratio for N₂ | >1×10¹¹ |
| Inlet Connection | DN 100 ISO-K |
| Exhaust Flange | 11 mm OD nozzle or ⅜" BSP |
| Leak Tightness | <1×10⁻⁶ mbar l/s |
| Noise Level | <56 ± 3 dB(A) |
| Operating Temperature | 12 to 40°C |
| Electrical Requirements | 200-240V, 50/60Hz, 1Ph |
