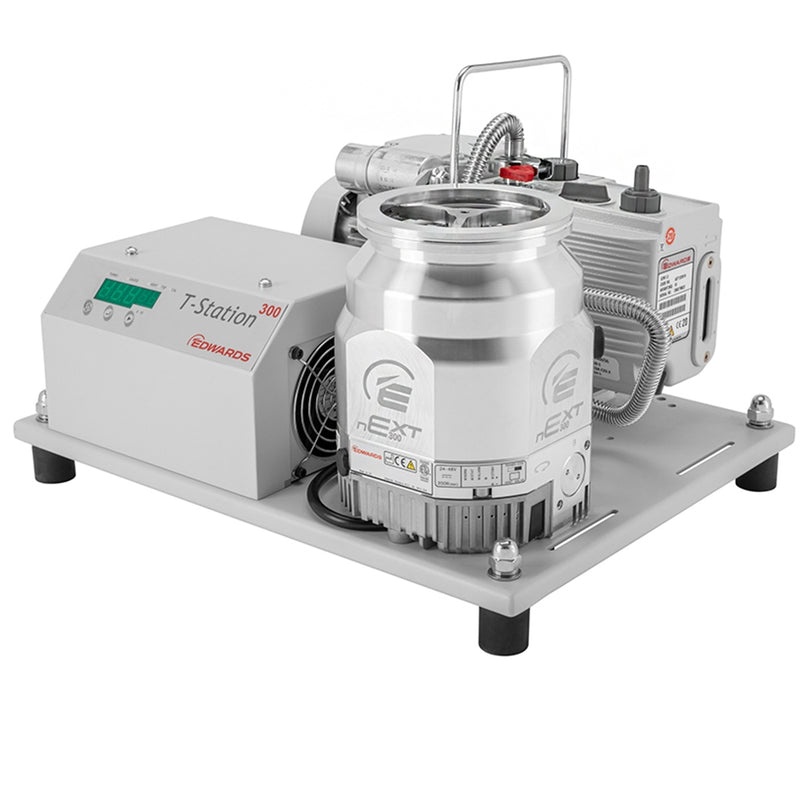

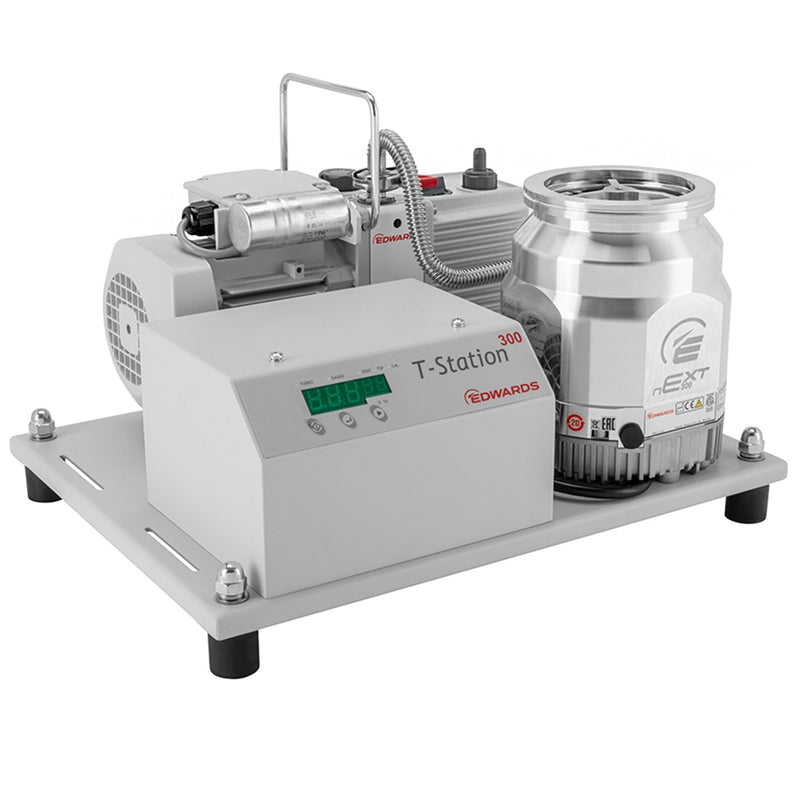

Edwards T-Station 300D Wet Turbo Station ISO100, 100-120V

Edwards T-Station 300D Wet Turbo Station ISO100 offers a compact, high-performance vacuum pumping solution designed for demanding applications that require fast, efficient evacuation and a higher pumping speed of up to 300 l/s. Built on the proven T-Station platform, this system combines a rugged, user-serviceable turbomolecular pump with a reliable backing pump, all in a plug-and-play package for straightforward operation.

Key Features:

• Ultimate Vacuum: <6×10⁻⁸ mbar
• Pumping Speed: 300 l/s
• Inlet Connection: DN 100 ISO-K
• Single dedicated button for starting/stopping pumps with an easy-to-read, accurate display

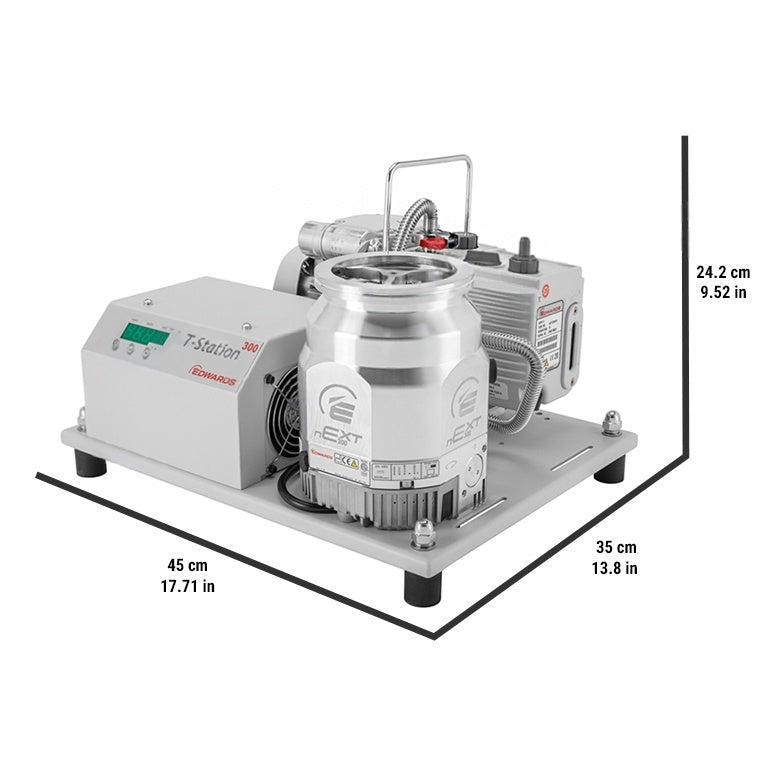

• Compact base plate with rubber feet and cut-outs for manual handling
• Quiet operation with integrated air cooling for internal components, eliminating the need for multiple fans
• All-metal, rugged frame design ensures durability under heavy use
• Fully user-serviceable pumps, including the nEXT300 turbomolecular pump, XDD1 dry diaphragm pump, and E2M1.5 backing pump
• Available with NW40, ISO63, or CF63 flanges (this model features ISO100)
• Delivered fully assembled for true plug-and-pump functionality—no additional systemization required

Included Items

• Edwards T-Station Pumping Station Base
• E2M1.5 Rotary Vane Pump
• nEXT300D Turbomolecular Pump with ISO100 Inlet
• All necessary tubing and cables for turnkey operation
• Operator’s Manual
• 1-Year Manufacturer’s Warranty
• Manufacturer’s Documentation

Specifications
