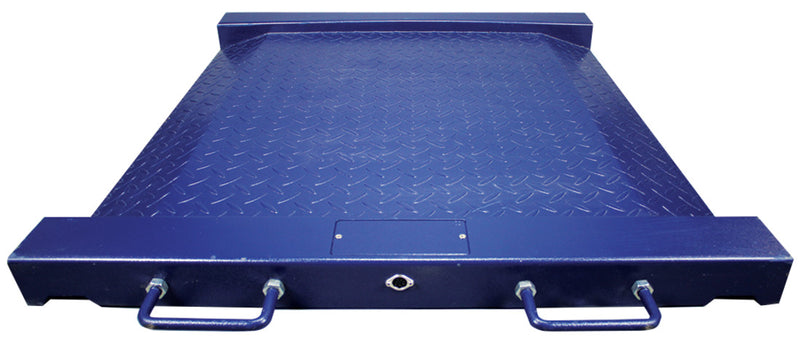

PTM Drum and Wheelchair Platforms are designed for easy and accessible weighing of wheelchair users, barrels, and oversized containers. With ramps on both sides and a low-profile platform, PTM ensures smooth transitions for users or equipment, whether in a healthcare or warehouse setting.

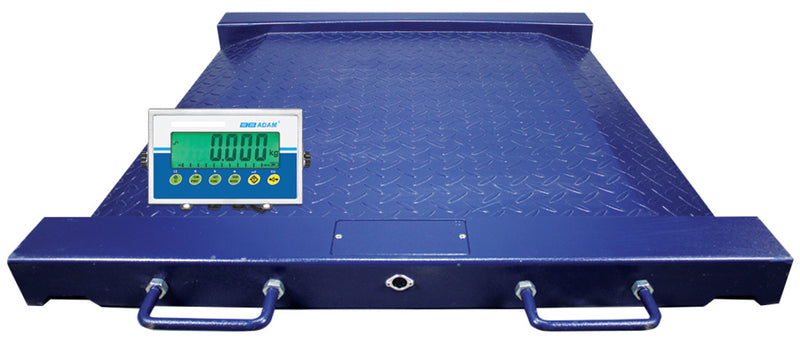

The PTM features diamond-plate texture for traction, integrated wheels for portability, and compatibility with several indicators to meet specific weighing and checkweighing needs. Pair it with the GK for numeric tare input, or choose the AE 403 for use in dusty and wet environments (IP68 rated).
Specifications
| Model | Capacity | Readability | Pan Size |
|---|---|---|---|
| PTM 500 | 1100lb / 500kg | 0.2lb / 0.1kg | 22.8" x 29.9" / 580 x 760mm |
| PTM 500 [AE403a] | 1100lb / 500kg | 0.2lb / 0.1kg | 22.8" x 29.9" / 580 x 760mm |
| PTM 500 [AE503] | 1100lb / 500kg | 0.2lb / 0.1kg | 22.8" x 29.9" / 580 x 760mm |
| PTM 500 [GK-S] | 1100lb / 500kg | 0.2lb / 0.1kg | 22.8" x 29.9" / 580 x 760mm |
| PTM 500 [GK-Plus] | 1100lb / 500kg | 0.2lb / 0.1kg | 22.8" x 29.9" / 580 x 760mm |
Key Features
- Low-profile design with ramps on both sides for wheelchair or trolley access
- Diamond-plate surface ensures slip resistance
- Heavy-duty rubber feet for stability
- Approximately 3-meter/10-foot shielded load cell cable
- Integrated wheels and handles allow for portability
- Adam Connect compatible for wireless data communication
- 3-year manufacturer warranty
Accessories
- RS-232 to AE 403 Cable (6 ft) – Item: 3014012701
- Calibration Certificate – Item: 700660289
- RS-232 to USB Adapter – Item: 3074010507
- Indicator Stand – Item: 2050013351
- USB Cable A-B – Item: 3074010267
Accessories sold separately.
