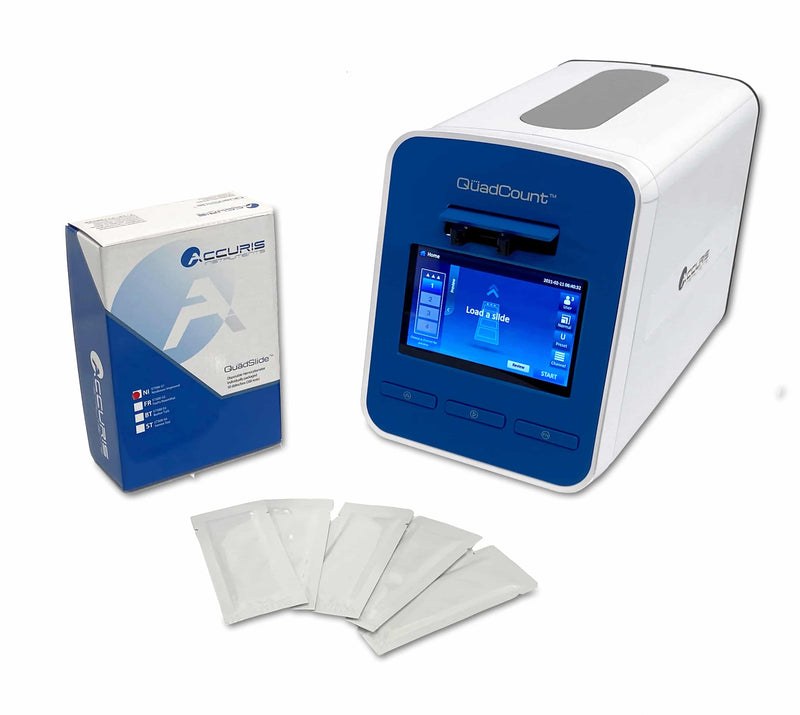

Accuris QuadCount™ Automated Cell Counter enhances traditional brightfield microscopy with smart automation, precision optics, and advanced software for highly accurate and efficient cell counting. Capable of analyzing up to four samples simultaneously, QuadCount reduces consumable costs while dramatically improving speed and reproducibility compared to manual hemocytometry.
Ideal for labs requiring reliable, high-throughput cell counts, QuadCount delivers consistent results in just seconds with minimal user input.
Specifications
Core Capabilities:
- Illumination: Green LED (50,000 hour life)
- Image Detection: 5MP CMOS Sensor (2592 x 1944 resolution)
- Objective Lens: High-quality 4x
- Cell Size Range: 5 to 60 µm
- Sample Volume: Up to 20 µL per QuadSlide™ (4 chambers)
- Max Counting Volume: 3.6 µL (24 image captures)
- Dynamic Range: 1 x 10⁴ to 1 x 10⁷ cells/mL
- Data Output: USB drive export (PDF report format)
- Dimensions: 6.4 x 11.5 x 8.5 in (16.3 x 29.3 x 21.6 cm)
- Weight: 11 lbs
- Electrical: 115V or 230V, 50/60Hz
Counting Modes:
- Quick Mode: 0.15 µL / 20 sec (1 image)
- Normal Mode: 0.9 µL / 30 sec (6 images)
- Precise Mode: 3.6 µL / 100 sec (24 images)
Technology & Automation:
- Motorized XYZ stage for ultra-fine focusing and precision image capture
- Autofocus system ensures proper focal plane and reduces error
- Software eliminates human bias and user-to-user variation
- Handles irregular and aggregated cells with advanced detection algorithms
Accessories
- USB Flash Drive
- Power Cord
- Operator’s Guide
- Manufacturer’s Documentation
- 1-Year Manufacturer’s Warranty
Why Choose the QuadCount™?
- Analyzes 4 samples at once—twice the capacity of standard 2-chamber systems
- Fast counts: as little as 20 seconds per sample
- Reduces consumable costs using QuadSlide™ with hydrophilic grid design
- Removes subjective errors with intelligent image analysis
- Accurate, high-throughput results in a compact benchtop footprint
