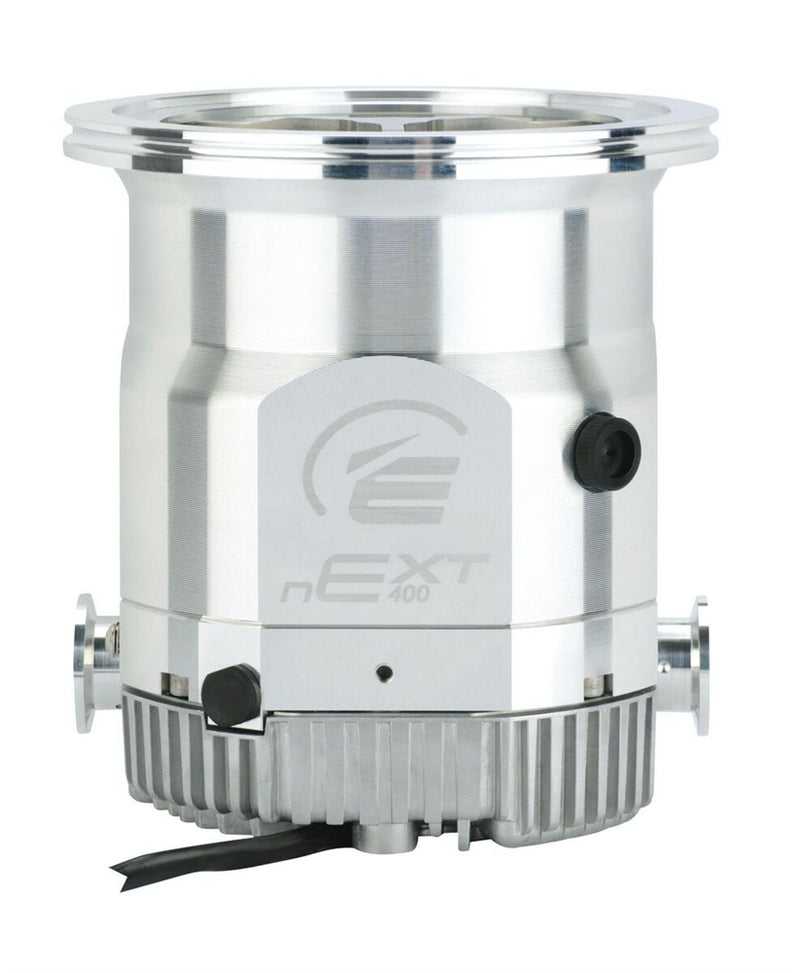

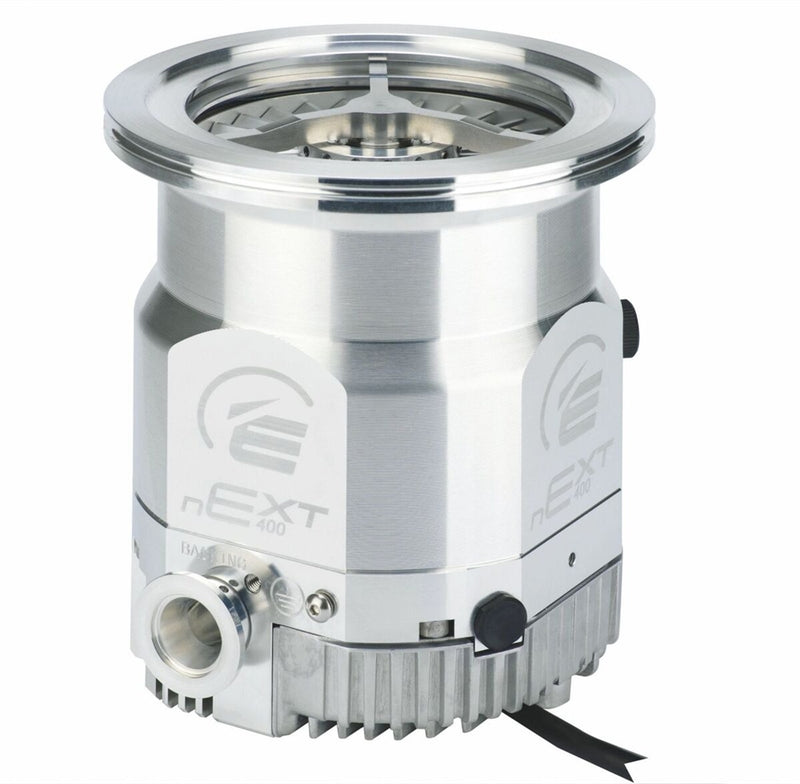

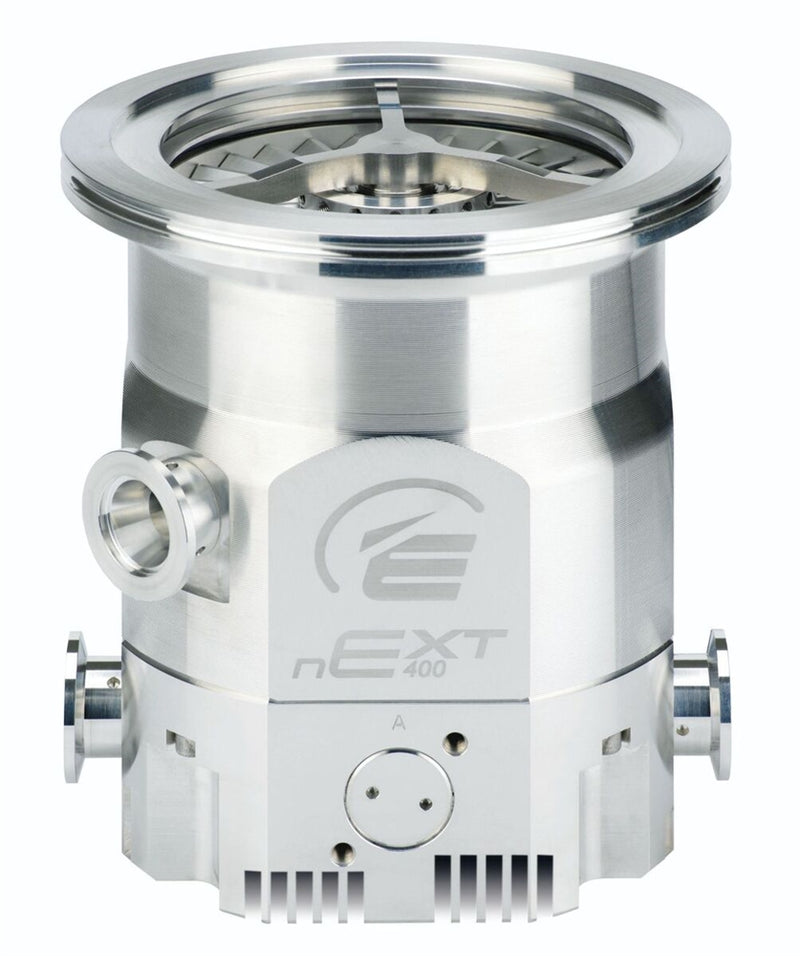

Edwards nEXT400T HC - CF160 160W Turbomolecular Pump delivers exceptional vacuum performance with advanced hybrid bearing technology, combining an oil-lubricated ceramic lower bearing with a permanent magnetic upper bearing for unmatched reliability and minimal maintenance.
Key Features:
- Ultimate Vacuum: <1 x 10-10 mbar
- Pumping Speed: 2399.99 l/min (N₂)
- Oil-lubricated ceramic lower bearing paired with a dry permanent magnetic upper bearing ensures high speeds, low vibration, and long life
- Patented bearing suspension minimizes noise and enhances operational stability
- Integrated electronics for seamless use with Edwards TAG and TIC controllers
- Allows in-field oil and bearing cartridge replacements with minimal tools
- Optimized rotor design with molecular drag stage for improved pumping speed and compression ratios
- Ideal for research labs, high-energy physics, mass spectrometry, and demanding industrial applications
Included Items
- Edwards nEXT400T HC - CF160 Turbomolecular Pump
- Power Cord
- Manufacturer's Documentation
- 1-Year Manufacturer’s Warranty
Specifications
| Power Total Rated | 160 W |
| Pumping Speed (N₂) | 2399.99 l/min |
| Ultimate Vacuum | <1 x 10-10 mbar |
| Power at Ultimate (Quiescent) | 0.000 W |
| Pressure Backing Max | 15 Torr |
| Rotational Speed | 1000 Hz |
| Ramp Up Time | 200 s |
| Compression Ratio N₂ | 1 × 10¹¹ |
| Compression Ratio He | 1 × 10⁸ |
| Compression Ratio H₂ | 1 × 10⁶ |
| Pumping Speed He | 2339.99 l/min |
| Pumping Speed H₂ | 1949.99 l/min |
| Flow Volume Gas Ballast Purge | 0.045 Pa·m³/s |
| Inlet Connection | DN160CF |
