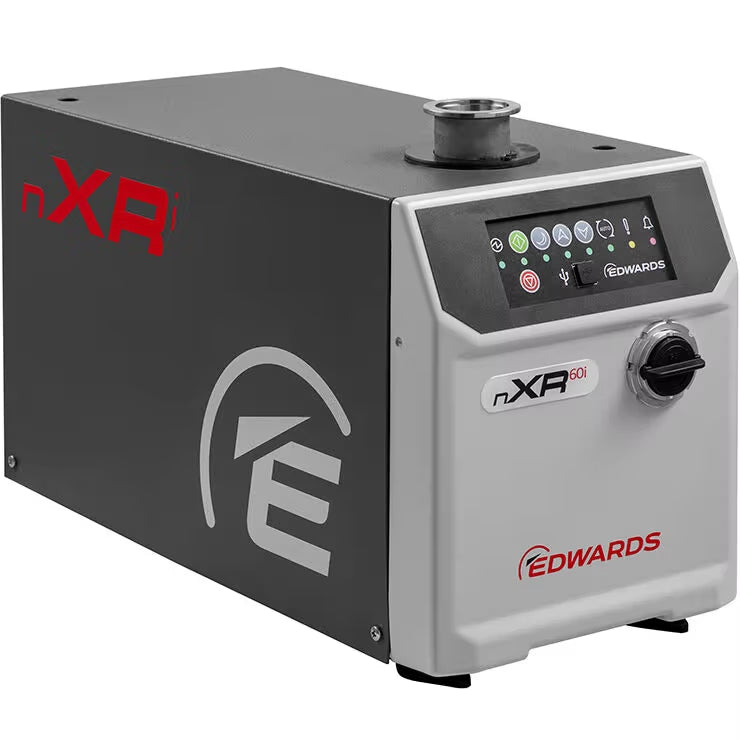

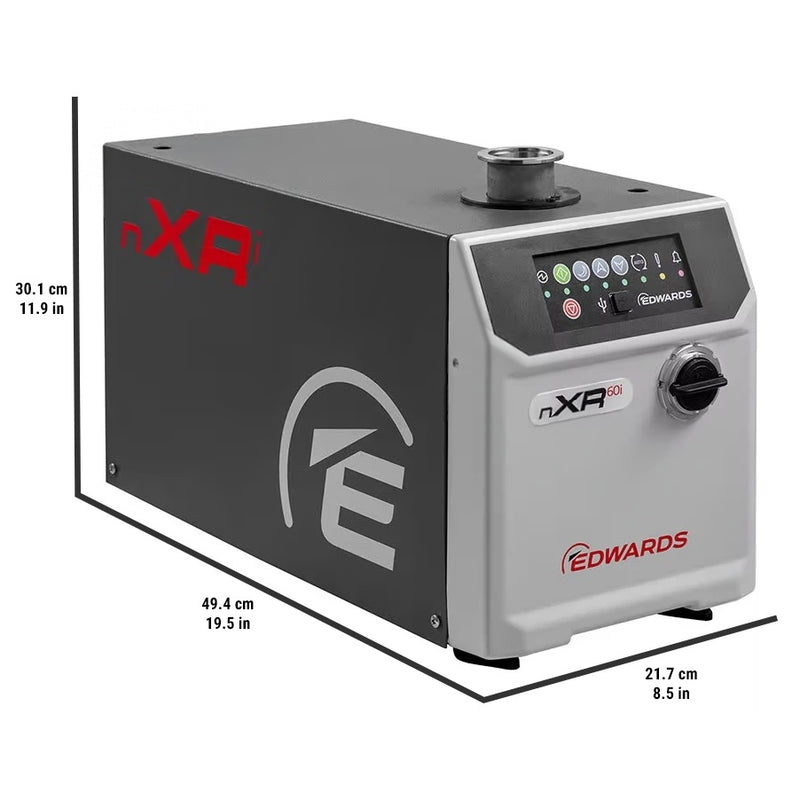

Edwards nXR60i NW25 Multi Stage Roots Dry Pump sets a new benchmark for compact, high-performance vacuum technology. With a peak pumping speed of 60 m³/h and ultimate vacuum of 0.03 mbar (0.022 Torr), this pump delivers exceptional efficiency for demanding laboratory, analytical, and industrial applications.
Key Features:
- Peak Pumping Speed: 60 m³/h ensures rapid, efficient vacuum operations
- Ultimate Vacuum: Achieves 0.03 mbar (0.022 Torr) for high-precision applications
- Compact design fits under benchtops, maximizing lab space
- Oil-free, clean operation minimizes contamination risks and maintenance
- Exceptional leak tightness < 1x10⁻⁶ mbar l/s guarantees vacuum integrity
- Lightweight at only 29 kg (64 lbs) for easy installation and relocation
- Operates quietly at 55 dB(A), supporting a comfortable work environment
- Flexible for R&D, mass spectrometry, electron microscopy, and leak detection systems
- Low power consumption (450 W at ultimate), reducing operational costs
- Simple to set up and run, accessible to users of all experience levels
Included Items
- Edwards nXR60i NW25 Multi Stage Roots Dry Pump
- Operator's Manual
- Manufacturer’s Documentation
- 1 Year Manufacturer's Warranty
Specifications
| Peak Pumping Speed | 60 m³/h |
| Ultimate Vacuum | 0.03 mbar (0.022 Torr) |
| Inlet Flange | NW40 |
| Outlet Flange | NW25 |
| Max. Outlet Pressure | 0.2 bar gauge / 1013 mbar |
| Operating Temperature | +5 to +40°C (+41 to +104°F) |
| Nominal Speed | 15,000 rpm |
| Power at Ultimate | 450 W |
| Mains Frequency | 50/60 Hz |
| Power Connector | IEC EN60320 C19 (1-ph) |
| Electrical Requirements | 100-127/200-240V, 50/60Hz, 1Ph (+/-10%), switchable |
| Leak Tightness | < 1x10⁻⁶ mbar l/s |
| Noise Level | 55 dB(A) |
| Vibration at Inlet | < 2.0 mm/s |
| Weight | 29 kg (64 lbs) |
