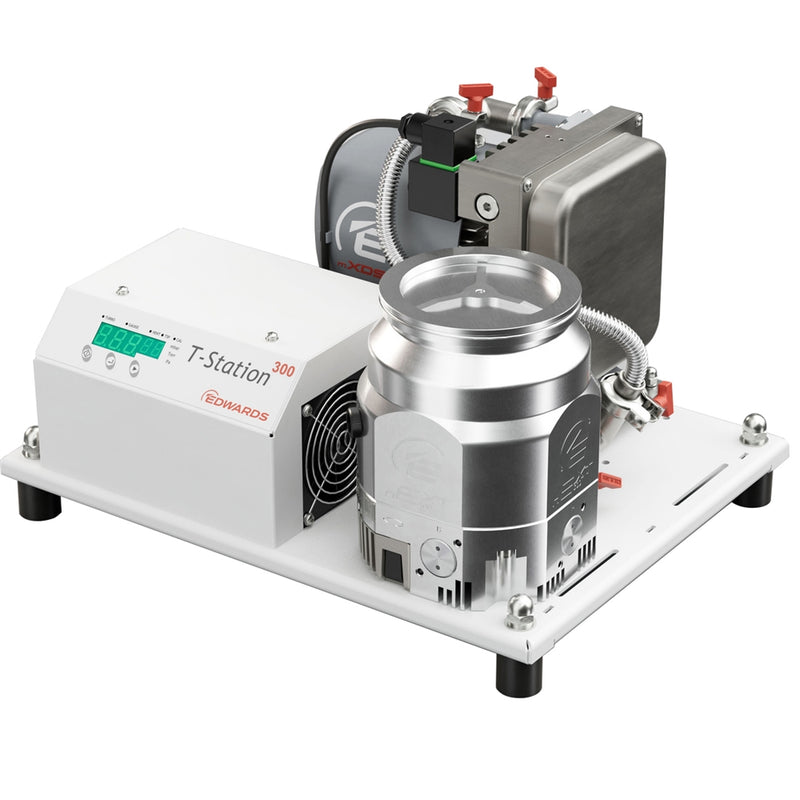

Edwards T-Station 300 Dry Turbo Station ISO100 mXDS3s, 115V offers a powerful, compact, and fully integrated vacuum pumping solution designed for seamless operation straight out of the box. With the latest turbomolecular and scroll pump technologies, it delivers exceptional vacuum performance in a wide range of demanding applications.
Key Features:
- Ultimate Pressure: < 6 × 10⁻⁸ mbar
- Pumping Speed: 300 l/s (H2 at 280 l/s)
- Inlet Connection: DN 63 ISO-K
- Integrated system with mXDS3s dry scroll backing pump and nEXT300 turbomolecular pump
- Compact, bench-friendly footprint ideal for labs and industrial setups
- Push-button operation—ready to use immediately, no complex setup required
- Low noise operation: < 56 ±3 dB(A)
- Wide operating temperature range: 12°C to 40°C
- User-serviceable design minimizes downtime and maintenance costs
- Leak tight construction <1 × 10⁻⁶ mbar l/s ensures high system integrity
Included Items
- T-Station Pumping Station Base
- Edwards mXDS3s Dry Scroll Pump
- nEXT300 Turbomolecular Pump with ISO100 Inlet
- All necessary tubing and cables for plug-and-play operation
- Operator’s Manual
- Manufacturer’s Documentation
- 1-Year Manufacturer’s Warranty
Specifications
| Ultimate Vacuum | <6×10⁻⁸ mbar |
| Pumping Speed | 300 l/s |
| Pumping Speed for H2 | 280 l/s |
| Compression Ratio for N2 | >1×10¹¹ |
| Backing Pump Speed (50 Hz) | 3 m³/h |
| Inlet Flange | DN 63 ISO-K |
| Exhaust Flange | 1/8 BSP for 6×8 mm |
| Noise Level | <56 ±3 dB(A) |
| Leak Tightness | <1×10⁻⁶ mbar l/s |
| Operating Temperature Range | 12°C to 40°C |
| Electrical Requirements | 100-120V, 50/60Hz, 1Ph |
