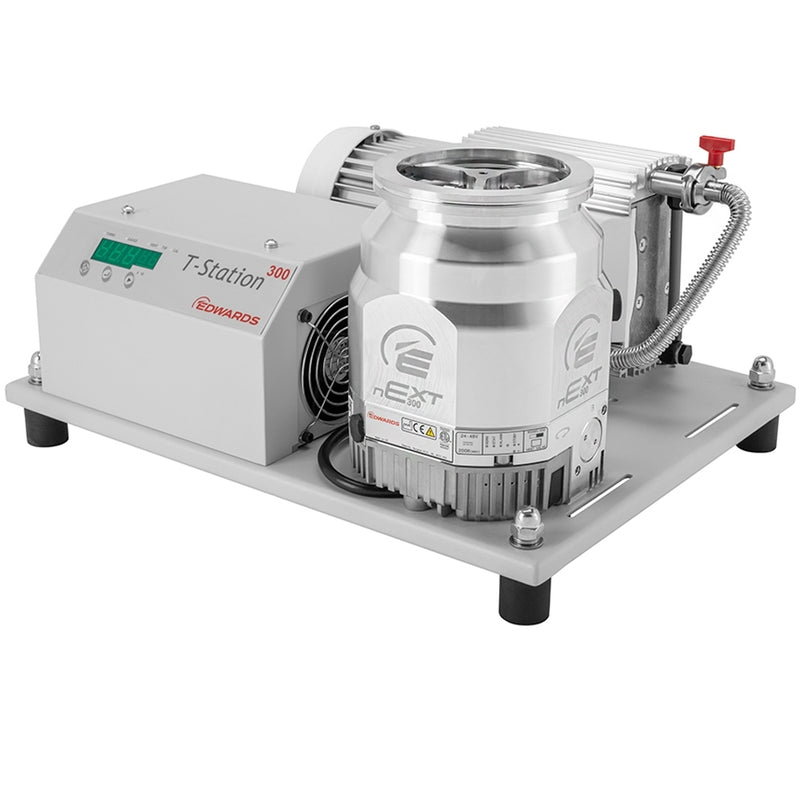

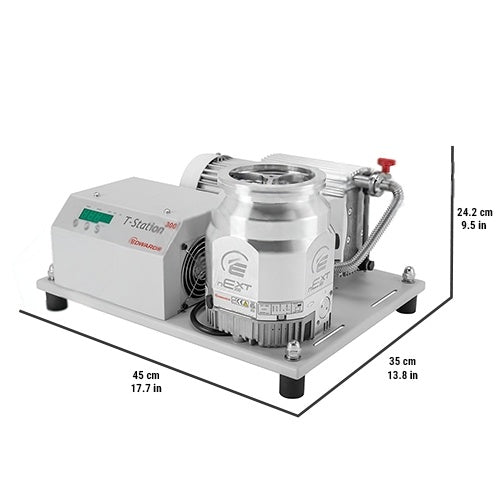

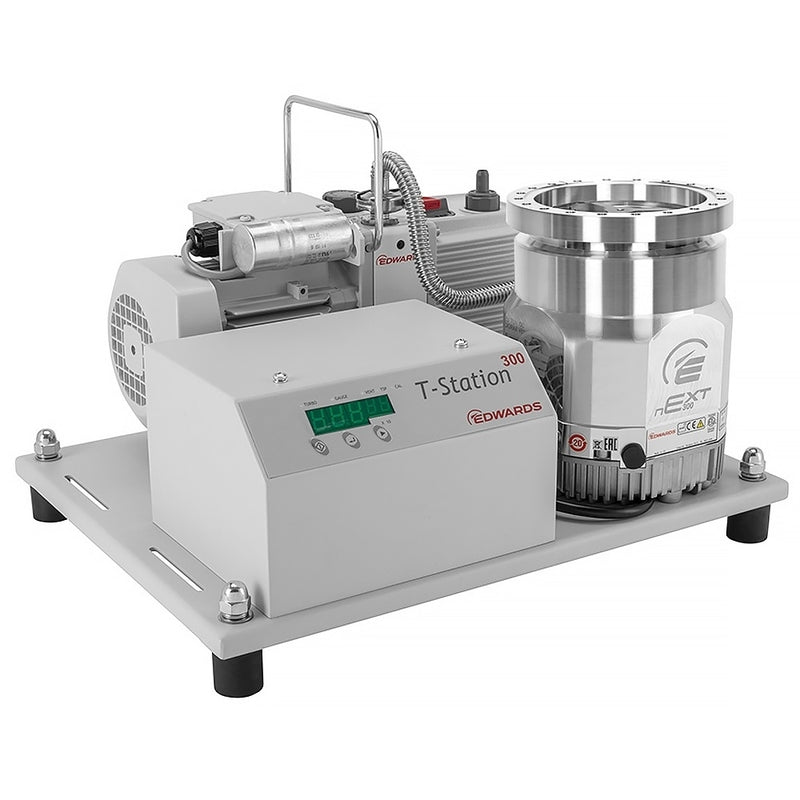

Edwards T-Station 300D Dry Turbo Station CF100, 200-240V

Edwards T-Station 300D Dry Turbo Station offers high-capacity, clean vacuum performance in a compact, easy-to-use system. Designed for demanding applications in R&D and advanced laboratory environments, this station integrates the powerful nEXT300 turbomolecular pump with user-friendly features and robust construction for long-term reliability.

Key Features:

• Ultimate Pressure: < 5×10^-10 mbar
• Pumping Speed: 300 l/s
• Integrated color touch screen for intuitive graphical control and local audible leak detection
• Wireless models support simultaneous control of up to 10 leak detectors
• Lightweight design with integrated carry handles for benchtop or trolley mounting
• Ideal for effective pump down of large contamination flows, compatible with ELD500 and FLEX systems
• Standard sniffer line allows operation up to 4m from ELD500, extendable up to 50m with additional interface
• Class-leading 180° mass spectrometer ensures highly accurate detection

nEXT T-Station Overview

Edwards’ nEXT T-Station turbomolecular pumping stations provide comprehensive, ready-to-run vacuum solutions straight out of the box. Both the T-Station 85 and the T-Station 300 include an integrated Turbo and Active Gauge controller for simple one-button start/stop, with vent valve control, active gauge support, and programmable delayed start by time or pressure. The T-Station 300 advances this platform with the nEXT300 turbopump, delivering a pumping speed up to 300 l/s—ideal for more demanding R&D and industrial processes.

Included Items

• Edwards T-Station 300D Dry Turbo Station CF100, 200-240V
• Manufacturer’s Documentation
• 1-Year Manufacturer’s Warranty

Specifications
