Professional Laboratory Sterilization Solution - 50L Capacity, 120V
Technical Specifications
Chamber Volume: 50L
Sterilization Temperature Range: 105°C to 135°C
Chamber Dimensions: 11.8" × 28" (30 × 71 cm)
Superior Performance & Advanced Features
Versatile Operation: 5 specialized modes (LIQUID, SOLID, WASTE, AGAR, DISSOLUTION) with 8 memory settings per mode for up to 40 custom cycles

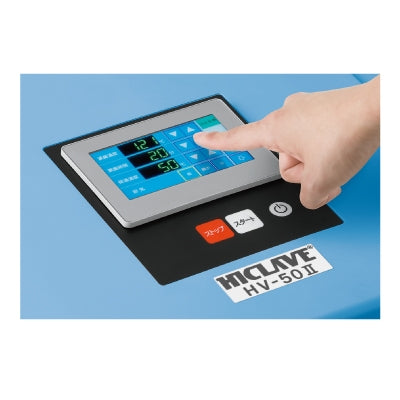

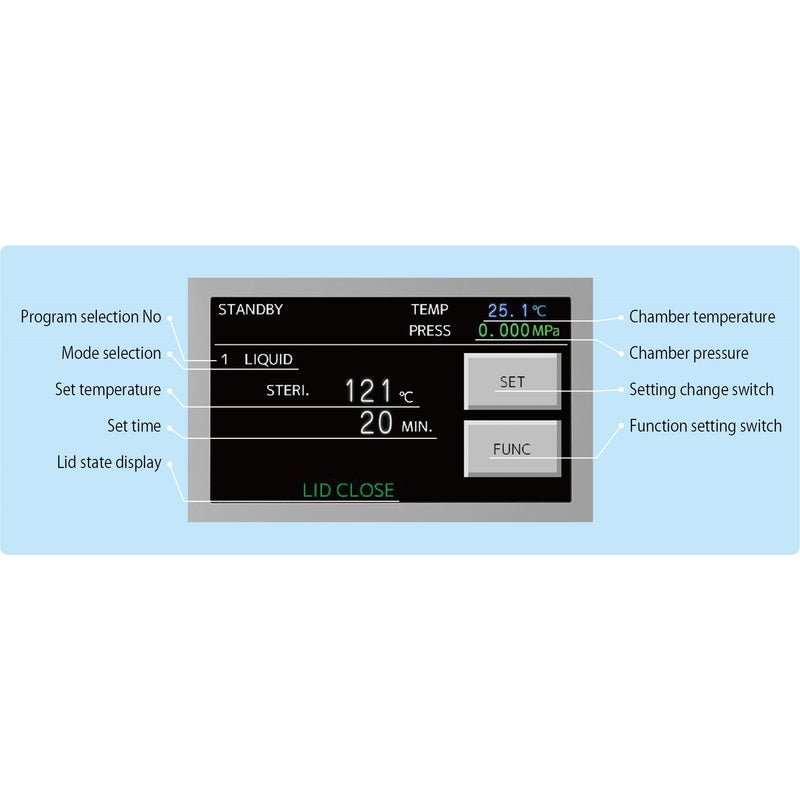

Intuitive Control: Color touchscreen interface with dual digital/analog displays for real-time monitoring
Enhanced Safety: Dual interlock mechanism secures lid based on both chamber pressure and temperature
Intelligent Monitoring: Comprehensive 11-alarm system with history display for maximum operational reliability

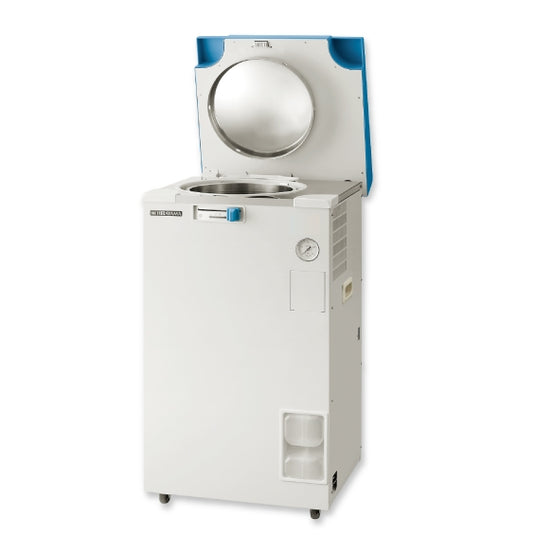

Efficient Design: Space-saving vertical lid opening with one-touch electro-mechanical lock system
Convenient Scheduling: Programmable auto-start functionality up to one week in advance
Consistent Results: Dual air removal system ensures thorough sterilization even with challenging loads
Reliable Performance: Memory backup system retains settings during power interruptions
Premium Construction: Durable stainless steel (SUS304) chamber for long-term dependability
Complete Package Includes
Bottom plate and wire mesh baskets (2)
Complete drainage system (hose, exhaust hose, exhaust bottle, drain bottle)
Caster stoppers (2)
Power cord
Comprehensive documentation
1-year manufacturer's warranty
The HICLAVE HV-50II delivers laboratory-grade sterilization with unprecedented convenience, safety, and reliability—making it the ideal solution for facilities with demanding sterilization requirements.
Specifications
Chamber Specifications
Specification
Details
Chamber Capacity
50L
Chamber Dimensions
11.8" × 28" (30 × 71 cm)
Chamber Material
Stainless Steel (SUS304)
Maximum Working Pressure
27 PSI (0.186 MPa)
Operation Modes & Programming
Feature
Specification
Operation Modes
5 modes: LIQUID, SOLID, WASTE, AGAR, DISSOLUTION
Memory Settings
8 memory slots per mode (40 total)
Auto-Start Function
Programmable from 1 minute to 1 week in advance
Exhaust Settings
3 levels: Without Exhaust, Fine Exhaust, Small Amount of Exhaust
Temperature Control
Mode
Temperature Range
Sterilization
105°C to 135°C (Variable)
Dissolution
60°C to 100°C
Warming
45°C to 60°C
Agar Dissolution
Heating: 60°C to 100°C (up to 1 hour)<br>Followed by cooling to 45°C to 60°C
Lid Lock Release
• LIQUID, AGAR, DISSOLUTION: 60°C to 95°C (Variable)<br>• SOLID, WASTE: 60°C to 97°C (Variable)
• Pressure safety valve<br>• Over-current and earth leakage breaker<br>• Low water cut-off device
Alarm System
• Low water heating<br>• Temperature sensor wire disconnection<br>• Over temperature/Over cool<br>• Over pressure<br>• Lid abnormality<br>• Abnormality in lid opening/closing lever
Physical Specifications
Specification
Details
Dimensions (W × D × H)
21.6" × 21" × 41" (54.7 × 53.2 × 104.6 cm)
Weight
132.3 lbs (60 kg)
Power Connection
Ring terminal
Electrical Requirements
120V 50/60 Hz, 2000W
Required Power Supply
2.0 kW
Pressure Vessel Category
Small sized pressure vessel
Accessories
Available for separate purchase
Stainless Steel Pails for 50L Autoclaves
Model
Dimensions
Features
ATA-50P3
10.7" D × 8.3" H
Shallow stainless steel pail, ideal for smaller items
ATA-50P2
10.7" D × 10.7" H
Standard stainless steel pail with balanced dimensions
Stainless Steel Baskets for 50L Autoclaves
Model
Dimensions
Features
ATA-50BSB1
10.5" D × 23.3" H
Tall basket with 5" solid bottom for specialized applications
ATA-50B2
10.7" D × 11.8" H
Medium-height standard mesh basket
ATA-50B3
10.7" D × 8.7" H
Low-profile mesh basket for shorter items
All accessories are precision-crafted from high-quality stainless steel for durability and corrosion resistance, ensuring long-term compatibility with your Hirayama HICLAVE HV-50II autoclave. These optional accessories must be purchased separately from the main unit.
