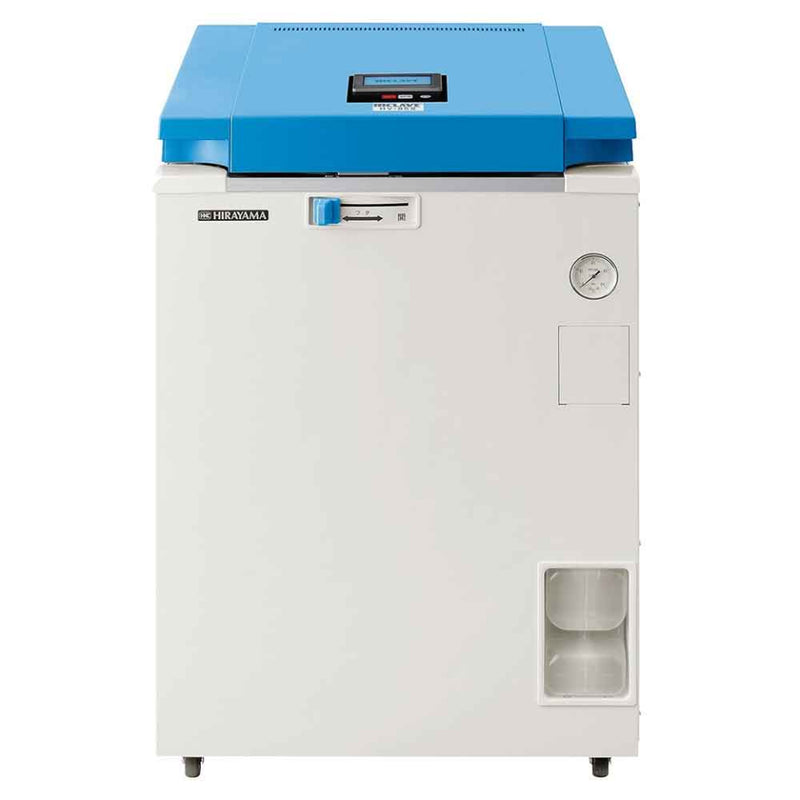

Hirayama HICLAVE HV-85II Floor-Standing Touchscreen Autoclave
High-Capacity Laboratory Sterilization Solution - 85L Capacity, 208/220/240V
Technical Specifications
- Chamber Volume: 85L
- Sterilization Temperature Range: 105°C to 135°C
- Chamber Dimensions: 16.5" × 24" (42 × 61.5 cm)
Superior Performance & Advanced Features
- High-Capacity Design: Spacious 85L chamber accommodates larger loads while maintaining efficient sterilization
- Versatile Operation: 5 specialized modes (LIQUID, SOLID, WASTE, AGAR, DISSOLUTION) with 8 memory settings per mode for up to 40 custom cycles

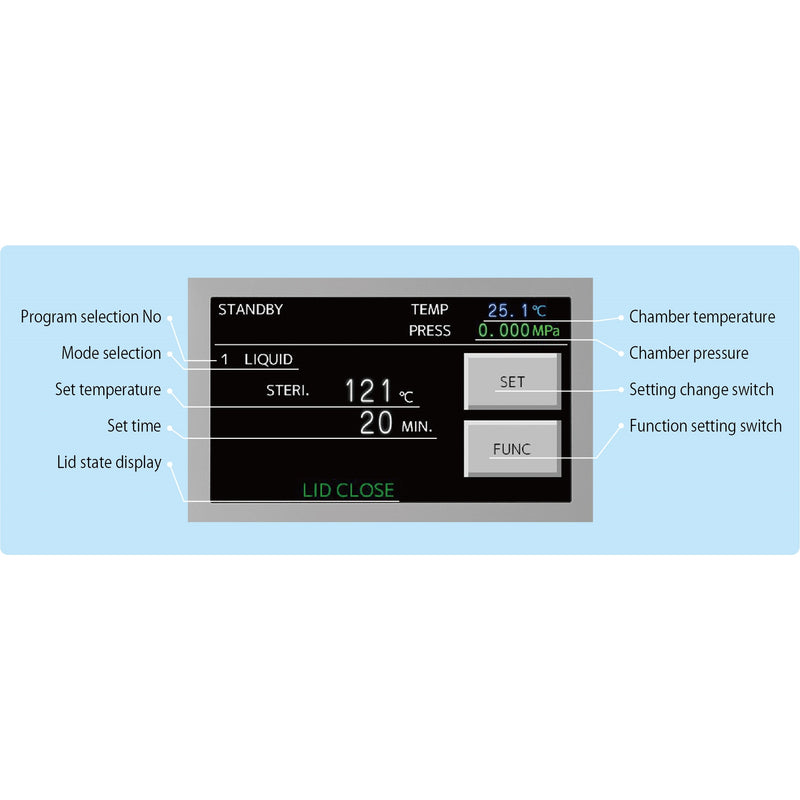

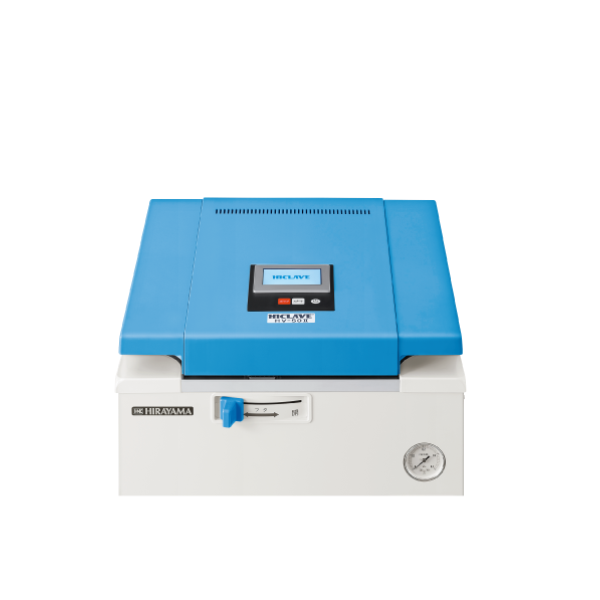

- Intuitive Control: Color touchscreen interface with dual digital/analog displays for real-time monitoring
- Enhanced Safety: Dual interlock mechanism secures lid based on both chamber pressure and temperature
- Intelligent Monitoring: Comprehensive 11-alarm system with history display for maximum operational reliability

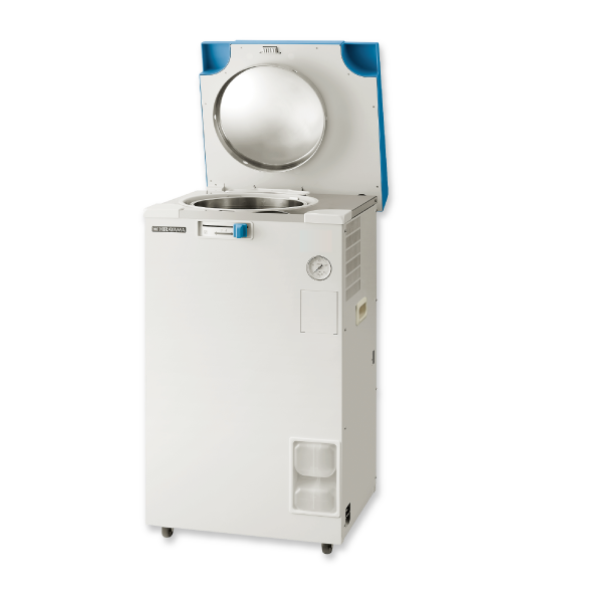

- Efficient Design: Space-saving vertical lid opening with one-touch electro-mechanical lock system
- Convenient Scheduling: Programmable auto-start functionality up to one week in advance
- Consistent Results: Dual air removal system ensures thorough sterilization even with challenging loads
- Reliable Performance: Memory backup system retains settings during power interruptions
- Premium Construction: Durable stainless steel (SUS304) chamber for long-term dependability
Complete Package Includes
- Bottom plate and wire mesh baskets (2)
- Complete drainage system (hose, exhaust hose, exhaust bottle, drain bottle)
- Caster stoppers (2)
- Power cord
- Comprehensive documentation
- 1-year manufacturer's warranty
The HICLAVE HV-85II delivers high-capacity laboratory-grade sterilization with unprecedented convenience, safety, and reliability—making it the ideal solution for facilities with demanding sterilization requirements and higher volume processing needs.
Specifications
Chamber Specifications
| Specification | Details |
|---|---|
| Chamber Capacity | 85L |
| Chamber Dimensions | 16.5" × 24" (42 × 61.5 cm) |
| Chamber Material | Stainless Steel (SUS304) |
| Maximum Working Pressure | 38 PSI (0.255 MPa) |
Operation Modes & Programming
| Feature | Specification |
|---|---|
| Operation Modes | 5 modes: LIQUID, SOLID, WASTE, AGAR, DISSOLUTION |
| Memory Settings | 8 memory slots per mode (40 total) |
| Auto-Start Function | Programmable from 1 minute to 1 week in advance |
| Exhaust Settings | 3 levels: Without Exhaust, Fine Exhaust, Small Amount of Exhaust |
Temperature Control
| Mode | Temperature Range |
|---|---|
| Sterilization | 105°C to 135°C (Variable) |
| Dissolution | 60°C to 100°C |
| Warming | 45°C to 60°C |
| Agar Dissolution | Heating: 60°C to 100°C (up to 1 hour)<br>Followed by cooling to 45°C to 60°C |
| Lid Lock Release | • LIQUID, AGAR, DISSOLUTION: 60°C to 95°C (Variable)<br>• SOLID, WASTE: 60°C to 97°C (Variable) |
Time Settings
| Function | Time Range |
|---|---|
| Sterilization | 1 to 250 minutes (with remaining time display) |
| Dissolution | 1 to 60 minutes (with remaining time display) |
| Warming | 20 hours (Fixed) |
| Air Removal | 6 to 18 minutes (Variable) |
Monitoring & Safety
| Feature | Specification |
|---|---|
| Temperature Display | Digital: 5.0°C to 137.9°C |
| Pressure Monitoring | Digital: 0 MPa - 0.3 MPa<br>Analog: 0 MPa - 0.4 MPa |
| Safety Devices | • Pressure safety valve<br>• Over-current and earth leakage breaker<br>• Low water cut-off device |
| Alarm System | • Low water heating<br>• Temperature sensor wire disconnection<br>• Over temperature/Over cool<br>• Over pressure<br>• Lid abnormality<br>• Abnormality in lid opening/closing lever |
Physical Specifications
| Specification | Details |
|---|---|
| Dimensions (W × D × H) | 26.4" × 26" × 40.6" (66.7 × 65.2 × 102.6 cm) |
| Weight | 182.9 lbs (83 kg) |
| Power Connection | Ring terminal |
| Electrical Requirements | 208V / 220V / 240V 50/60 Hz, 3000W |
| Required Power Supply | 3.0 kW |
| Pressure Vessel Category | Small sized pressure vessel |
Accessories
Available for separate purchase
Stainless Steel Pails for 85L Autoclaves
| Model | Dimensions | Features |
|---|---|---|
| ATA-85P2 | 15.3" D × 11" H | Standard stainless steel pail for high-capacity applications |
Stainless Steel Baskets for 85L Autoclaves
| Model | Dimensions | Features |
|---|---|---|
| ATA-85BSB1 | 15.3" D × 23.3" H | Tall basket with 4" solid bottom for specialized applications, compatible with 85/110L models |
| ATA-85B2 | 15.3" D × 11.5" H | Medium-height standard mesh basket |
| ATA-85B3 | 15.3" D × 7.5" H | Low-profile mesh basket for shorter items |
All accessories are precision-crafted from high-quality stainless steel for durability and corrosion resistance, ensuring long-term compatibility with your Hirayama HICLAVE HV-85II autoclave. These optional accessories must be purchased separately from the main unit.
Technical Specification Sheet
Please view the Specification sheet here
