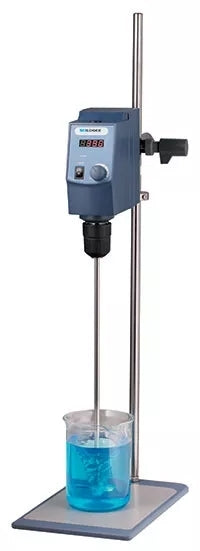

Scilogex OS40-S Overhead LED Digital Stirrer is a robust and efficient solution for medium- to high-viscosity liquid mixing. With a high torque output, digital LED speed display, and a maximum capacity of 40 liters, this stirrer is ideal for laboratory tasks requiring precision and reliability.
Key Features:
- Maximum Stirring Capacity: 40 Liters
- High Torque: 60 N·cm – ideal for viscous materials up to 50,000 mPas
- Speed Range: 50 to 2200 rpm with ±3 rpm accuracy
- LED display for speed monitoring
- Analog speed control with digital feedback
- Over-torque protection automatically stops the motor for safety
- Chuck supports shafts from 0.5 to 10 mm
- Compact design saves valuable lab space
Included Items
- Scilogex OS40-S Overhead Stirrer
- Key for Drill Chuck
- Power Cord
- Operator's Guide
- Manufacturer's Documentation
- 2-Year Manufacturer’s Warranty
Specifications
| Maximum Stirring Capacity | 40 Liters |
| Maximum Torque | 60 N·cm |
| Maximum Viscosity | 50,000 mPas |
| Speed Range | 50–2200 rpm |
| Speed Display Accuracy | ±3 rpm |
| Speed Display Resolution | ±1 rpm |
| Chuck Diameter Range | 0.5–10 mm |
| Motor Rating Input | 120 W |
| Motor Rating Output | 100 W |
| Dimensions (W x H x D) | 3.3 x 8.7 x 7.3 in |
| Weight | 5.5 lbs |
| Voltage | 110 V, 60 Hz, 130 W |
