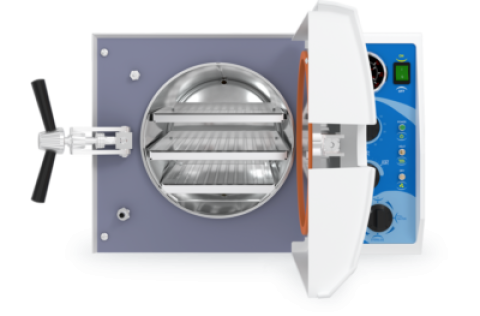

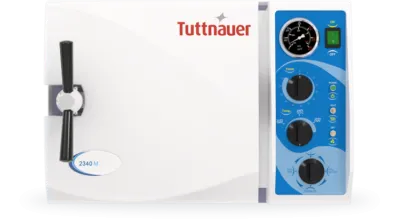

Tuttnauer 2340M Manual Autoclave is a manual, versatile tabletop sterilizer designed to meet the needs of busy clinics and laboratories requiring quick instrument turnaround. Combining time-tested reliability with modern safety and efficiency features, the 2340M delivers outstanding performance and value for high-volume sterilization.
Key Features & Benefits:
- Efficient & Fast: Delivers speed and reliability without compromising load size.
- Safe-Locking Door: Equipped with a double safety locking mechanism for enhanced operator safety.
- Intuitive Controls: Bright, easy-to-use control panel designed with the operator in mind.
- Simple Drainage: Front-mounted valve for quick and convenient reservoir draining.
- Durable Chamber: Long-life electro-polished stainless steel chamber and door for years of dependable use.
- Overheating Protection: Dual safety thermostat and automatic shut-off safeguard against overheating.
Technical Specifications
| Overall Dimensions (DxWxH) | 21.5” x 20” x 14.4” (545 x 510 x 365 mm) |
| Chamber Dimensions | 9” x 18” (230 x 470 mm) |
| Chamber Volume | 5 gal (19 L) |
| Tray Capacity | 3 trays |
| Tray Dimensions | 16.3” x 6.7" x 0.8” (415 x 170 x 20 mm) |
| Standard Cassette Capacity | 2 full (8” x 11”), 2 half (8” x 5.5”) |
| Voltage & Frequency | 120V, 50-60Hz |
| Power & Current | 1400W, 12A |
| Shipping Weight | 85 lbs (39 kg) |
| Warranty | 1 year parts & labor |
Sterilization Programs:
-
Standard unwrapped cycle:
- Hot start: approx. 13 min
- Cold start: approx. 27 min
Standards & Certifications:
- ASME
- UL/EN 61010-1
- FDA listed
- ISO 13485:2003
- ISO 9001:2000
