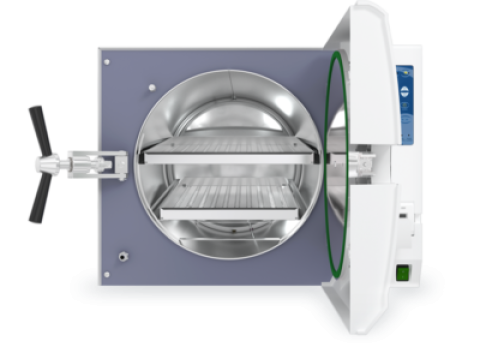

Tuttnauer 3870EAP Automatic Large-Capacity Autoclave
The 3870EAP is a powerful, fully automatic, large-capacity autoclave designed for multi-practitioner medical and dental practices, clinics, and surgery centers. Its extra-large 85L chamber and customizable cycles make it ideal for processing longer instruments and large batch sterilization.
Key Features
- Automatic, large-capacity autoclave with 85L (22 gal) chamber
- Perfect for practices requiring high throughput and longer instruments
- Closed-door active drying system ensures sterilization and efficient drying
- Single-touch, easy-to-use control panel increases productivity
- Includes three pre-set sterilization programs with cycle customization
- Cycle information recovery in case of power failure or interruption
- Built-in printer documents temperature, pressure, system messages and alerts
- Supplied with a 3-shelf stand for convenient tray storage
- HEPA 0.2 μm replaceable air filter for sterility
- Durable electro-polished chamber and door for long service life
- Meets or exceeds multiple global sterilization compliance standards
Included Items
- Tuttnauer 3870EAP Autoclave
- 3-Shelf Stand
- Built-in Printer
- Power Cord
- User Manual
- 2-Year Parts & Labor Warranty
Sterilization Programs
- Standard Unwrapped Cycle: Hot Start: ~23 min, Cold Start: ~32 min
- 3 Pre-set Programs + Customizable Parameters
- Insufficient water detector with automatic shut-off
Monitoring & Documentation
- Temperature and pressure monitored independently
- Built-in printer logs date/time, temperature, pressure, system alerts
Technical Specifications
| Chamber Volume | 85 Liters / 22 Gallons |
| Chamber Dimensions | 15” x 30” (385mm x 760mm) |
| Tray Dimensions | 26.6” x 11.3" x 1” (675mm x 286mm x 25mm) 26.6” x 13.8" x 1” (675mm x 351mm x 25mm) |
| Overall Dimensions (DxWxH) | 34.5” x 26” x 20.6” (875mm x 665mm x 525mm) |
| Tray Stand Dimensions | 30” W x 36” D x 34” H |
| Voltage & Frequency | 230V / 50–60Hz |
| Power / Current | 3000W / 13.6A |
| Weight (with stand) | 78 lbs. / 97 kg |
| Warranty | 2 Years Parts and Labor |
Compliance & Certifications
- PED 97/23
- MDD 93/42
- ASME
- UL/EN 61010-1
- FDA Registered
- ISO 13485:2003
- ISO 9001:2000
For practices that demand high volume and performance with uncompromised sterilization standards, the 3870EAP Autoclave delivers unmatched efficiency and reliability.
