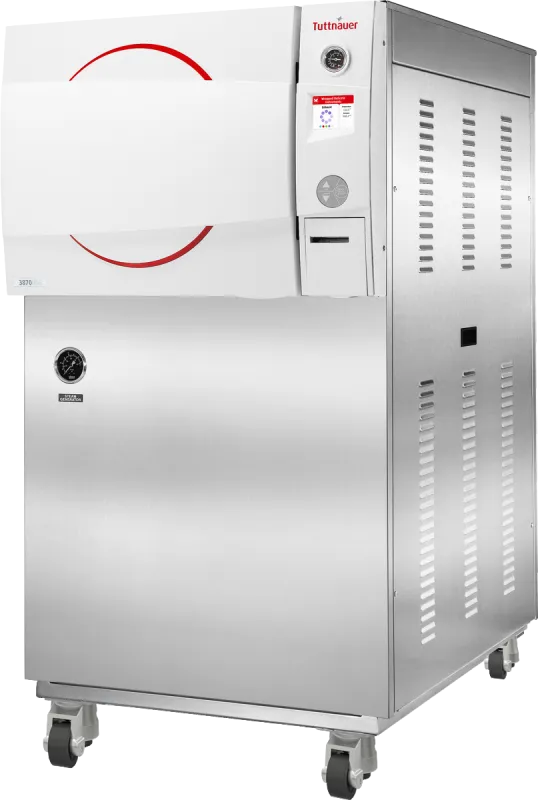

The 3870HSG-WS is an 85 liter / 22.5 gallon hospital-grade pre & post vacuum autoclave designed to deliver powerful, reliable sterilization performance. Ideal for ambulatory surgery centers (ASC), large clinics, and any facility requiring rapid, effective sterilization with a compact footprint. It provides all the capabilities of a large capacity sterilizer at a fraction of the size and cost, while meeting the highest international standards.
Key Features:
- Hospital-grade sterilization: Pre & post vacuum technology ensures complete air removal for superior sterilization of all load types.

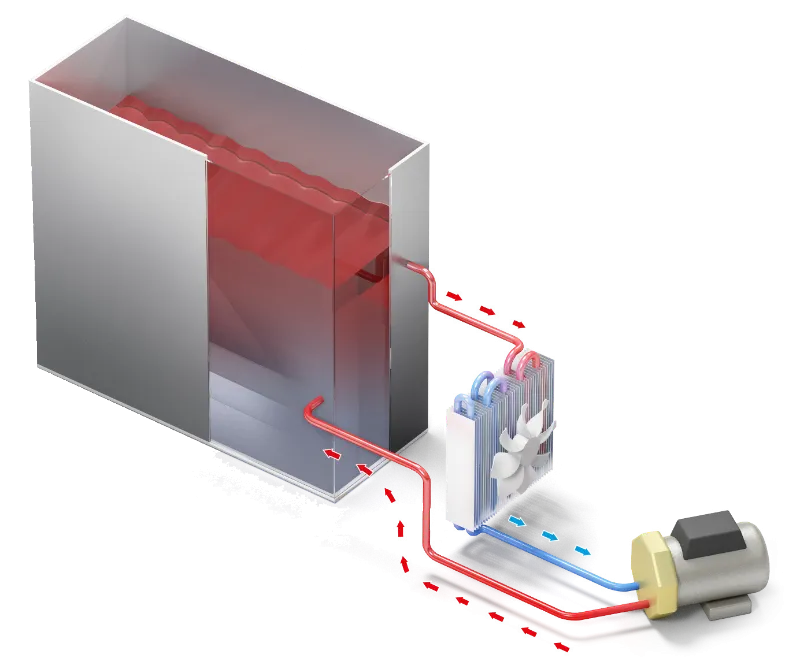

- Water Saving System: Uses up to only 5 liters of tap water per day, reducing operational costs.
- Independent “Plug & Play” operation: No need to connect to external building utilities for water or drain lines.

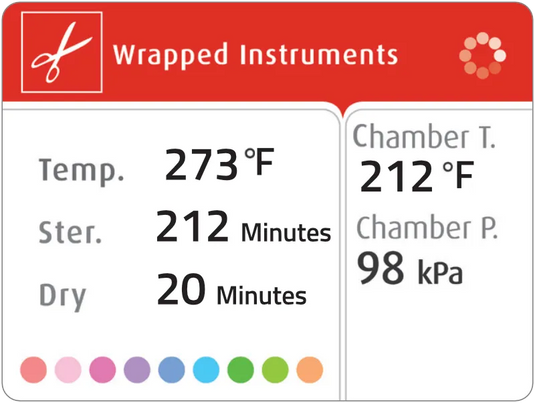

- Multi-color LCD display: Intuitive 3-button interface with rotary wheel and built-in alpha-numeric printer for easy cycle monitoring and documentation.
- Data access made easy: Download or manage data via USB, Ethernet, or direct print.
- Customizable cycles: Comes with 4 FDA-cleared sterilization cycles, plus 2 test cycles (Bowie Dick and Vacuum Leak), and supports up to 16 additional programmable cycles.
- Energy saving sleep mode: Control system powers down when idle while generator remains ready 24/7.
- Low rate cycle / delayed start: Schedule cycles to run after hours for operational efficiency.
- Compact, ergonomic design: Fits through standard doorways and requires minimal space.
Optimized Sterilization Programs
- Standard Cycles: Unwrapped instruments, wrapped instruments, unwrapped delicate instruments, wrapped delicate instruments
- Test Cycles: Bowie Dick for verifying air removal, Vacuum Leak for daily or weekly integrity checks
- Custom Cycles: Program up to 16 additional cycles tailored to your facility's needs
Data & Connectivity
- Access cycle data via USB, Ethernet, or built-in printer
- Multi-level user access for added operational security
Technical Specifications
| Chamber Volume | 85 Liters (22.5 Gallons) |
|---|---|
| Chamber Dimensions (Ø x L) | 15.2" x 29.9" |
| Number of Trays | 2 |
| Tray Dimensions | Small: 13.3" x 1" x 26.6" Large: 13.8" x 1" x 26.6" |
| Overall Dimensions | 28.4” W x 53.8” H x 46.5” L |
| Electrical | 3-Phase, 230V, 25 Amp, 60 Hz |
| Power | 9 kW |
| Weight | 397 lbs (180 kg) |
Compliance & Standards:
Meets or exceeds the strictest global directives and certifications, including UL, FDA, CE, and ASME standards, ensuring complete safety and regulatory compliance.
