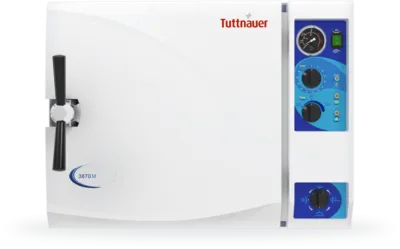

Tuttnauer 3870M Manual Large-Capacity Autoclave is engineered for clinics, surgery centers, and busy multi-practitioner practices that require a high-capacity sterilization solution. With an 85-liter chamber and durable construction, the 3870M is a low-maintenance autoclave ideal for sterilizing longer instruments or a large volume of smaller tools.
Key Features:
- Large 85-liter chamber fits up to 15 full-size cassettes
- Manual operation with easy-to-use controls
- Automatic shut-off after sterilization and dry cycles for safety and convenience
- Double safety locking prevents door from opening under pressure
- Includes 3-shelf stand for added storage and convenience
- Front-facing drain valve allows quick and easy reservoir drainage
- Electropolished stainless-steel chamber and door for maximum durability
- Overheat protection via dual safety thermostat and automatic shutoff
Sterilization Programs
- Standard Unwrapped Cycle (Hot Start): ~23 minutes
- Standard Unwrapped Cycle (Cold Start): ~32 minutes
- Note: Cycle times may vary depending on instrument load and ambient conditions
Specifications
| Chamber Volume | 85 Liters / 22 Gallons |
| Chamber Dimensions | 15" x 30" (385mm x 760mm) |
| Tray Capacity | 2 Trays |
| Tray Dimensions | 26.6" x 11.3" x 1" (675mm x 286mm x 25mm) 26.6" x 13.8" x 1" (675mm x 351mm x 25mm) |
| Standard Cassette Capacity | 15 Full Cassettes |
| Overall Dimensions (D x W x H) | 34.5" x 26" x 20.6" (875mm x 665mm x 525mm) |
| Electrical Requirements | 230V, 50–60Hz, 3000W, 13.6A |
| Shipping Weight | 278 lbs (126 kg) including stand |
| Warranty | 1 Year Parts and Labor |
| Certifications | UL/EN 61010-1 FDA Registered ISO 13485:2003 ISO 9001:2000 |
Note: Standard full-size cassette is 8” x 11”; half-size cassette is 8” x 5.5”. If required, a 0.5KVA buck/boost transformer may be needed for voltage regulation.
