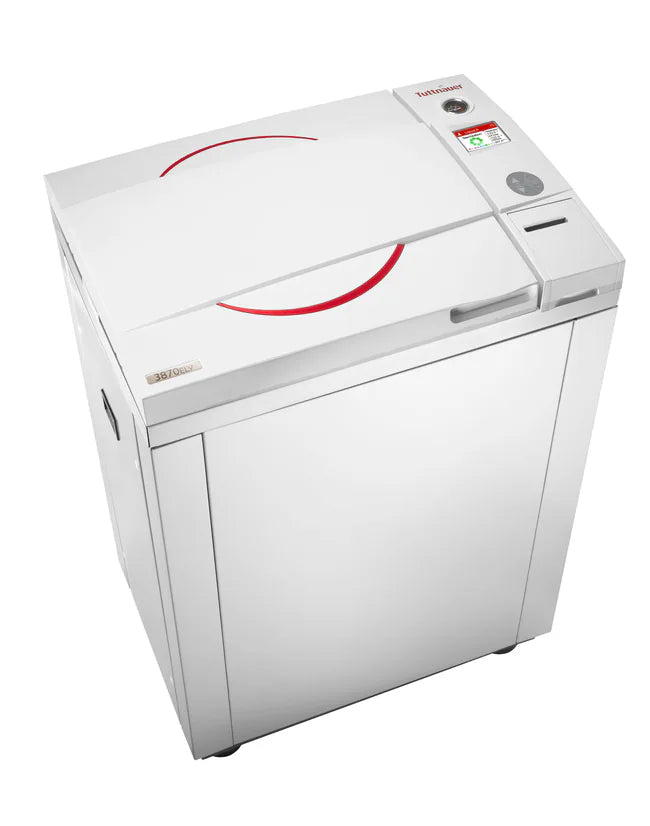

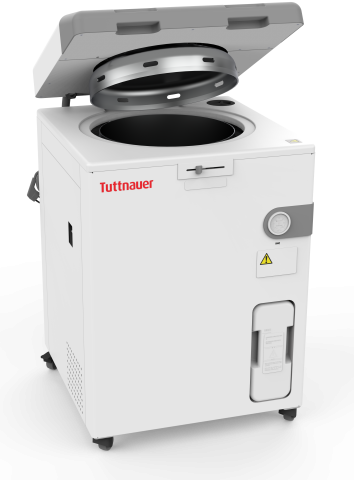

LabSci Vertical Laboratory Autoclaves provide high-capacity, efficient sterilization in a compact, floor-standing design. Tailored for educational institutions, research facilities, and general laboratories, these autoclaves deliver reliable sterilization of glassware, plastics, instruments, and even liquids—helping you streamline lab workflows while saving space and resources.
Key Features:
Available Chamber Capacities: 60L or 85L
Ideal for sterilizing liquids, glassware, plastics, waste, and unwrapped instruments
Preloaded with 4 validated sterilization programs plus 16 fully customizable programs
Multi-colored touchscreen controller for intuitive operation
Integrated temperature probes on all liquid-capable units to prevent boil-over and ensure thorough sterilization
No plumbing required — simple to install and relocate with built-in swivel wheels
Built-in waste and cooling water tanks
Optional accessories include stainless steel pails and drip trays
2-Year Manufacturer’s Warranty ensures peace of mind
Data Management & Connectivity
Standard USB port for cycle history download and network storage
Optional external printer for detailed cycle reports
T-Connect remote monitoring: enables complete device visibility, diagnostics, and eliminates paper for an eco-friendly solution
Loading Capacity Examples
Container Type
Container Size
60L Capacity
85L Capacity
Erlenmeyer Flasks
250 ml
13 × 2 baskets
13 × 3 baskets
500 ml
8 × 2 baskets
8 × 3 baskets
1000 ml
5 × 2 baskets
5 × 2 baskets
2000 ml
3 × 1 basket
3 × 2 baskets
Bottles / Schott Duran
250 ml
19 × 2 baskets
19 × 3 baskets
500 ml
12 × 2 baskets
12 × 3 baskets
1000 ml
8 × 1 basket
8 × 2 baskets
2000 ml
4 × 1 basket
4 × 2 baskets
Technical Specifications
Model
60LV
85LV
Chamber Volume
60 L
85 L
Chamber Dimensions
15.4” x 19.9”
15.4” x 27.6”
External Dimensions (W x H x D)
25.4“ x 38.8“ x 31.9“
Power Requirements
220-240V, 3000W, 13.1A
220-240V, 5400W, 22.3A
Frequency
50-60 Hz
Electrical Plug
NEMA L6-20
NEMA L6-30
Max Allowable Pressure
40.6 psi
Chamber Fill
8 L
Cooling Water Tank
6 L
Wastewater Tank
3 L
Weight
244.7 lbs
264.5 lbs
Included Items
LabSci Vertical Laboratory Autoclave (60L or 85L Chamber)
Power Cord
Operator’s Guide
Manufacturer’s Documentation
2-Year Manufacturer’s Warranty
