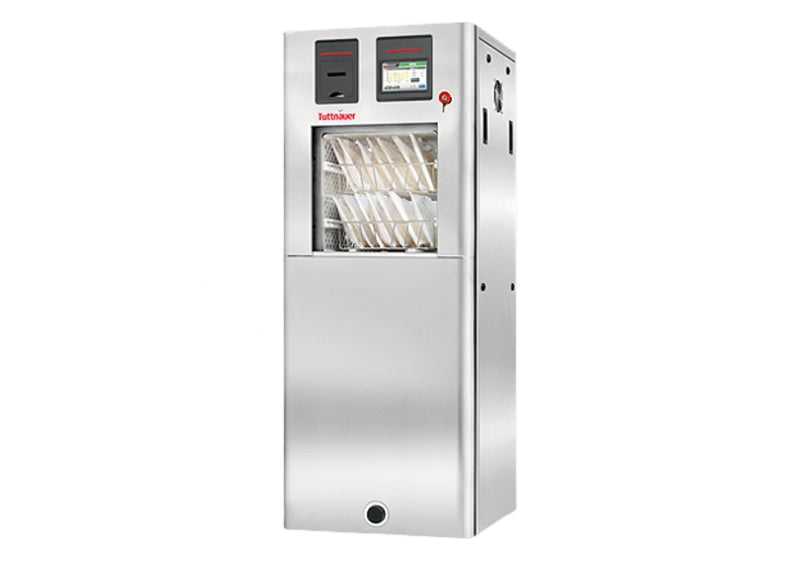

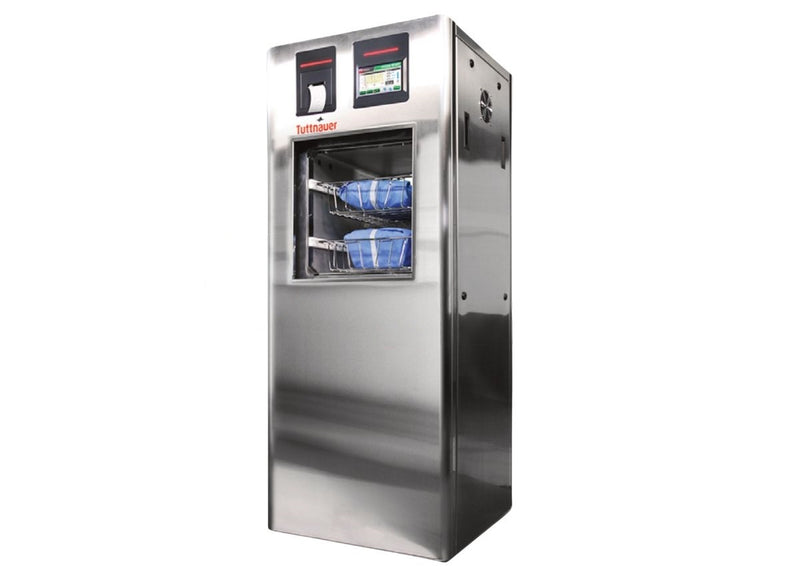

PlazMax Low-Temperature Vaporized Hydrogen Peroxide Sterilizers by Tuttnauer provide state-of-the-art sterilization for heat-sensitive medical equipment. Designed for Veterinary operating rooms, hospitals, and Sterile Processing Departments (SPD), these systems use eco-friendly VHP (Vaporized Hydrogen Peroxide) to effectively sterilize instruments without leaving harmful residues — only water and oxygen remain.
Key Features & Benefits:
- Homogeneous aluminum chamber: Aviation-grade for excellent temperature distribution
- Eco-friendly sterilization: Non-toxic H2O2 decomposes into water and oxygen — no hazardous by-products
- Durable stainless-steel panels: Easy to clean, highly resistant to discoloration
- Flexible door configurations: Choose manual or vertical sliding doors, single or double door options with hands-free opening
- Touchscreen interface: Multi-color graphical LCD displays cycle data in real time
- Multiple access levels for enhanced security
- Integrated USB, Ethernet, and thermal printer for cycle documentation and easy traceability
- Generate comprehensive PDF reports with graphs and tables using optional R.PC.R software
- Maintenance notifications and equipment tracking simplify compliance and servicing
Advanced Sterilization Cycles
- Normal Cycle: For non-hollow instruments (approx. 39 min)
- Advanced Cycle: For hollow loads (approx. 44 min)
- Special Endoscope Cycle: Reduced H2O2 exposure for delicate instruments (approx. 37 min)
- Penetration Test Cycle
- Leakage Test Cycle
Available Capacities & Specifications
| Model | Chamber Volume | External Dimensions (WxHxD, in) | No. of Baskets | Power | Current | Voltage |
|---|---|---|---|---|---|---|

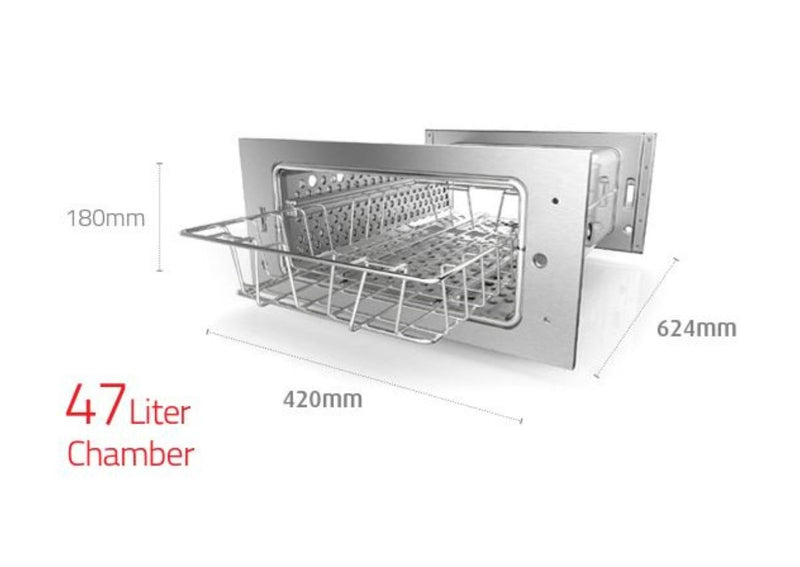

| PLAZMAX050-M-BM | 47 L | 27.6 x 60.1 x 28.7 | 1 (15.7 x 23.6) | 3100 W | 13.5 A | 230V, 50-60 Hz |

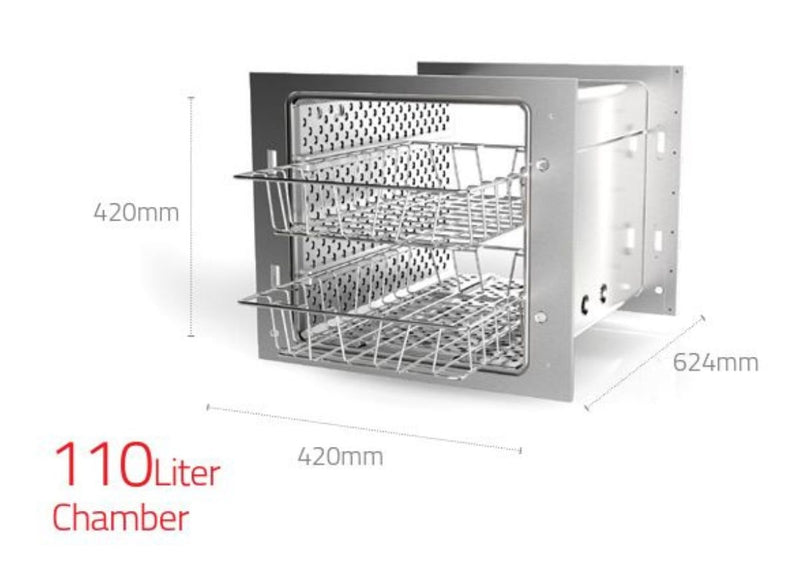

| PLAZMAX0110-M-BM | 109 L | 27.6 x 69.6 x 28.7 | 2 (15.7 x 23.6) | 4300 W | 18.7 A | 230V, 50-60 Hz |

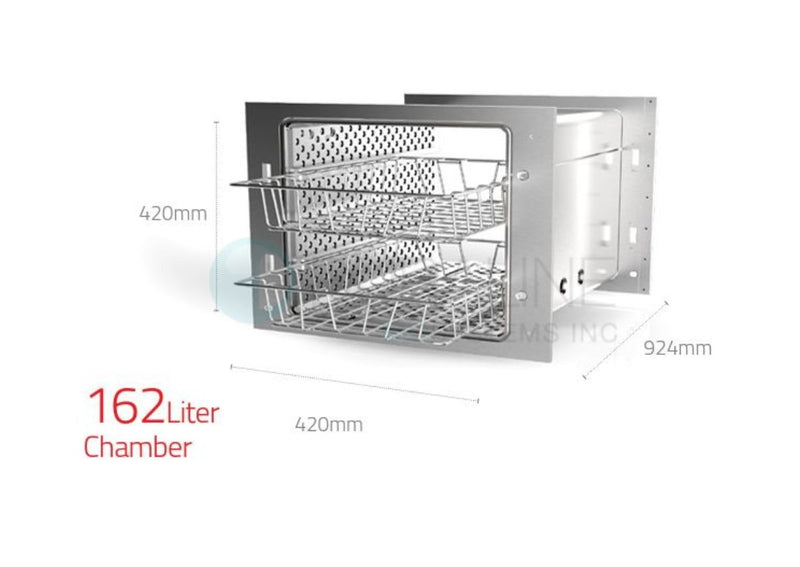

| PLAZMAX0160-M-BM | 162 L | 27.6 x 69.6 x 40.5 | 2 (15.7 x 35.4) | 4300 W | 18.7 A | 230V, 50-60 Hz |
Included Accessories
- Power cord, operator’s guide, and full manufacturer documentation
- 2-year manufacturer’s warranty
- 110L and 160L bundles may include: H2O2 bottles (case of 4), PCD Lumen Kit, MiniBio AutoReader with rapid biological indicators, chemical indicator strips & tape
Standards & Compliance
PlazMax sterilizers meet rigorous international safety and quality standards, including:
- ISO 9001:2015 • ISO 13485:2016 • ISO 14937
- EN 61010-2-040:2015 • EN 60601-1:2006/AC:2010
- Medical Device Directive 93/42/EEC
The Tuttnauer PlazMax line is the ideal solution for facilities seeking safe, rapid, eco-friendly sterilization of delicate medical and veterinary instruments.
