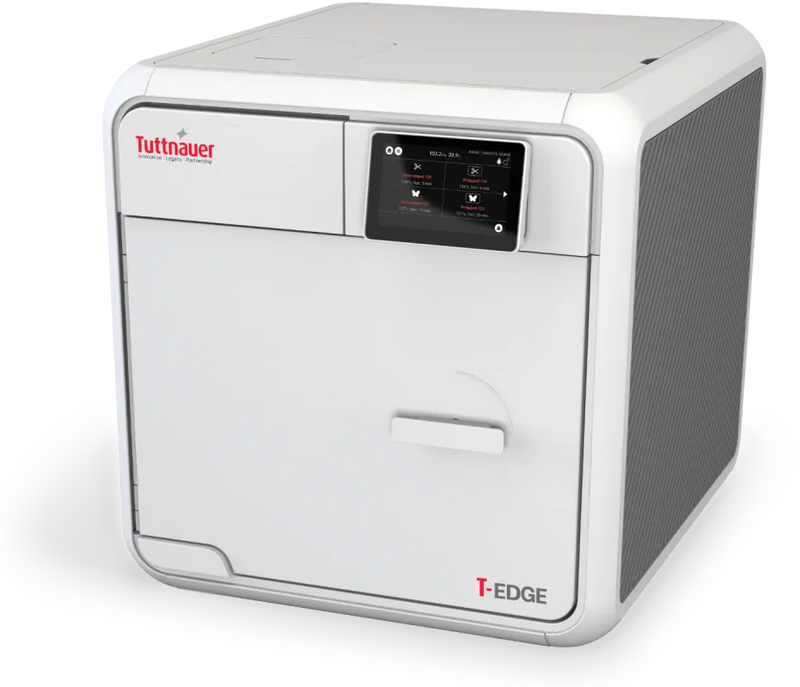

Tuttnauer T-Edge Autoclaves are advanced tabletop sterilizers engineered to deliver maximum efficiency with minimum costs. Available in 10" and 11" chamber sizes, the T-Edge is the only autoclave on the market that’s upgradeable from Class S to Class B—future-proofing your practice against evolving standards and needs.
Highlights & Advantages:
- Fast cycles for both unwrapped and wrapped loads, including thorough drying.
- Over 75% chamber capacity utilization with five extra-long trays for optimal loading.

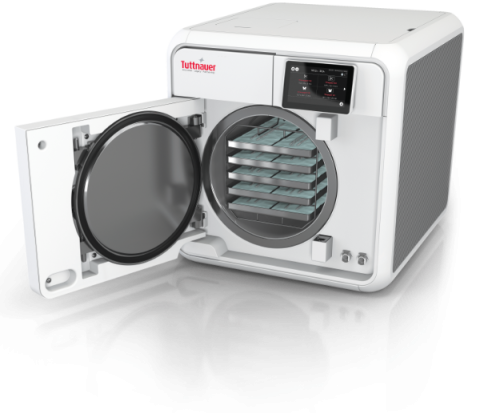

- Door opens to 110° for easy and convenient loading.
- Advanced documentation and traceability with barcode scanning for patient files.
- User-friendly touchpad control panel shows programs, cycle times, water levels, and more.
- Remote Wi-Fi monitoring from your smartphone or tablet for ultimate convenience.
- Meets stringent ANSI/AAMI ST55 sterilization standards for safety and compliance.
Cycle Programs
The T-Edge includes 4 pre-set cycle programs and 2 standard diagnostic tests for complete sterilization flexibility.
| Program | Load Type | T-Edge 10 | T-Edge 11 |
|---|---|---|---|
| Class S Unwrapped 270°F | Unwrapped Instruments | 20 min | 25 min |
| Wrapped Pouches 270°F | Wrapped Instruments | 32 min | 43 min |
| Unwrapped Delicate 250°F | Delicate Instruments | 45 min | 47 min |
| Handpieces 270°F | Handpieces | 45 min | 59 min |
| Class B Unwrapped 273°F | Unwrapped Instruments | 20 min | 26 min |
| Wrapped Pouches 273°F | Wrapped Instruments | 39 min | 49 min |
| Unwrapped Delicate 250°F | Delicate Instruments | 35 min | 35 min |
| Handpieces 250°F | Wrapped Delicate Instruments | 58 min | 75 min |
Technical Specifications
-
Chamber Size:
- T-Edge 10: 18” depth x 10” Ø (6 Gal / 23L)
- T-Edge 11: 18” depth x 11” Ø (7 Gal / 27L)
-
Standard Cassette Capacity:
- T-Edge 10: 3 Full + 3 Half
- T-Edge 11: 4 Full + 4 Half
- Tray capacity: 5 trays
- Connectivity: Ethernet, 4 USB ports, Wi-Fi, integrated auto water fill & drain
- Weight: T-Edge 10: 117 lbs; T-Edge 11: 124 lbs
- Power: 120V or 230V (60Hz)
Included with Each Unit
- Drain tube & tray holder
- Operator’s guide & manufacturer documentation
- 2-year manufacturer’s warranty
