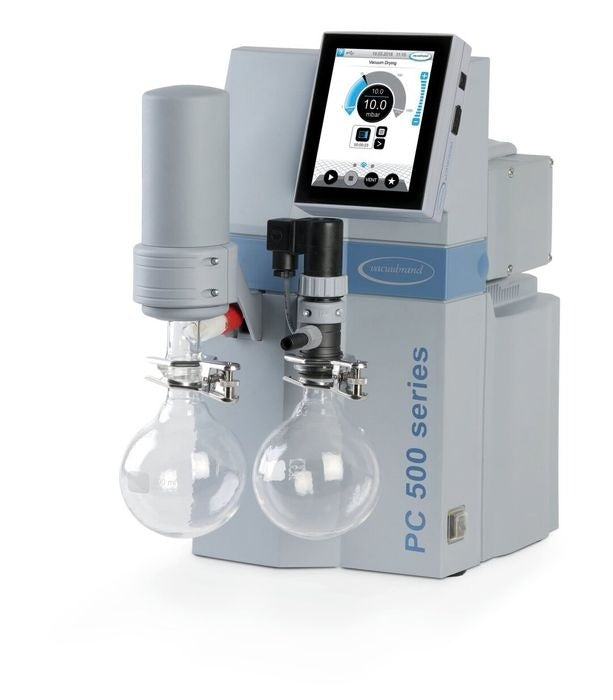

VACUUBRAND PC 510 Select Chemistry Pumping Unit is a high-performance vacuum solution engineered for precise, efficient, and environmentally friendly laboratory operations. Designed around the reliable MZ 2C NT two-stage diaphragm pump and integrated with the intuitive VACUU·SELECT controller, it is an excellent choice for supporting evaporation, distillation, drying, and other common lab vacuum processes.
Key Features:
- Ultimate Vacuum: 7 mbar (5 Torr)
- Maximum Pumping Speed: 1.4 CFM (60 Hz)
- Integrated VACUU·SELECT vacuum controller with graphical interface for application-based operation
- Predefined applications save time and deliver reproducible results
- Easy drag-and-drop editor to create custom vacuum sequences
- Automatic boiling point detection with two-point control for stable evaporation
- Glass inlet separator with protective coating prevents particles and droplets from damaging the pump
- Exhaust vapor condenser allows for near-total solvent recovery to support recycling and environmental protection
- Excellent chemical resistance and condensate compatibility ensure long service life
Included Items
- VACUUBRAND PC 510 Select Chemistry Pumping Unit (fully assembled)
- Power Cord
- Operator’s Manual
- Manufacturer’s Documentation
- 2-Year Manufacturer’s Warranty
Specifications
| Max. Pumping Speed (50 Hz) | 2 m³/h |
| Max. Pumping Speed (60 Hz) | 1.4 CFM |
| Ultimate Vacuum | 7 mbar / 5 Torr |
| Ultimate Vacuum with Gas Ballast | 12 mbar / 9 Torr |
| Number of Heads / Stages | 2 / 2 |
| Vacuum Controller | VACUU·SELECT |
| Operating Temperature Range | 10°C to 40°C |
| Storage Temperature Range | -10°C to 60°C |
| Max. Back Pressure (abs.) | 1.1 bar |
| Inlet / Outlet Connection | Hose nozzle DN 8-10 mm |
| Coolant Connection | 2 x Hose nozzle DN 6-8 mm |
| Motor Power | 0.18 kW |
| Motor Speed (50/60 Hz) | 1500 / 1800 min-1 |
| Protection Class | IP 20 |

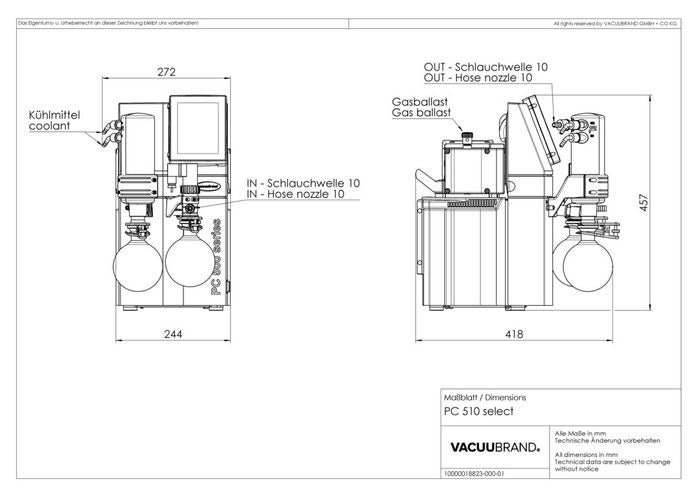

| Dimensions (L x W x H) | 418 x 272 x 457 mm |
| Weight | 17.9 kg |
| Noise Level | 45 dBA |
| Rated Voltage Range | 100-120 V |
| Frequency | 50-60 Hz |
| Interfaces | Ethernet (Modbus TCP), USB (Type A), RS-232 (with adapter) |
| Certification | CE (NRTL not required) |
