Yamato DG Series Glassware Drying Natural Convection Ovens

Yamato DG Series Glassware Drying Natural Convection Ovens offer a reliable and efficient solution for drying and storing laboratory glassware. With a simple, natural convection system and models available in both standard and high-capacity sizes, the DG Series is ideal for labs that need clean, corrosion-resistant, and easy-to-use drying ovens.

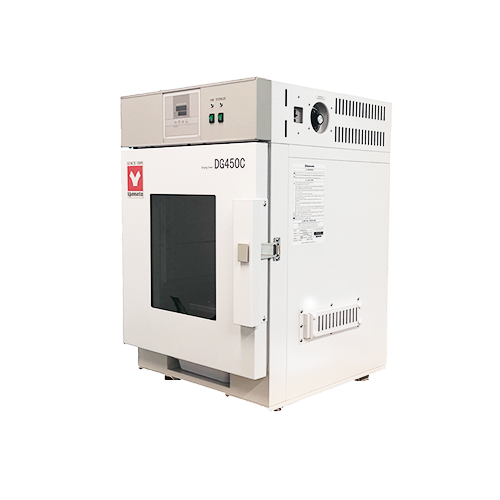

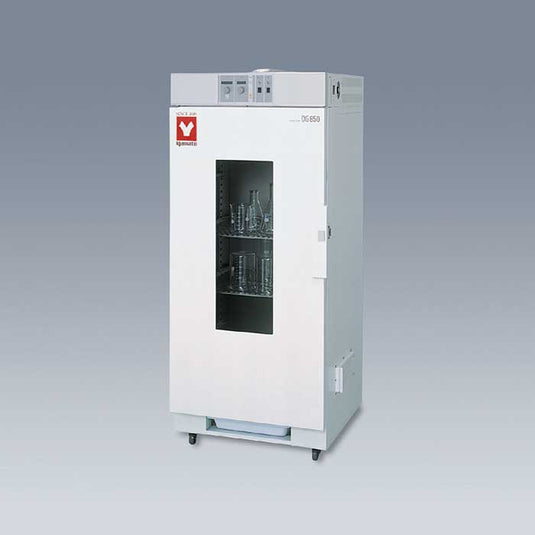

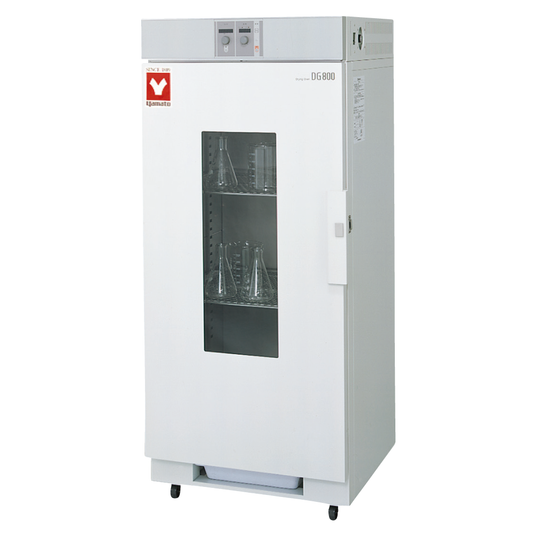

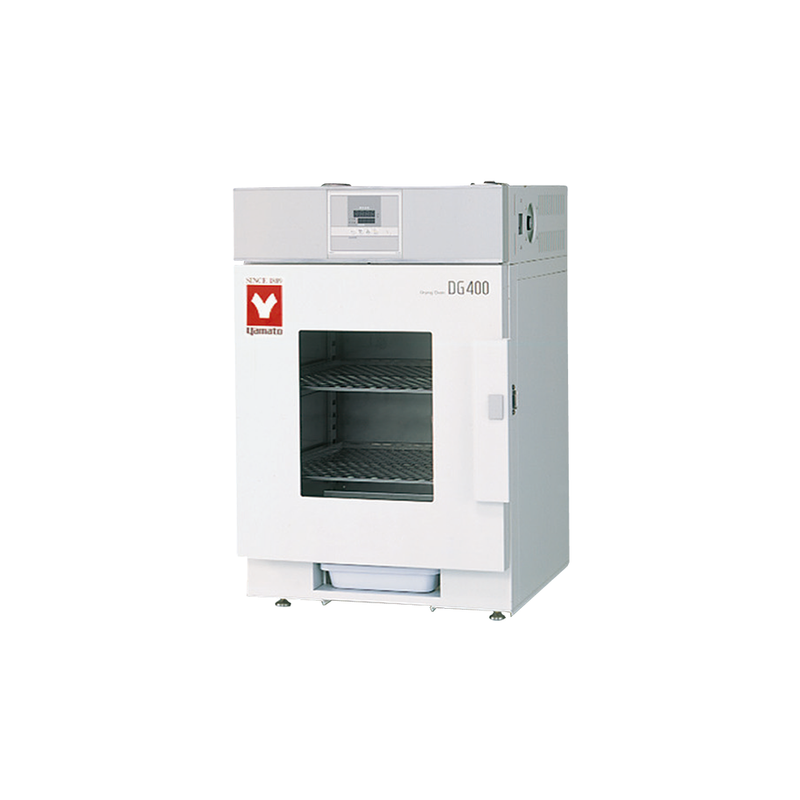

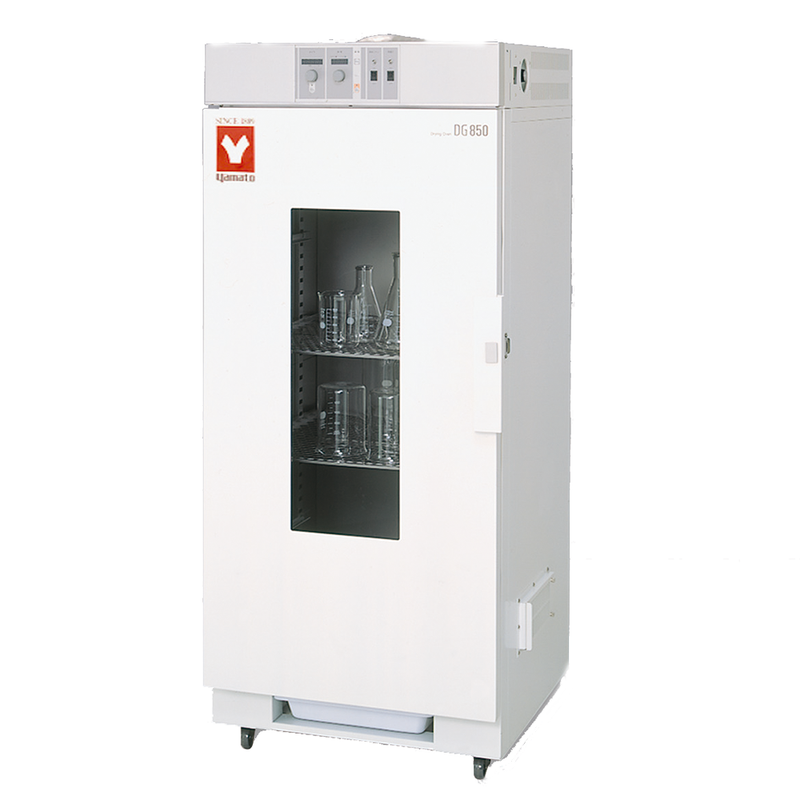

Models include DG400C, DG410C, DG440C, DG450C, DG800C, DG810C, DG840C, and DG850C—featuring stainless steel interiors, adjustable feet or mobile casters, and intuitive controls for effortless operation and visibility.

Features:

• Large viewing window for effortless monitoring
• Dual-purpose oven—drying and storing glassware
• High-efficiency insulation reduces heat loss and saves energy
• Easy-to-clean stainless steel interior resists corrosion
• Casters included for high-capacity models (DG800C–DG850C)
• Models DG440C/450C/840C/850C include air filter, exhaust fan, and germicidal lamp for faster drying
• Water receiving plate prevents condensation accumulation
• Digital temperature and timer display with dial input

Safety Features:

• Self-diagnostic functions for added reliability
• Independent overheat prevention system
• Overcurrent leakage breaker
• Calibration offset, key lock, and power failure recovery
• Note: Accurate temperature control may vary with heat-generating samples

Specifications

Performance & Control:

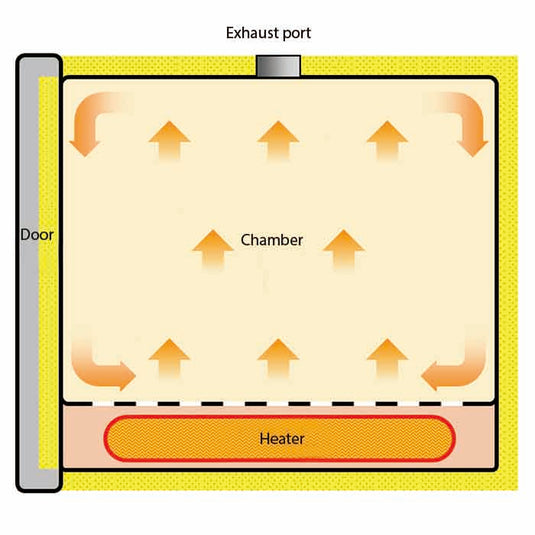

• System: Natural convection (DG400C–410C/800C–810C), Natural/forced convection (DG440C/450C/840C/850C)
• Temp. Range: RT +5°C to 70°C
• Controller: PID microprocessor with ▲/▼ digital setting keys
• Operation Modes: Fixed temp, auto start/stop, quick auto stop
• Sensor: K thermocouple (controller), liquid expansion (overheat prevention)

Construction:

• Interior: Stainless steel
• Door: Single door with silicone rubber packing
• Observation Window: 3mm standard glass (W250×H300mm or H700mm depending on model)
• Exhaust Ports: 34mm I.D. × 2 pcs.

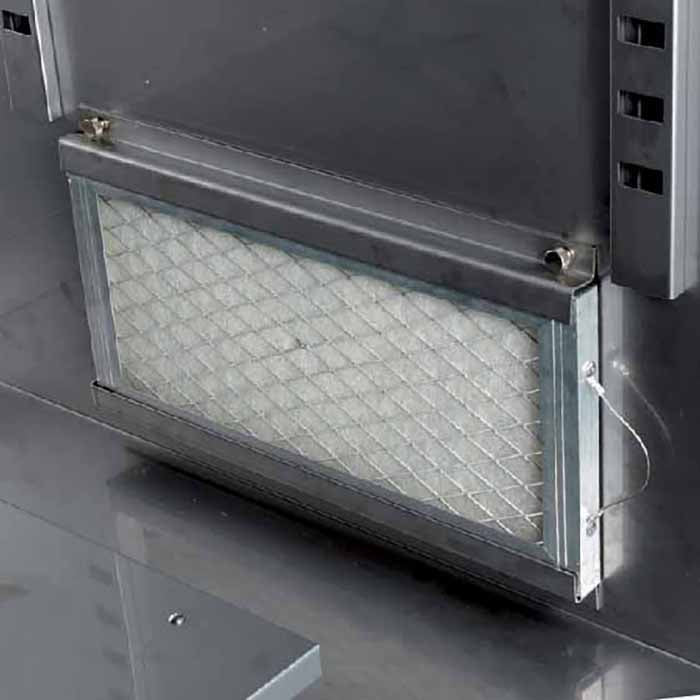

• Suction Ports: 30mm I.D. × 2 pcs. (w/ filter on select models)

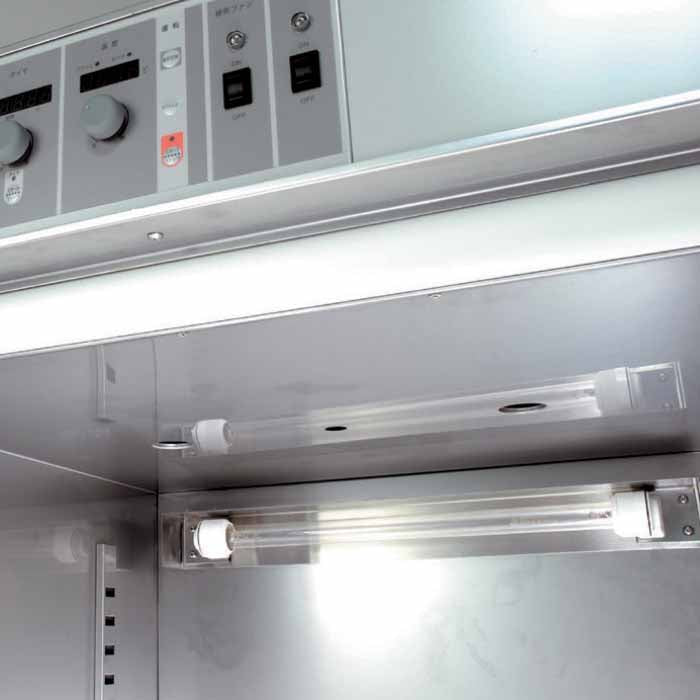

• Germicidal Lamp: 8W (DG440C/450C), 15W (DG840C/850C)

Capacity & Dimensions:

• Internal Volume: 92L (DG400C–450C), 445L (DG800C–850C)
• Internal Dimensions (W×D×H): 450×450×450mm or 620×600×1195mm
• External Dimensions (W×D×H): 504×562×788mm to 674×711×1618mm
• Shelf Capacity: 15kg per shelf
• Shelf Rest: 10 or 29 steps / 30mm pitch
• Weight: ~45kg to ~83kg depending on model

Power:

• Power Source: AC115V (with plug) or AC220V (no plug, round terminal)
• Heater: SUS pipe heater (1.0kW / 1.34kW)

Included Accessories:

• 2 or 4 x Stainless steel shelf plates (model dependent)
• 4 or 8 x Shelf brackets
• 1 x Water receiving plate
