Yamato IC Series Natural Convection Laboratory Incubators offer economical and efficient performance for general-purpose lab incubation. Designed for uniform temperature distribution and user-friendly operation, these incubators are ideal for a variety of analytical, clinical, and research applications.
Models range from 37L to 567L capacities and are equipped with reliable PID temperature control, stainless steel interiors, and convenient digital displays. Select models also offer observation windows and communication ports for data monitoring.
Key Features:
- Natural convection system for quiet, consistent operation
- Air jacket technology ensures even heat distribution

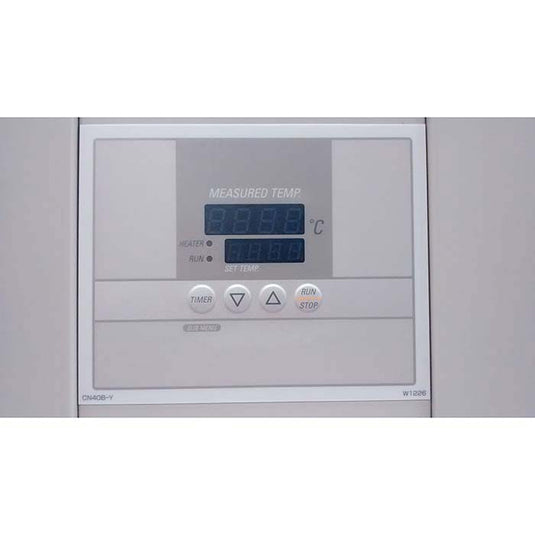

- Digital control panel with easy-to-read dual LED display

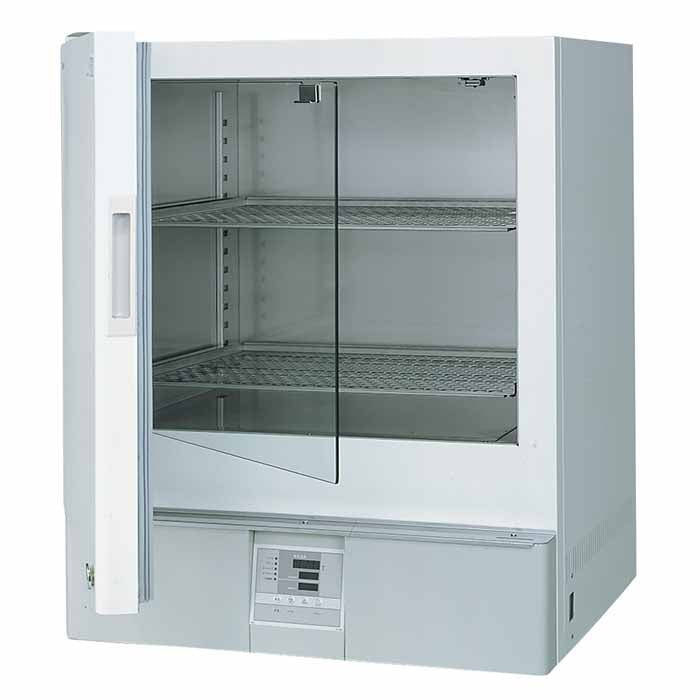

- Models with observation windows (W) and solid door options
- Dual door design (excluding IC100 series) prevents temperature fluctuation when checking samples
- Overheat prevention, self-diagnostic alerts, key lock, and calibration offset
- Optional communication port available on models IC403C and above
- Environmentally conscious design with low power consumption
Specifications
| Model | Capacity | Internal Dimensions (mm) | External Dimensions (mm) | Power Supply | Weight | Included Shelves |
|---|---|---|---|---|---|---|

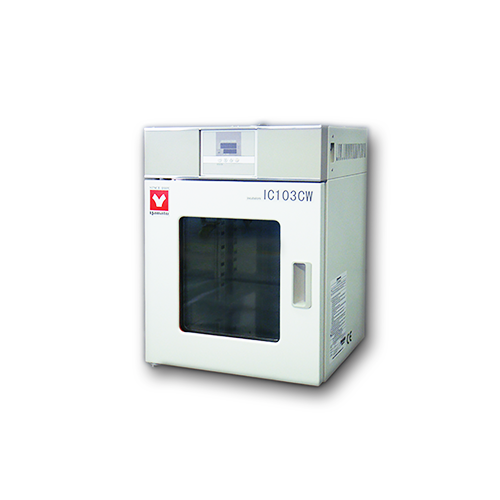

| IC103C / IC113C | 37L | 350 × 300 × 360 | 430 × 397 × 606 | AC115V 1.8A | ~17 kg | 2 pcs |
| IC403C / IC413C | 97L | 450 × 480 × 450 | 560 × 606 × 820 | AC115V 4.5A | ~45 kg | 4 pcs |
| IC603C / IC613C | 159L | 600 × 530 × 500 | 710 × 656 × 870 | AC115V 6A | ~65 kg | 4 pcs |

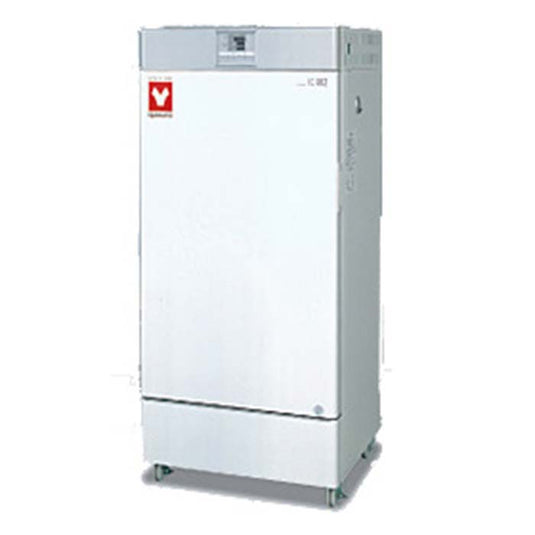

| IC803C / IC813C | 318L | 600 × 530 × 1000 | 710 × 656 × 1619 | AC115V 10A | ~102 kg | 8 pcs |

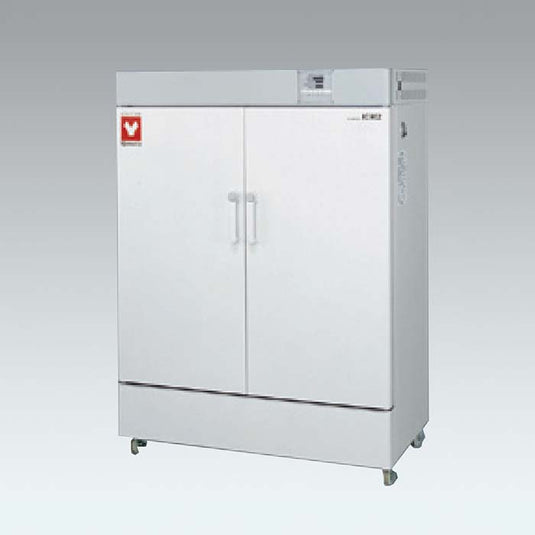

| IC903C / IC913C | 567L | 1070 × 530 × 1000 | 1180 × 656 × 1619 | AC115V 13A | ~166 kg | 8 pcs |
Performance
- Temperature Range: Room temp. +5°C to 80°C
- Temperature Control Accuracy: ±0.5°C (at 37°C)
- Temperature Distribution Accuracy: ±1.0°C
- PID control via microprocessor with SSR heater circuit
- K-type thermocouple sensor
- Timer Range: 1 min to 999 hours 59 mins
- Operation Modes: Fixed Temp, Auto Start, Auto Stop, Quick Auto Stop
Construction & Safety
- Interior: Stainless steel
- Exterior: Cold-rolled steel with melamine resin finish
- Insulation: Glass fiber
- Heater: Stainless steel pipe or iron-chrome wire (depending on model)
- Overheat prevention and error diagnostics
- Key lock and power failure recovery features
Optional Accessories
- Stand
- Stacking kit
- Additional shelves

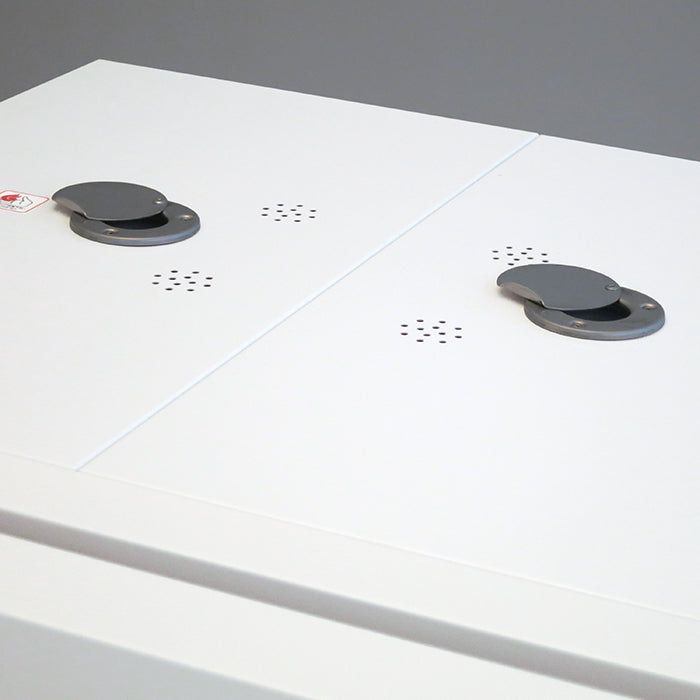

- Cable hole (25/50mm or 30/50mm)
- Temperature output terminal
- Time-up alarm output terminal
