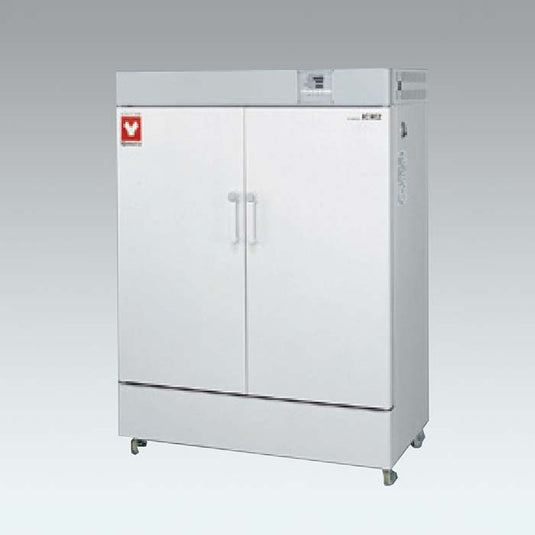

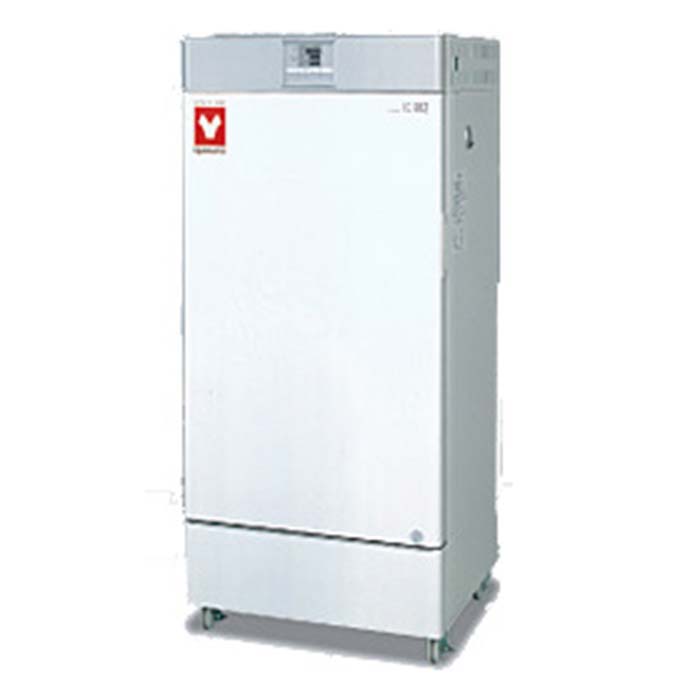

Yamato IC Series Natural Convection Laboratory Incubators offer an economical, space-saving solution for general-purpose laboratory incubation. Designed for quiet, uniform heating using natural convection, the IC Series is built with air-jacketed chambers, high visibility options, and a variety of safety and convenience features ideal for everyday lab use.
- Models: IC103C, IC113C, IC403C, IC413C, IC603C, IC613C, IC803C, IC813C, IC903C, IC913C
Features:
- Space-saving incubators ideal for general lab use

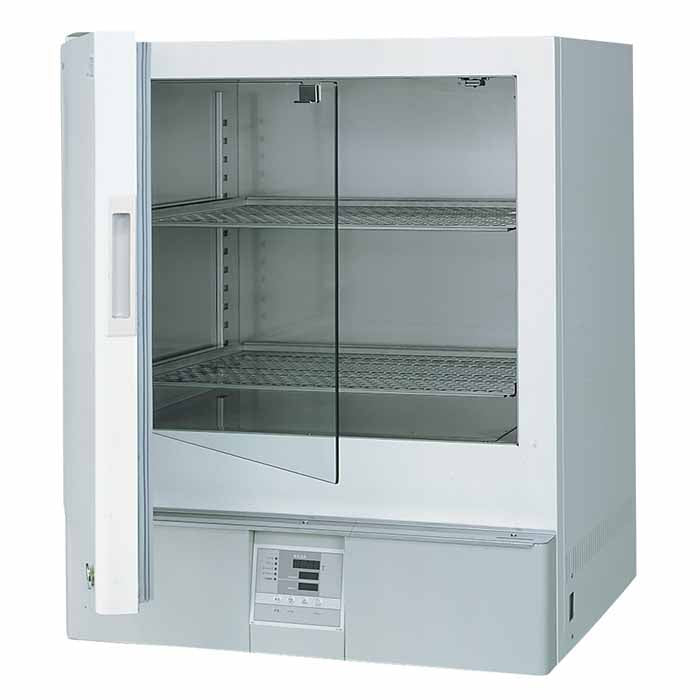

- Choose between solid or observation window doors for improved visibility
- Dual door system on 400 series and up allows interior viewing without disrupting chamber temperature

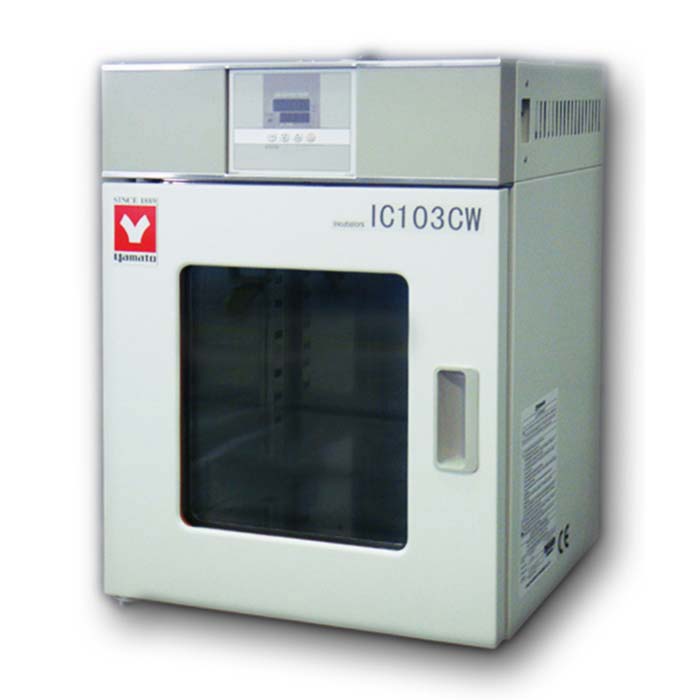

- Higher-positioned control panel on IC103C and IC113C for easier access on benchtops
- Air jacket design ensures even and efficient heat distribution throughout the chamber

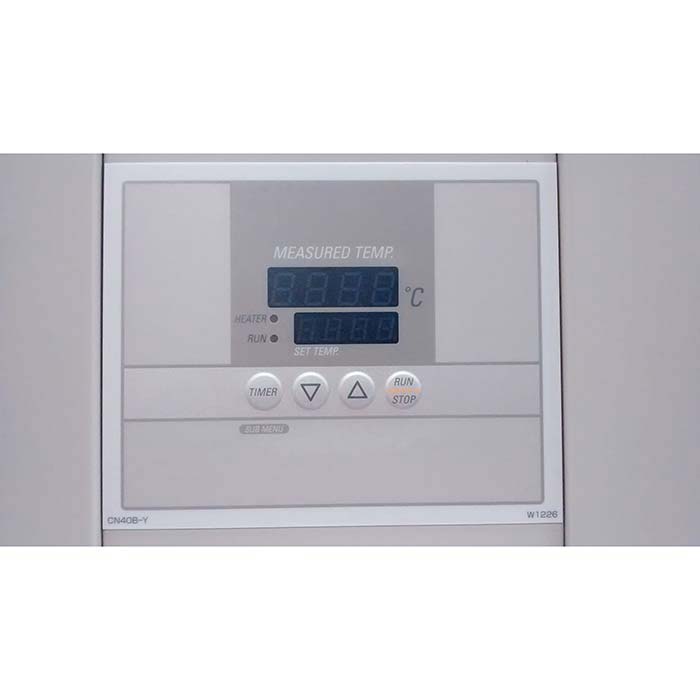

- Simple digital display for temperature and timer settings
- Standard safety functions include self-diagnostics, calibration offset, key lock, and overheat protection
- Models IC403C and up support optional communication port (R)
Specifications
Performance:
- System: Natural convection
- Operating Temp. Range: Room temp. +5°C to 80°C
- Temperature Control Accuracy: ±0.5°C at 37°C
- Temperature Distribution Accuracy: ±1.0°C
- Temperature Controller: PID, microprocessor-based
- Display: Green LED for actual temp, Red LED for set temp
- Timer: 1 min – 99 hr 59 min / 100 – 999 hr 50 min (with timer wait)
- Operation Modes: Fixed temp, Auto start, Auto stop, Quick auto stop
Construction:
- Interior: Stainless steel
- Exterior: Cold rolled steel with melamine resin finish
- Insulation: Glass fiber
- Heater: Stainless steel pipe or iron-chrome wire (0.2kW – 2.2kW depending on model)
- Sensor: K-thermocouple
- Heater Circuit Control: SSR drive system
Chamber & Capacity:
-
Internal Dimensions (WxDxH):
- IC103C / IC113C: 350 × 300 × 360 mm (37L)
- IC403C / IC413C: 450 × 480 × 450 mm (97L)
- IC603C / IC613C: 600 × 530 × 500 mm (159L)
- IC803C / IC813C: 600 × 530 × 1000 mm (318L)
- IC903C / IC913C: 1070 × 530 × 1000 mm (567L)
-
External Dimensions (WxDxH):
- IC103C: 430 × 397 × 606 mm
- IC403C: 560 × 606 × 820 mm
- IC603C: 710 × 656 × 870 mm
- IC803C: 710 × 656 × 1619 mm
- IC903C: 1180 × 656 × 1619 mm
- Shelf Load Capacity: ~15kg per shelf
- Shelf Rest Steps: 8 – 29 steps depending on model
Power Supply:
- 115V or 220V depending on model (50/60 Hz)
- Models range from 1.8A to 13A
- 115V models typically supplied with plug; 220V models use round terminal (no plug)
Weight:
- IC103C / IC113C: ~17kg
- IC403C / IC413C: ~45kg
- IC603C / IC613C: ~65kg
- IC803C / IC813C: ~102kg
- IC903C / IC913C: ~166kg
Included Accessories
- Stainless steel shelf plates and brackets
- Includes: 2 / 4 / 8 shelves depending on model
Why Choose the Yamato IC Series?
- Economical, low-maintenance incubators for a variety of lab applications
- Natural convection design ensures quiet and efficient operation
- Air jacket insulation provides consistent temperature throughout the chamber
- Flexible configuration with observation or solid doors
- Optional accessories available for advanced lab integration
- 1-Year Manufacturer Warranty
- Trusted by labs for over 40 years
