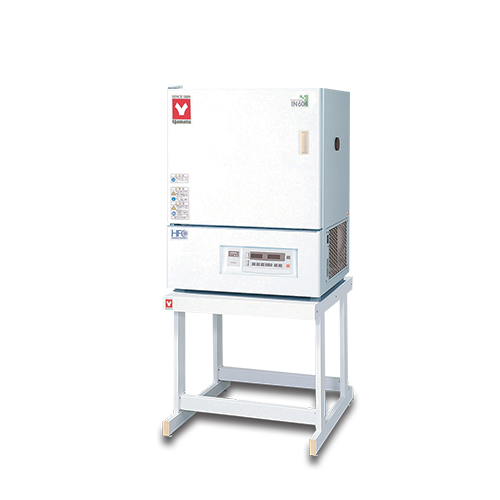

Yamato IN Series Refrigerated Forced Convection Incubators deliver precise temperature control for low-temperature testing and environmental simulations. With options for glass observation doors, interior lighting, and programmable control, the IN Series offers flexibility for research labs, biotech facilities, and quality control environments.

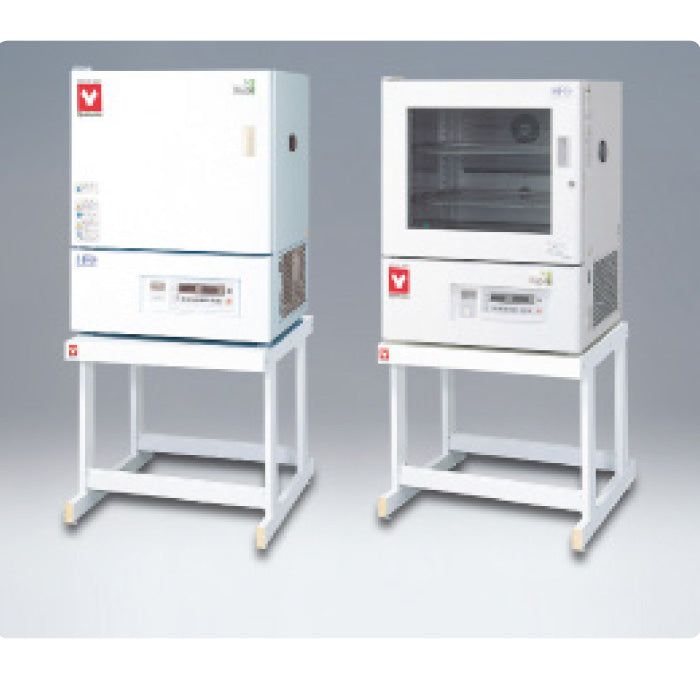

- Models: IN604-115V / IN604-220V / IN604W-115V / IN604W-220V / IN804-115V / IN804-220V / IN804W-115V / IN804W-220V
Features:
- High-accuracy temperature control and uniform distribution via forced convection

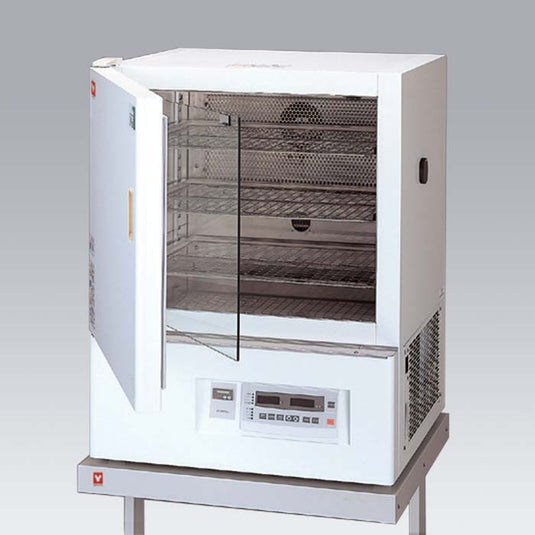

- Inner glass door to maintain stable conditions during sample observation

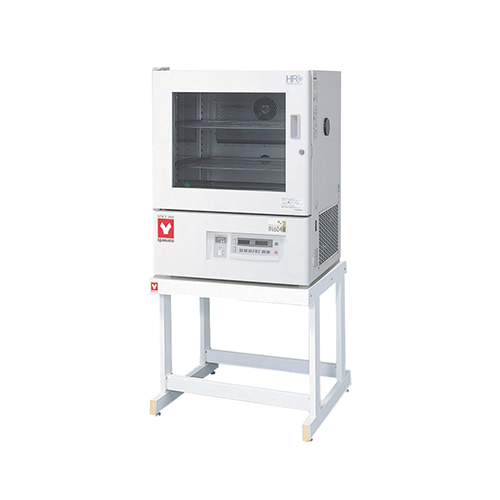

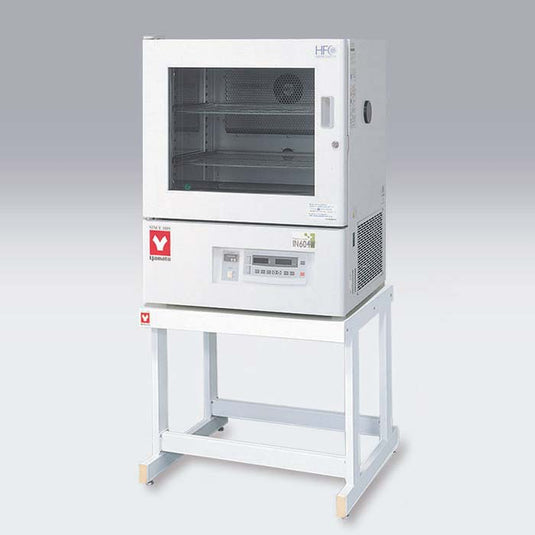

- W-models feature triplex glass doors with locking, and internal lighting for improved visibility

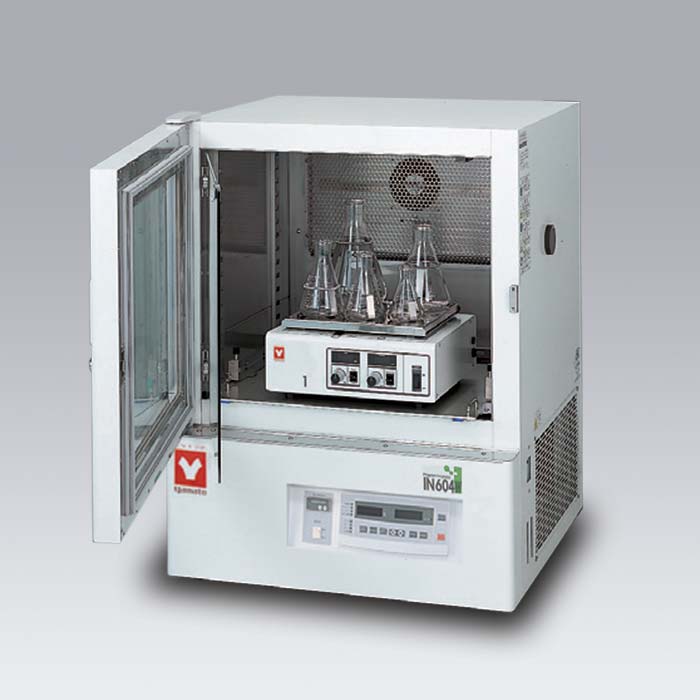

- Optional slide shaker table available for W-models to simplify sample access

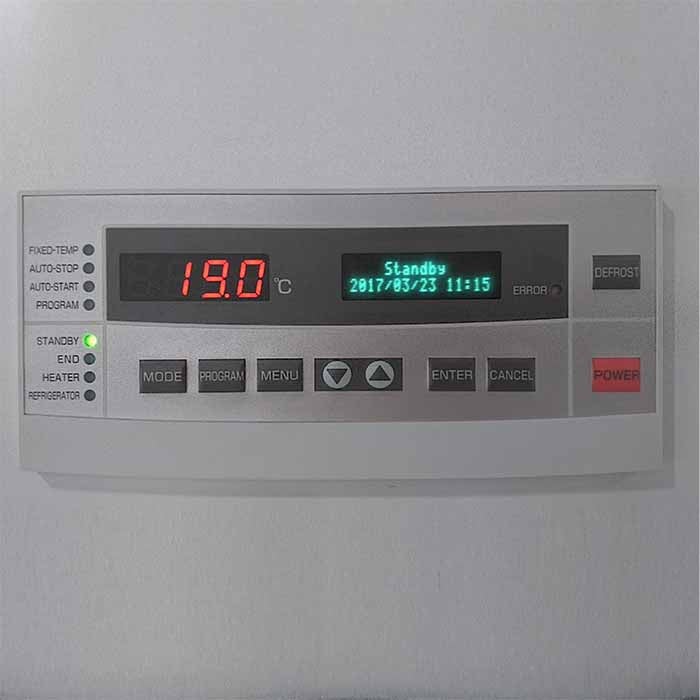

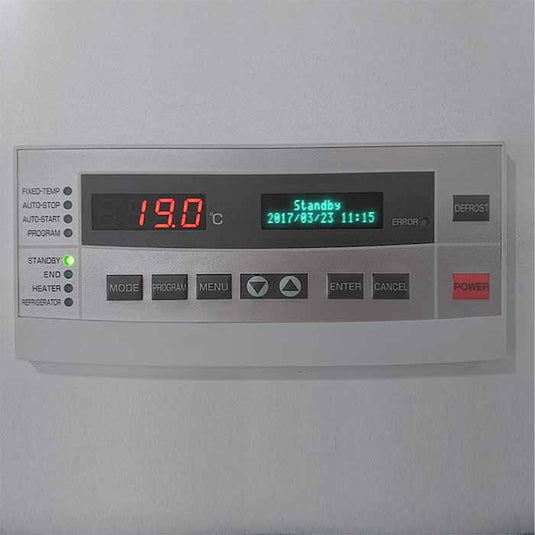

- Programmable operation with up to 32 steps and repeat functionality
Specifications
Performance & Operation:
- Temperature Range: -10°C to +50°C
- Control Accuracy: ±0.3°C (continuous), ±1.0°C (cycled)
- Temperature Distribution Accuracy: ±1.0°C at 37°C
- Control Method: PID control with digital setting
- Operation Modes: Fixed temp, auto start/stop, programmable with repeat
- Timer: 0–999 hrs 59 min, resolution: 1 min
- Additional Functions: Calibration offset, time accumulation, clock display
Construction & Components:
- Interior: Stainless steel chamber
- Exterior: Chrome-free galvanized steel with chemical-resistant finish
- Insulation: Styrene foam
- Refrigeration: Air-cooled compressor (250W or 300W) with R134A or R404A
- Heater: Iron-chrome wire, 550W or 750W
- Sensors: Pt100Ω (control), K-type thermocouple (overheat protection)
Model Comparisons:
| Model | Internal Capacity | Internal Dimensions (W×D×H) | External Dimensions (W×D×H) | Shelf Qty | Weight |
|---|---|---|---|---|---|
| IN604 / IN604W | 143L | 600 x 477 x 500 mm | 710 x 645 x 913 mm | 3 shelves / 6 brackets | ~89 kg |

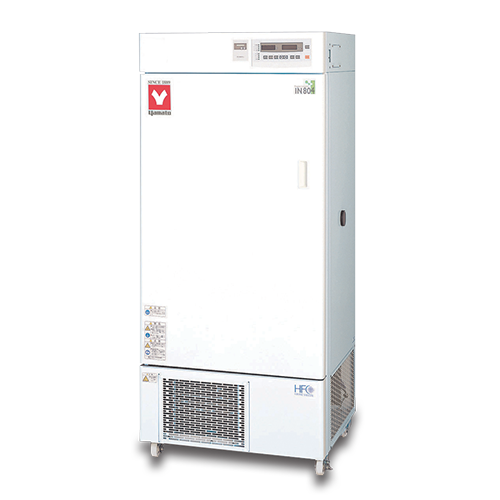

| IN804 / IN804W | 286L | 600 x 477 x 1000 mm | 710 x 645 x 1630 mm | 5 shelves / 10 brackets | ~120 kg |
Electrical & Safety:
- Power Supply: AC115V (with plug), AC220V (round terminal, no plug)
- Current Draw: 9–10.5A (115V), 5.5–7.5A (220V)
- Safety Devices: Overheat protection, self-diagnostics, ELB breaker, key lock
- W-models: Lockable dual glass doors and internal light
Included & Optional Accessories:
- Included: Stainless steel shelves and brackets (3 or 5 shelves depending on model), keys (W-models)
- Optional: Stand, extra shelves, cable ports (30/50mm), external alarm terminals, temperature output terminals, slide shaker (W models)
