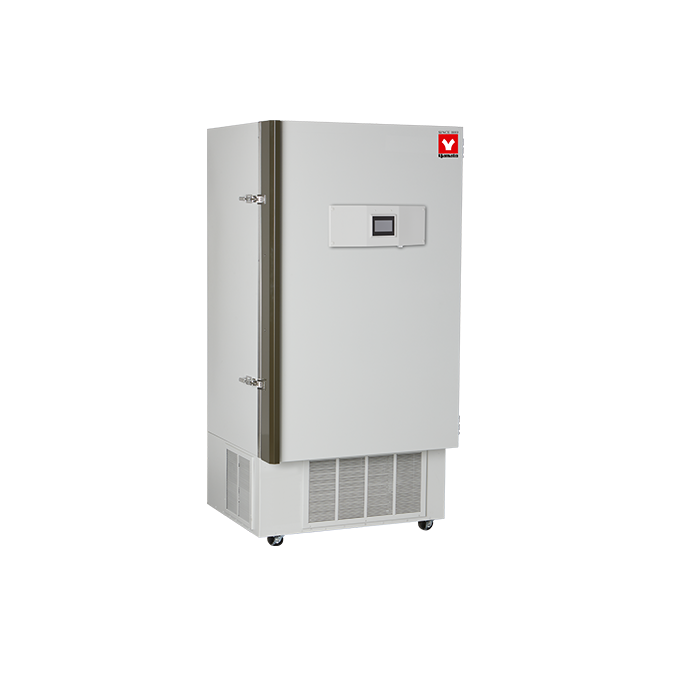

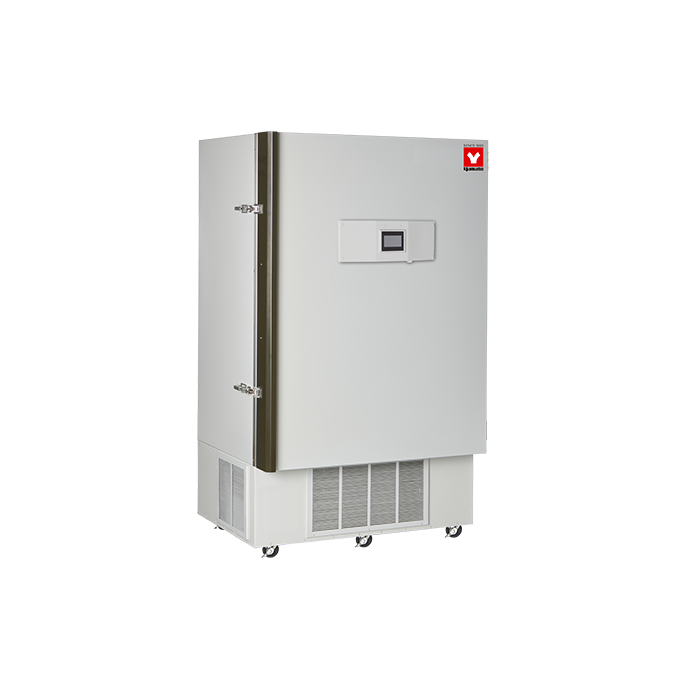

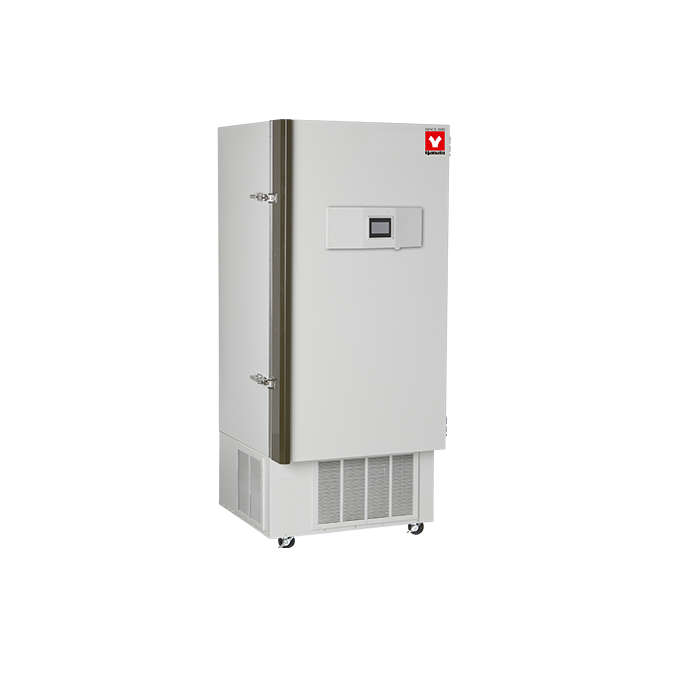

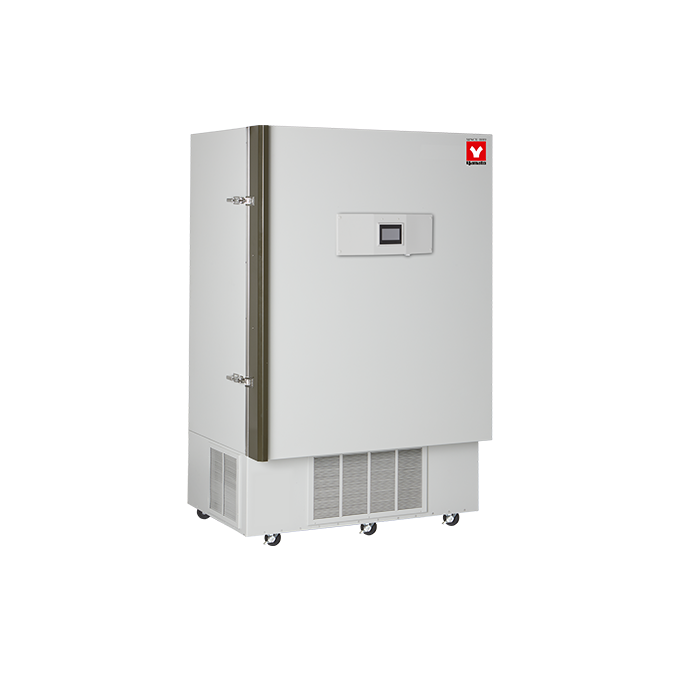

Yamato LTF Platinum Series Upright Low-Temp Freezers offer reliable temperature control from 0°C to -40°C in a vertical footprint, perfect for laboratories, clinics, and medical storage. These advanced low-temperature freezers combine high performance with smart features for sample security and energy efficiency.
Choose from five upright models depending on your storage requirements:
- LTF401UP – 370L / 13 cu.ft.
- LTF501UP – 505L / 18 cu.ft.
- LTF601UP – 626L / 22 cu.ft.

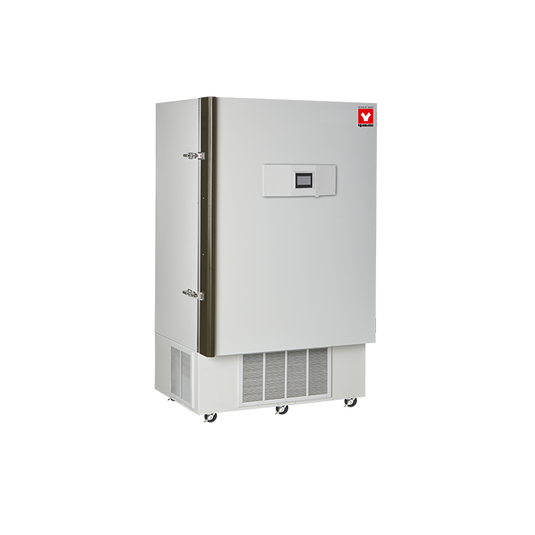

- LTF701UP – 710L / 25 cu.ft.
- LTF801UP – 792L / 28 cu.ft.
Features:
- Temperature range: 0°C to -40°C
- Touchscreen interface for intuitive control and monitoring
- Battery-backed alarm system with Hi/Low alerts and remote SMS/email notifications
- Real-time data logging downloadable via USB or FTP
- Remote access via VNC-compatible smart devices
- User access control for secure operation
- CFC & HCFC free refrigerants
- Energy-saving single hermetic compressor design
- Excellent temperature stability with adjustable shelving
Specifications
| Model | Capacity | Rack Capacity | Shelving | Internal Dimensions (W×D×H) | External Dimensions (W×D×H) |
|---|---|---|---|---|---|
| LTF401UP | 370L / 13 cu.ft. | 15 | 4 adjustable (5 compartments) | 20" x 22" x 51.25" (50 x 55 x 130 cm) | 35" x 34.5" x 79.5" (88 x 87 x 201 cm) |
| LTF501UP | 505L / 18 cu.ft. | 20 | 4 adjustable (5 compartments) | 23" x 26" x 51.25" (58 x 66 x 130 cm) | 40" x 36" x 79.5" (101 x 91 x 201 cm) |
| LTF601UP | 626L / 22 cu.ft. | 25 | 4 adjustable (5 compartments) | 28.5" x 26" x 51.25" (72 x 66 x 130 cm) | 43" x 37" x 79.5" (109 x 93 x 201 cm) |
| LTF701UP | 710L / 25 cu.ft. | 30 | 4 adjustable (5 compartments) | 34" x 25" x 51.25" (86 x 63 x 130 cm) | 50" x 37" x 79.5" (127 x 93 x 201 cm) |
| LTF801UP | 792L / 28 cu.ft. | 30 | 4 adjustable (5 compartments) | 38" x 25" x 51.25" (96 x 63 x 130 cm) | 54" x 37" x 79.5" (137 x 93 x 201 cm) |
Additional Specifications:
- Digital control system with setpoint display and live temperature graph
- Battery backup for alarms and controls
- 1/2" access port included for external probes
- Construction: Powder-coated steel exterior, galvanized steel chamber
- Refrigeration: Single stage system, hermetic compressor
- Electrical options: 115V, 208V, 230V, 220V (50/60Hz single phase)
Why Choose the LTF Platinum Series?
- Intelligent, touchscreen-controlled upright freezer with built-in alerts
- Supports remote access and logging for compliance and monitoring
- Rugged, laboratory-grade construction with low temperature performance
- Backed by Yamato's 40+ years of scientific equipment excellence
- 1-year manufacturer warranty included
