Yamato SM Series Large Capacity Autoclaves with Dryer are top-loading, fully automatic steam sterilizers designed for high-efficiency, high-capacity sterilization. Equipped with a 7″ interactive touch screen and versatile operation modes, the SM Series allows for precise control of complex sterilization, liquefying, and drying tasks. With models available in both 50L and 80L chamber capacities, these autoclaves are ideal for laboratories that demand speed, volume, and repeatability.

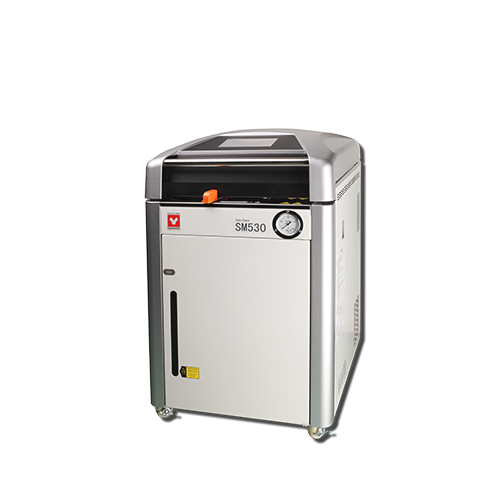

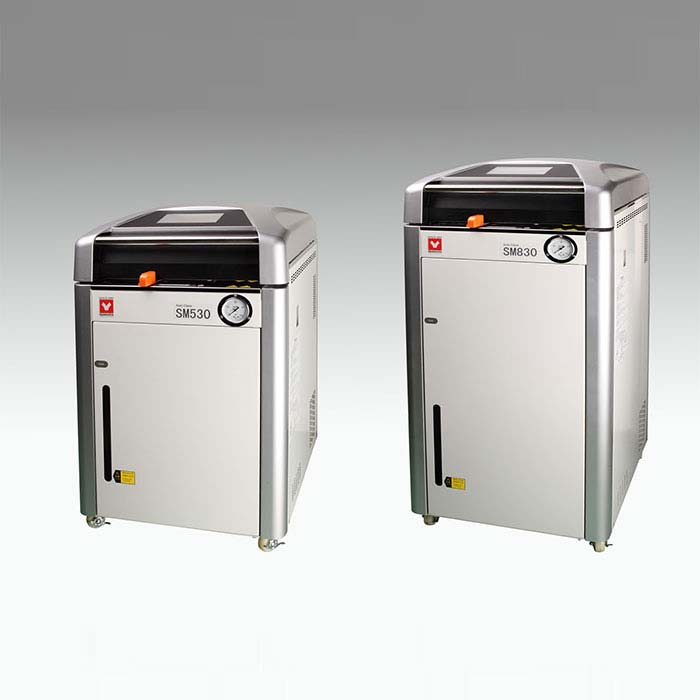

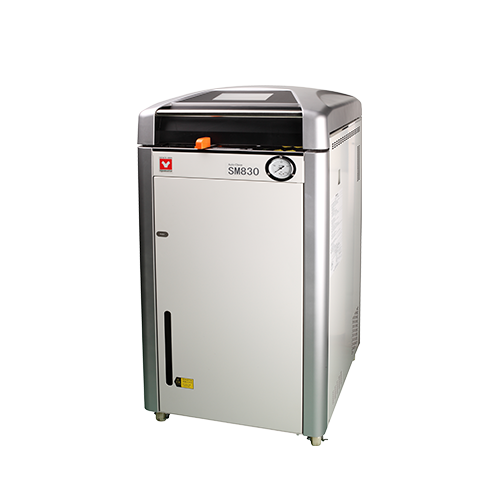

- Models: SM520, SM530, SM820, SM830
Features:

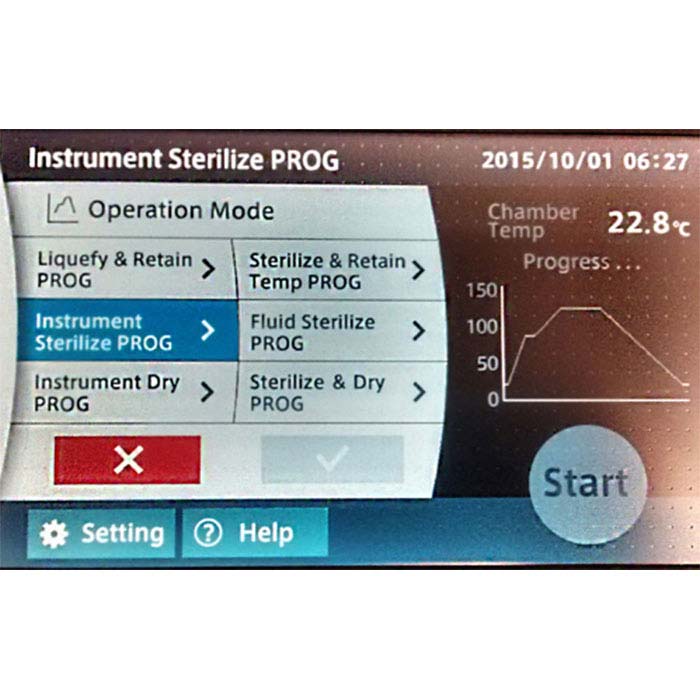

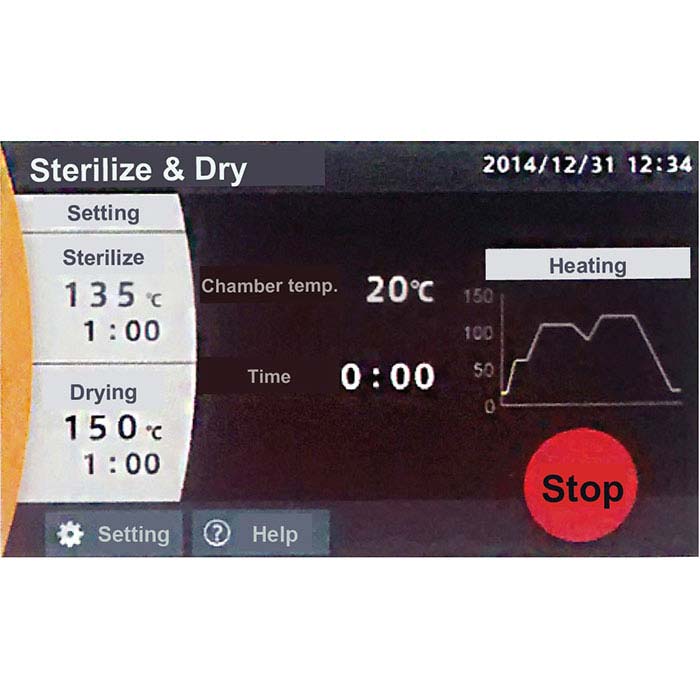

- 7″ color touch screen provides intuitive control and program visibility
- Fully automatic sterilization and drying process from start to finish
- Maximum sterilization temperature up to 135°C — suitable for protein modification
- Multiple operation modes: sterilize, liquefy, retain, preheat, dry
- Interactive memory settings save temperature and time parameters for repeat use

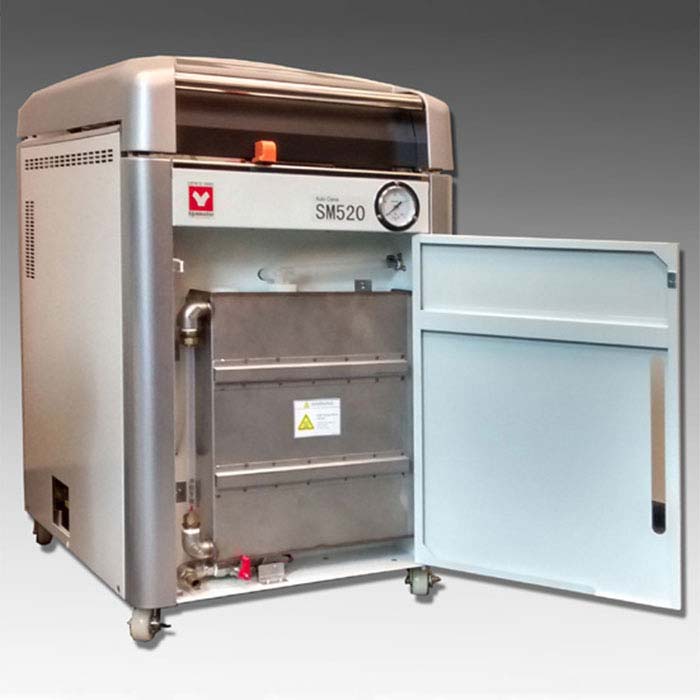

- Large-capacity 11L heat-resistant stainless steel container included
- Forced cooling system reduces turnaround time
- Audible alarm alerts for pressure deviations and safety errors
Safety Features:
- Sensor and SSR error detection (sterilize & dry)
- Heater disconnection and overheat protection
- Water level detection via liquid expansion method
- Multiple lid safety interlocks and unlock error warnings
- Chamber over/under pressure protection and memory error alerts
- Pressure switch (0.25 MPa) and pressure relief valve (0.255 MPa)
Specifications
Performance:
- System: Automatic high-pressure steam sterilization
- Operation Modes: Sterilize (105–135°C), Liquefy (60–110°C), Retain (45–60°C), Preheat (45–80°C), Dry (135–150°C)
- Ambient Operating Temp: 5–35°C
- Pressure Capacity: Max 0.255 MPa
- Temperature Control: PID microprocessor
- Touch Panel: Interactive 7″ display
- Timer: 0 or 1 min. to 99 hrs 59 min., 1-min resolution
Chamber & Dimensions:
-
SM520 / SM530:
- Chamber: Ø370 × D470 mm (50L)
- External: 520 × 660 × 881 mm
- Weight: ~113 kg
-
SM820 / SM830:
- Chamber: Ø370 × D750 mm (80L)
- External: 520 × 660 × 1161 mm
- Weight: ~137 kg
Heating & Power:
- Sterilize Heaters: 1000W × 2 (All models)
-
Drying Heaters:
- SM520 / SM530: 110V 295W × 2 + 455W × 2
- SM820 / SM830: 110V 275W × 2 + 625W × 2
-
Power Supply (50/60 Hz):
- SM520 / SM820: AC100–120V
- SM530 / SM830: AC200–240V
-
Current:
- Sterilize: 25–21A (100–120V) / 12.5–10.5A (200–240V)
- Dry: 13.5A (SM520) / 15.0A (SM820) — 8.0A and 9.0A for 200–240V models
Included Accessories
- 2 × Stainless steel mesh baskets:
- SM520 / SM530: Ø344 × D200 mm
- SM820 / SM830: Ø344 × D300 mm
- Drain board, drain bottle, droplet tray
- Chemical indicator set (1 pack)
- Filter (1 pc)
Why Choose the Yamato SM Series?
- Interactive 7″ touch screen simplifies operation and programming
- High-efficiency sterilization with integrated drying function
- 50L and 80L models available to match your lab's throughput
- Advanced safety protections built into every unit
- Mobility, ergonomics, and programmable memory enhance usability
- 1-Year Manufacturer Warranty
- Backed by over 40 years of trusted lab equipment expertise
