Yamato SN & SM Series Autoclaves and Steam Sterilizers offer dependable, top-loading sterilization for laboratories requiring efficiency, safety, and reliability. With chamber capacities from 20L to 47L, these sterilizers are ideal for labs handling instruments, liquids, media, or culture materials. Choose between the high-performance SN Series with rapid cool-down and preheating, or the SM Series with added drying functionality for faster post-sterilization handling.
Features:
- Top-loading design for easy sample access and compact installation
- Programmable operation with memory storage for repeated cycles
- SN Series: Built-in cooling fan, timer start, and pre-heating reduce total cycle time
- SM Series: Built-in drying system with adjustable drying temperature

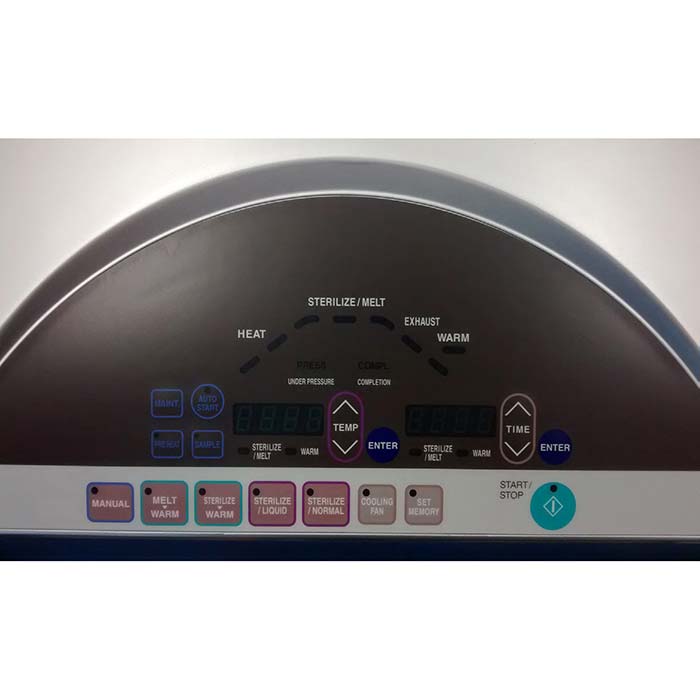

- Digital display with interactive key input and safety interlock lid mechanism
- Self-diagnostic functions with error memory and safe shutdown protocols
- Mobile casters included for easier relocation in the lab
Specifications

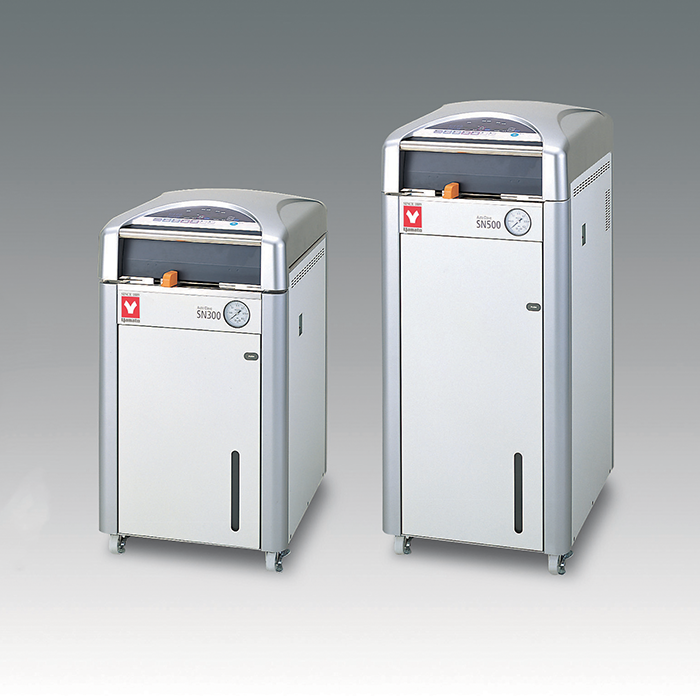

SN Series Models:

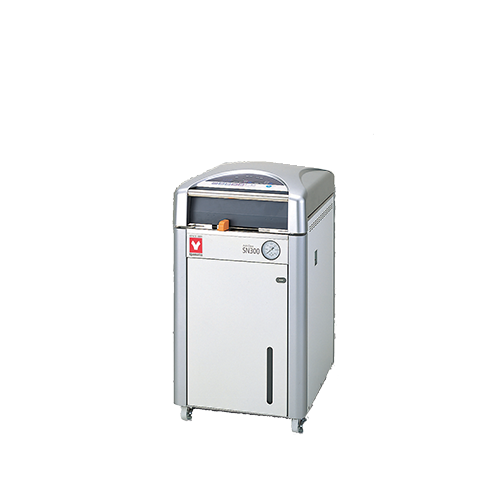

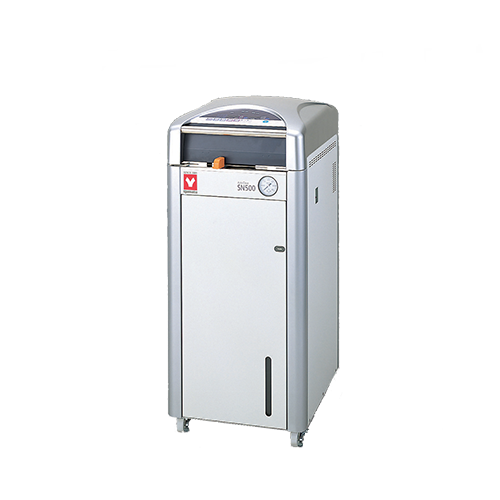

- Model: SN300C / SN310C / SN500C / SN510C
- Capacity: 32L (SN300C/SN500C), 47L (SN310C/SN510C)
- Temperature Range: 45–135°C
- Max Pressure: 0.255MPa
- Lid: Manual upward opening with safety interlock
- Controller: PID control with digital display and timer (1 min to 99 hrs 59 min)
- Operation Modes: Sterilization, sterilization + keep warm, melting, custom programs
- Power Source: AC100–120V or AC200–240V, depending on model

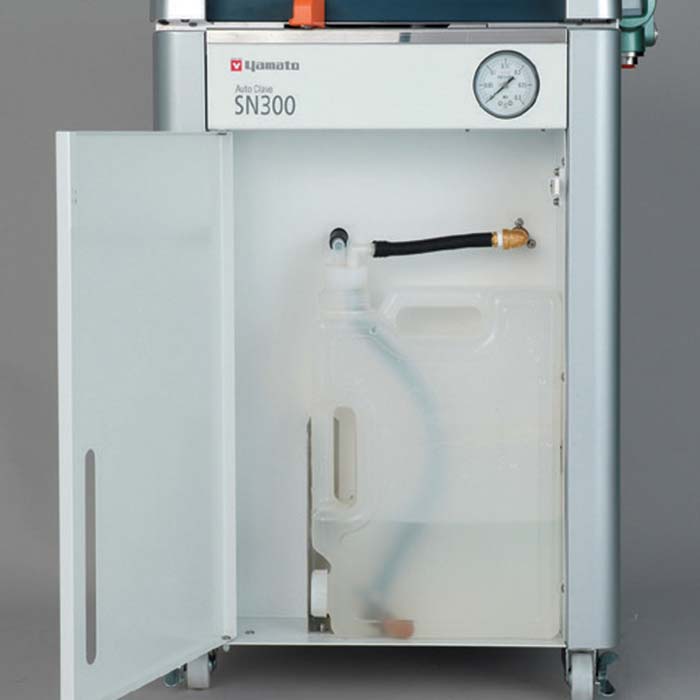

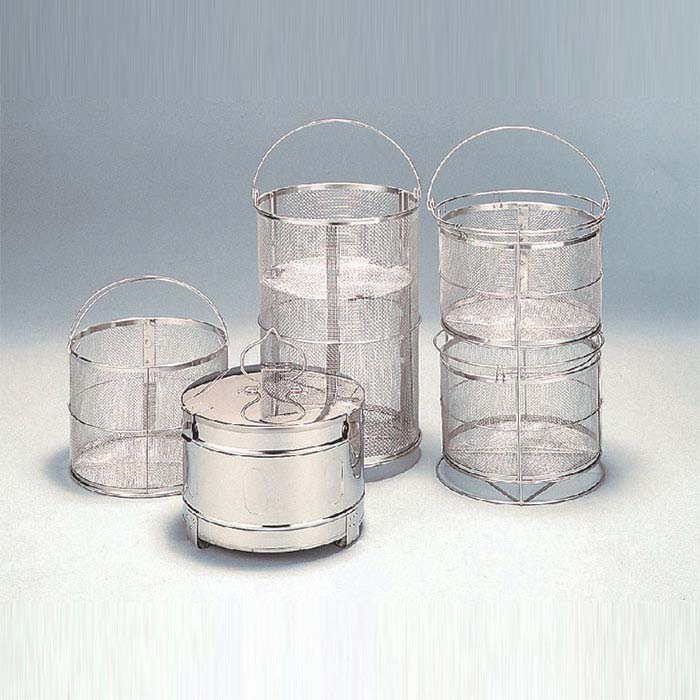

- Included Accessories: 2 or 3 stainless steel mesh baskets, drain board, drain bottle, chemical indicators, vapor cup

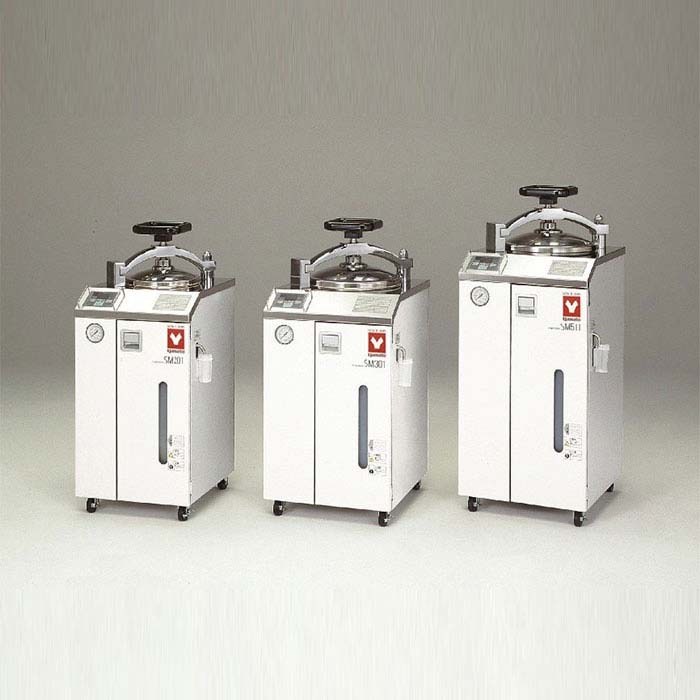

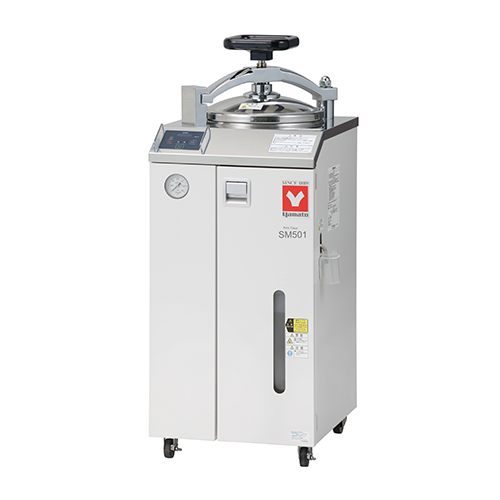

SM Series Models:

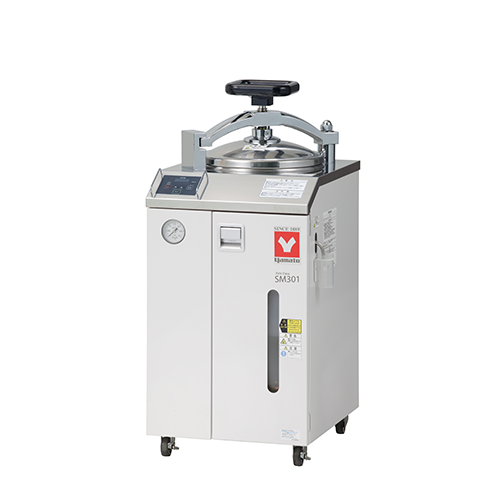

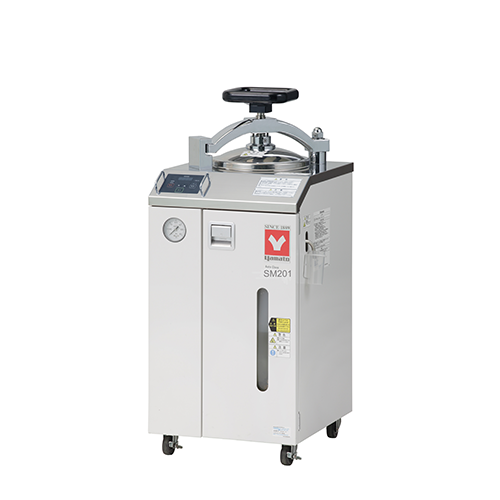

- Model: SM201 / SM211 / SM301 / SM311 / SM501 / SM511
- Capacity: 20L (SM201/SM211), 32L (SM301/SM311), 47L (SM501/SM511)
- Sterilization Temperature: 105–128°C
- Drying Temperature: 150–180°C
- Pressure: 0.18–0.2MPa (model dependent)

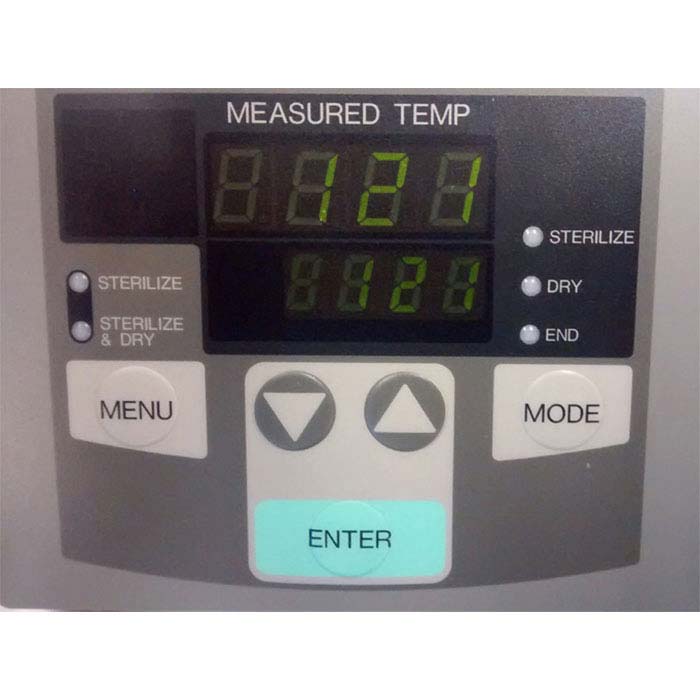

- Display: Green LED digital temperature and time readout
- Dryer Function: Built-in with adjustable control
- Safety Features: Sensor error detection, SSR short, heater fault, memory errors, drain bottle sensor, leak breaker

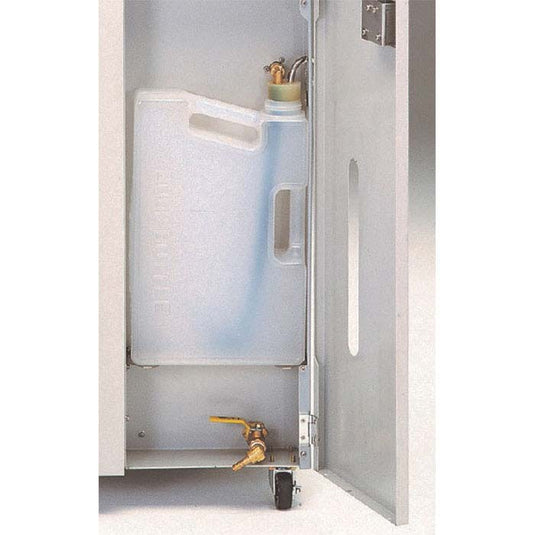

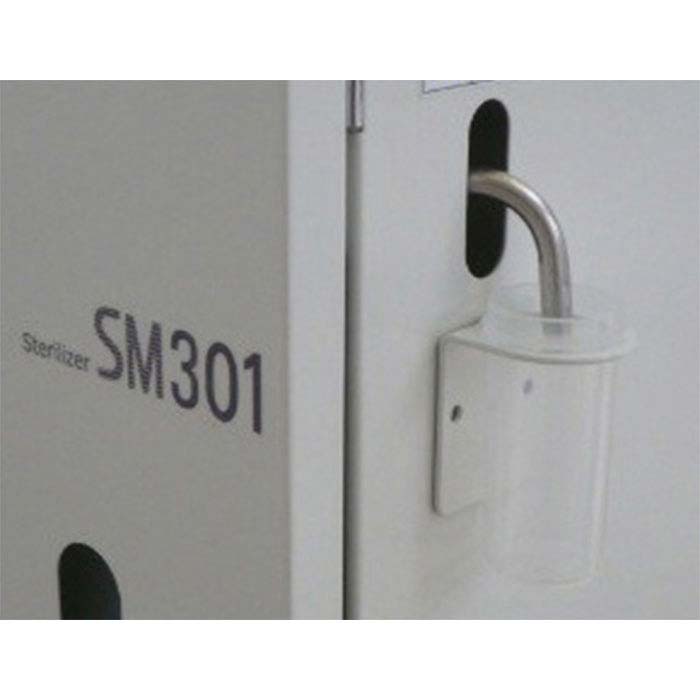

- Included Accessories: Stainless steel mesh baskets (size varies), condensation collection container, drain bottle, drain board
Why Choose the Yamato SN/SM Series?
- Reliable sterilization across a range of lab applications
- Selectable capacities to fit your lab space and throughput needs
- SN Series excels in cooling speed and chamber preheat efficiency
- SM Series offers integrated drying—ideal for labs needing ready-to-use samples post-cycle
- Engineered safety systems to protect both operator and samples
- 1-year manufacturer’s warranty with 40 years of trusted scientific expertise
