Yamato SQ and SQL Series Large Capacity Autoclaves are top-loading, high-performance steam sterilizers built to handle large sample loads efficiently and safely. With maximum sterilization temperatures of up to 135°C, rapid cooling fan systems, and intuitive programmable controls, these units are ideal for media preparation, sterilization of instruments and liquids, and melting culture media.

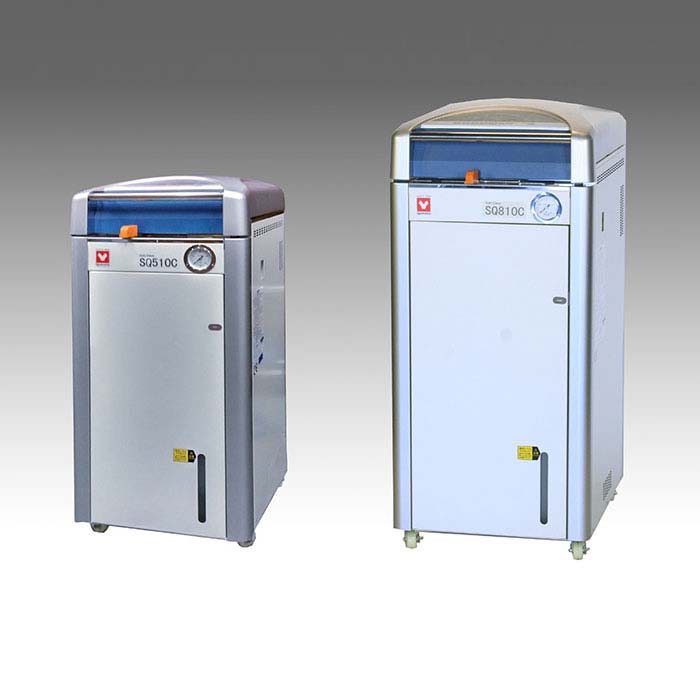

- Models: SQ500C, SQ510C, SQ810C, SQL1010C
Features:
- Max sterilization temperature up to 135°C, suitable for protein modification
- Ergonomic, top-loading design minimizes operator strain

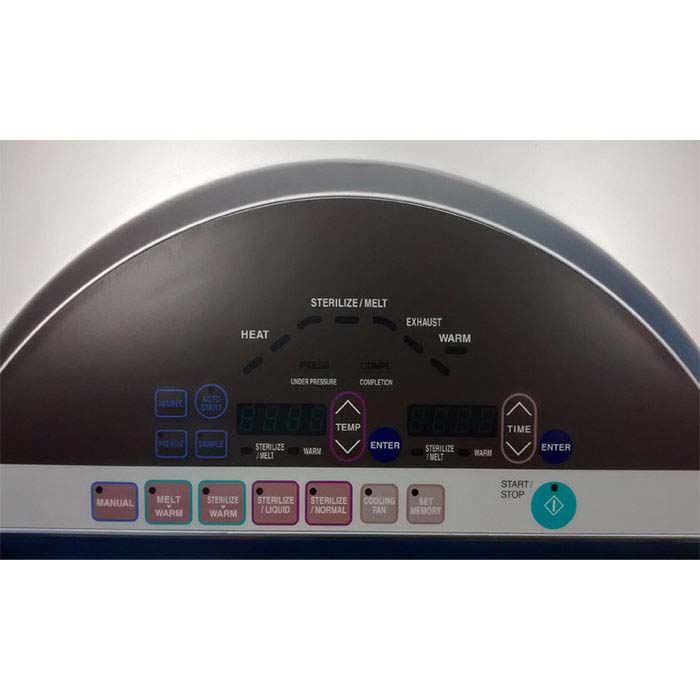

- Digital control system with programmable operation modes
- Standard timer start, preheating, and forced cooling features for faster processing
- Stores user-defined programs for repeated cycles at the push of a button
- Axial cooling fan system significantly reduces cool-down time
- Mounted on wheels for easy mobility in laboratory environments
Safety Features:
- Safety interlock lid mechanism
- Overheat and SSR short-circuit protection
- Alarm for missing drain bottle and memory errors
- Automatic shutoff in case of malfunction
- Self-diagnostic functions and pressure relief valve
Specifications
Performance:
- System: Automatic high-pressure steam sterilization
- Operating Temp. Range: 45–135°C
- Max Working Pressure: 0.255 MPa
- Controller: PID with microprocessor
-
Operation Modes:
- Instrument sterilization
- Liquid sterilization
- Sterilization & keep warm
- Melting & keep warm
- Custom user-programmed cycles
Chamber & Dimensions:
-

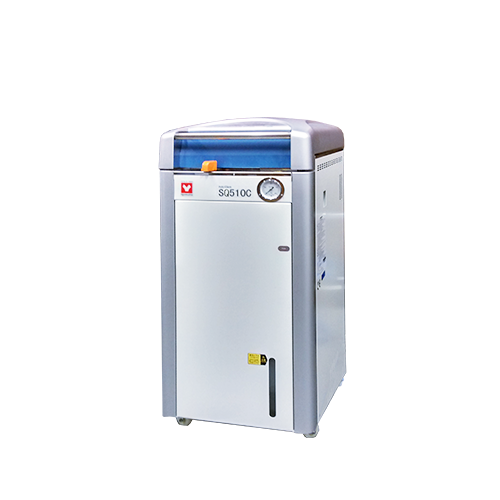

SQ500C / SQ510C:
- Chamber: Ø370 × D470 mm (50L)
- External: 520 × 660 × 881 mm (SQ500C), 1161 mm H (SQ510C)
- Weight: ~95kg / ~105kg
-

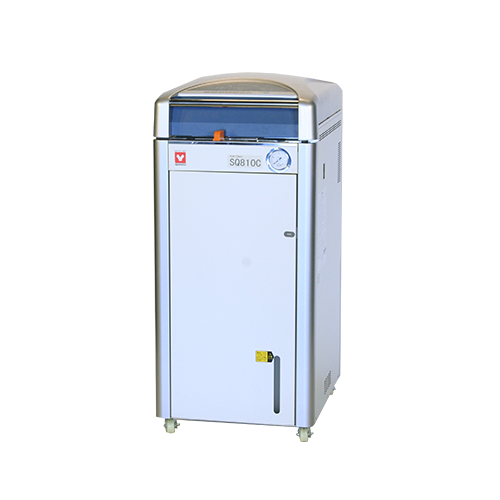

SQ810C:
- Chamber: Ø370 × D750 mm (80L)
- External: 520 × 660 × 1161 mm
- Weight: ~105kg
-
SQL1010C:
- Chamber: Ø450 × D692 mm (110L)
- External: 680 × 760 × 1154 mm
- Weight: ~170kg
Power & Controls:
-
Heater Output:
- SQ Series: 1000W × 2
- SQL1010C: 2000W × 2
- Cooling: Axial fan motor
- Timer: 0 or 1 min. to 99 hrs 59 min., 1-min resolution
-
Power Supply:
- SQ500C/510C: AC100–120V (24.5–20.5A) or AC200–240V (12.5–10.5A)
- SQ810C & SQL1010C: AC200–240V (12.5–10.5A / 19A)
- Connection Ports: Female thread (1/4") for temp sensor, pressure sensor, and optional recorder
Included Accessories

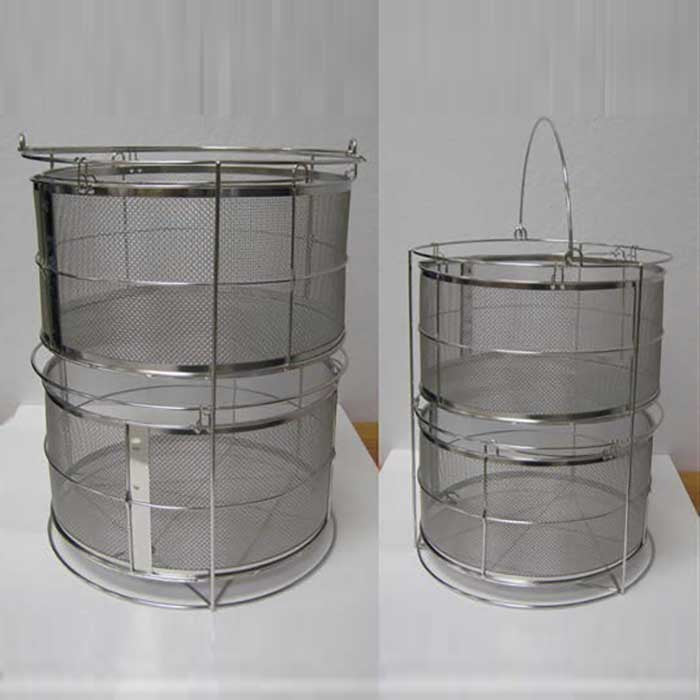

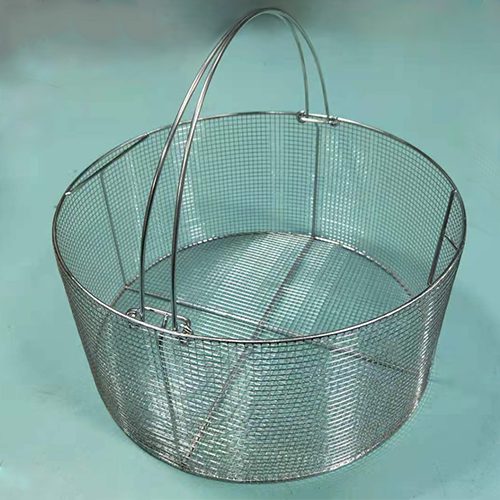

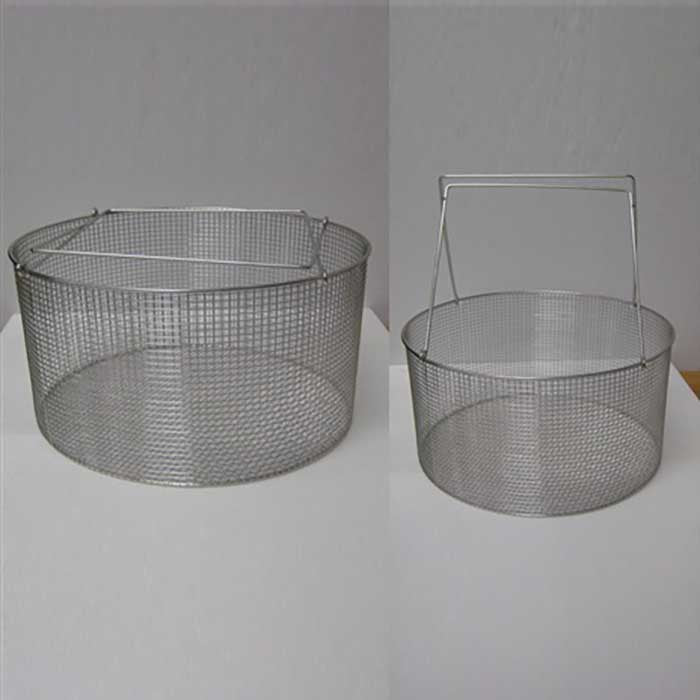

- Stainless steel mesh baskets:
- SQ Models: Ø344 × H200/300 mm (2 pcs)
- SQL1010C: Ø424 × H300 mm (2 pcs)
- Drain bottle, drain board, vapor cup
- Chemical indicator set (30 pcs)
- Filter (1 pc)
Why Choose the Yamato SQ & SQL Series?
- High-volume sterilization with temperature up to 135°C
- Faster cool-down with integrated fan system
- User-friendly design with programmable cycles and ergonomic loading
- Top-tier safety features for worry-free operation
- Ideal for media prep, liquids, instruments, and glassware
- 1-Year Manufacturer Warranty
- Supported by 40+ years of industry expertise
