Yamato UCF Series Undercounter & Countertop Freezers offer secure, energy-efficient cold storage in compact, space-saving designs ideal for labs, clinics, and medical offices. Ranging from -20°C to -40°C, these freezers are available in both basic and advanced configurations, including models with digital temperature control, data logging, and alarm relay functions.
Choose from four models to match your storage requirements and compliance needs:

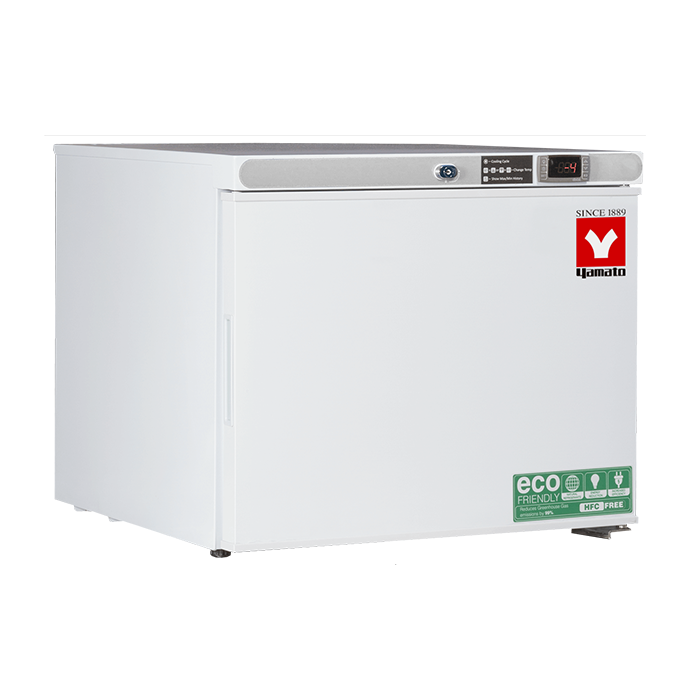

- UCF000 / UCF001 – Compact countertop units with essential features
- UCF101A – Advanced undercounter freezer with digital controls and USB logging

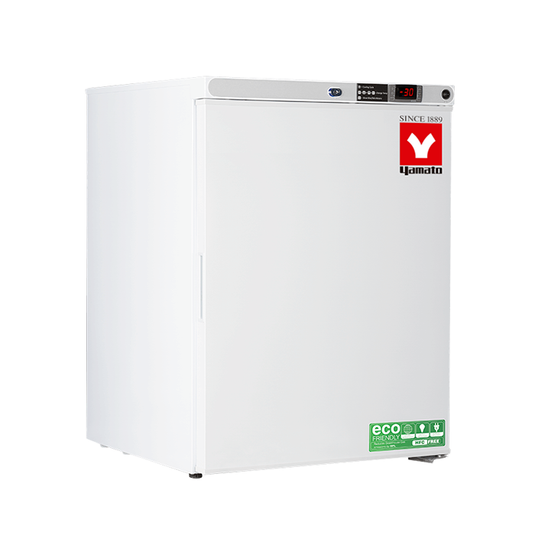

- UCF101B – Expanded temp. range model down to -40°C with full alarm and data system
Features:
- Compact footprint for benchtop or undercounter use
- Temperature range: -20°C to -40°C depending on model
- Energy-efficient operation with low running amps
- High/Low temperature alarm (UCF001 / UCF101A / UCF101B)
- Security door with lock and key
- Digital display with min/max memory (UCF001 and up)
- Optional accessories include chart recorder and cold safety gloves
- CFC & HCFC free refrigerants (R600a or R290)
Specifications
| Model | Capacity | Temp. Range | Control | Alarm | Logging | Internal Dimensions (W×D×H) | External Dimensions (W×D×H) |
|---|---|---|---|---|---|---|---|
| UCF000 | 42L / 1.5 cu.ft. | -20°C | Mechanical Dial | None | No | 14”×13.25”×14.5” | 18.5”×19.5”×19.5” |
| UCF001 | 48L / 1.7 cu.ft. | -15°C to -25°C | Digital | Hi/Low Temp, Door Ajar, Power Fail | No | 17.75”×13.75”×16” | 28.75”×24”×20.5” |
| UCF101A | 90L / 3.2 cu.ft. | -10°C to -25°C | Digital | Yes | Yes, USB PDF | 19.5”×15.75”×22” | 23.75”×21.5”×32” |
| UCF101B | 90L / 3.2 cu.ft. | -20°C to -40°C | Digital | Yes | Yes, USB PDF | 20”×19.5”×24.25” | 24”×24”×33” |
Additional Specifications:
- Insulation: Urethane foam, US EPA & SNAP approved
- Compressor: Hermetic
- Defrost: Manual
- Interior: Painted aluminum or steel (model-dependent)
- Voltage: 115V, 60Hz, 1 phase
- Running Amps: 1.1A–4.19A (varies by model)
- Certifications: UL listed (UCF001 / UCF101 series)
- Optional Accessories: Chart recorder, cold safety gloves
Why Choose the UCF Series?
- Perfect for clinics, research labs, medical offices
- Reliable storage for temperature-sensitive materials
- Space-efficient undercounter or benchtop designs
- Modern alarms and data logging support lab compliance
