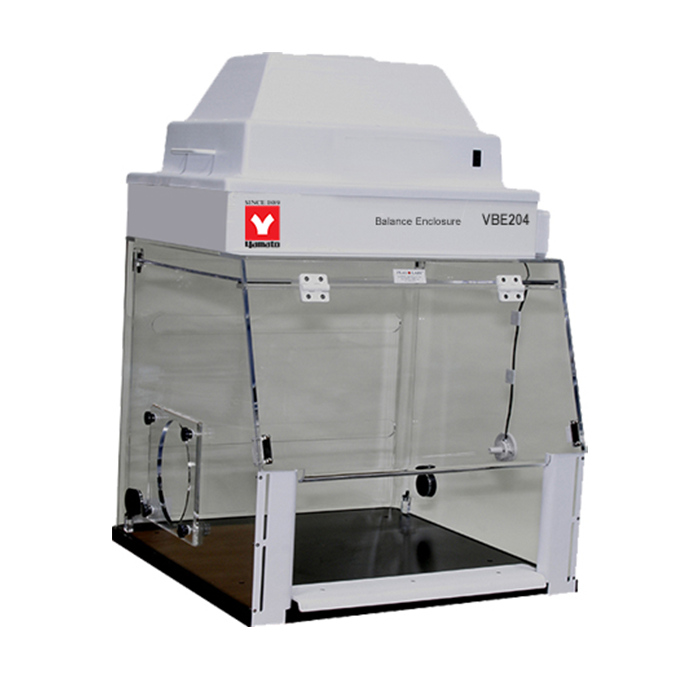

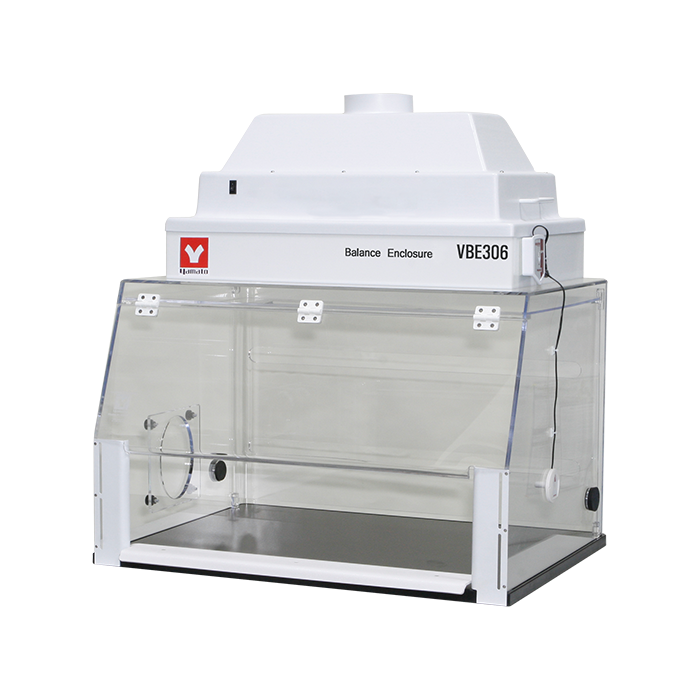

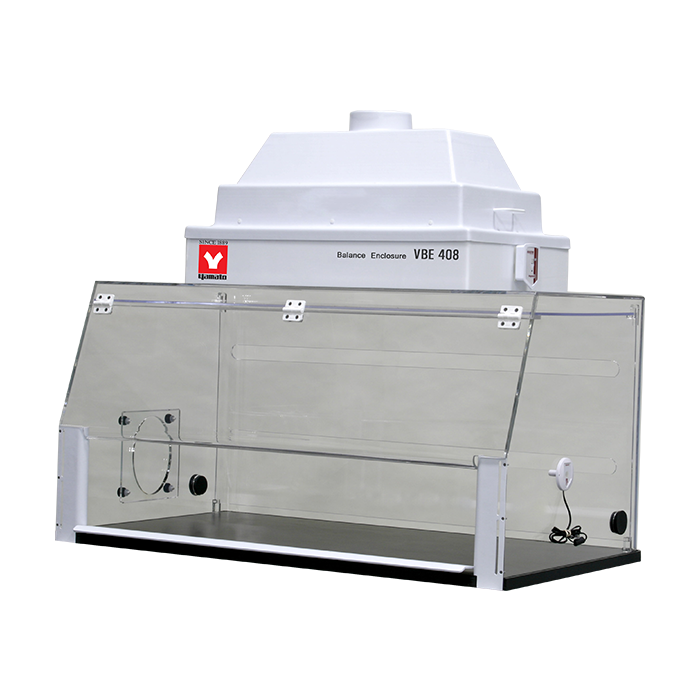

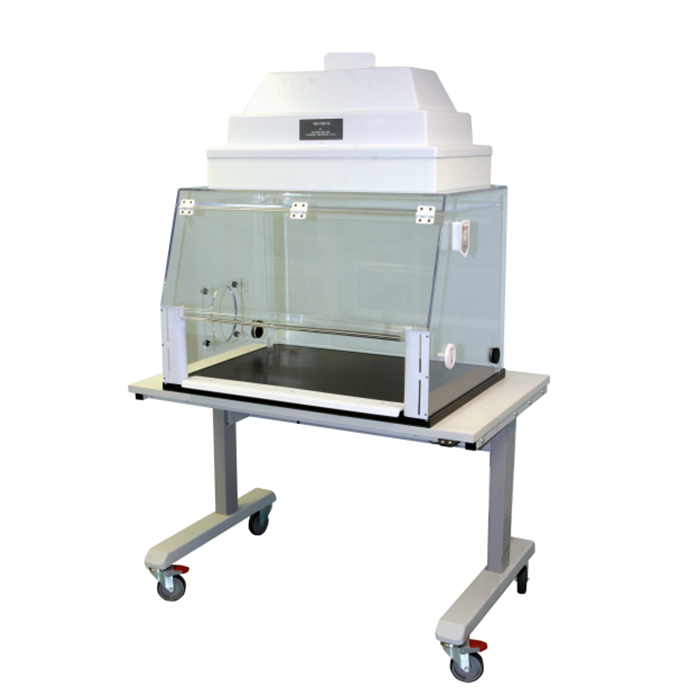

Yamato Vented Balance Enclosures
Models: VBE204/214, VBE306/316, VBE408/418, VBE600/610
Yamato VBE Series Vented Balance Enclosures are self-contained benchtop ventilation systems engineered for safely handling fine powders, toxic chemicals, and biohazardous materials. Built for precision and safety, these units provide reliable containment while minimizing vibration and maximizing balance stability.
Key Features:
- Top-mounted HEPA/blower filtration system with recirculation to lab
- Low-vibration phenolic base for enhanced balance stability and powder detection
- Rounded ABS™ airfoils direct smooth, unobstructed airflow
- Optically clear 3/8” jeweled acrylic construction for full visibility
- Adjustable front draft protection and air flow alarm system
- Face velocity alarm for added safety

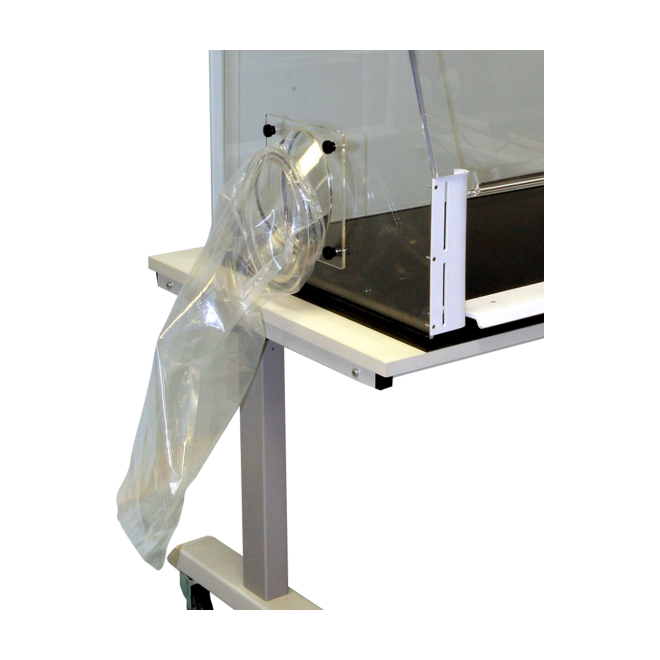

- Bag-In/Bag-Out (BIBO) port support via side blank panel
- Electrical cord outlet included for integrated instrumentation
Applications:
Perfect for weighing sensitive powders, handling hazardous materials, compounding in pharmacies, and use in analytical chemistry and life science research environments.
Custom Enclosure Solutions
Need a specific configuration? Yamato offers custom VBE enclosures tailored to your application. Contact us to discuss modifications like size, filtration, or utility access ports.
Technical Specifications
| Model | Internal Work Surface (WxDxH) | External Dimensions (WxDxH) |
|---|---|---|
| VBE204 / VBE214 | 24" x 23" x 21.5" (609 x 584 x 546 mm) |
26" x 26.75" x 41" (660 x 679 x 1041 mm) |
| VBE306 / VBE316 | 35.25" x 23" x 21.5" (895 x 584 x 546 mm) |
36.5" x 26.75" x 41" (927 x 679 x 1041 mm) |
| VBE408 / VBE418 | 47.25" x 23" x 21.5" (1200 x 584 x 546 mm) |
48.5" x 26.75" x 41" (1232 x 679 x 1041 mm) |
| VBE600 / VBE610 | 59.25" x 23" x 21.5" (1505 x 584 x 546 mm) |
60.5" x 26.75" x 41" (1537 x 679 x 1041 mm) |
Safety & Certifications:
- Face velocity and airflow monitoring
- Draft shield deflection system
- Phenolic base for chemical and thermal resistance
Backed by over 40 years of scientific equipment innovation. Every unit includes a 1-year manufacturer warranty and is built using eco-conscious, sustainable processes.
